Getting Started
CHOOSING A LOCATION
1. This phone requires a modular phone
jack (RJ11C) and a standard 120V
AC wall outlet.
2. Plug the AC Adapter directly
into outlet.
3. Do not plug other appliances into the
same outlet or have outlet controlled
by a wall switch.
4. Choose a location that is out of the
way of normal activities.
CAUTION: USE ONLY WITH CLASS 2
POWER SOURCE 9V DC, 400MA.
Always connect the AC Adapter to the
phone before you connect it to the AC
power. When you finish, disconnect the
AC power before you disconnect it from
the phone.
INSTALLATION
Connecting Your Telephone
Carefully remove your cordless telephone
from it’s box. If there is any visible damage,
do not attempt to operate this equipment.
Return it to the place of purchase.
Check to be sure that you have all items that
come with your telephone. You should have
a HANDSET, BASE UNIT, AC ADAPTER, TELE-
PHONE LINE CORD, BELT CLIP AND OWNERS
MANUAL. A BATTERY is also included and is
located in the battery compartment.
If at any time you have questions about your
telephone please contact our Customer
Service Department at: 1-800-552-3368 or
423-622-7793.
Table/Desktop Installation
1. Plug one end of the supplied modular
telephone line cord into the jack marked
TEL located on the back of the telephone
base as shown in Diagram A.
2. Plug the modular telephone line cord’s
other end into a modular phone jack.
3. Insert the supplied AC Adapter’s plug into
the jack marked 9V DC 400mA located
on the back of the telephone base.
4. Plug the adapter into a standard
120V AC power (electrical) outlet.
5. Lift the base’s antenna to a
vertical position.
8
PULSE/TONE BOOST ON/OFF
TEL 9VDC
500mA
USE ONLY WITH CLASS TWO
POWER SOURCE

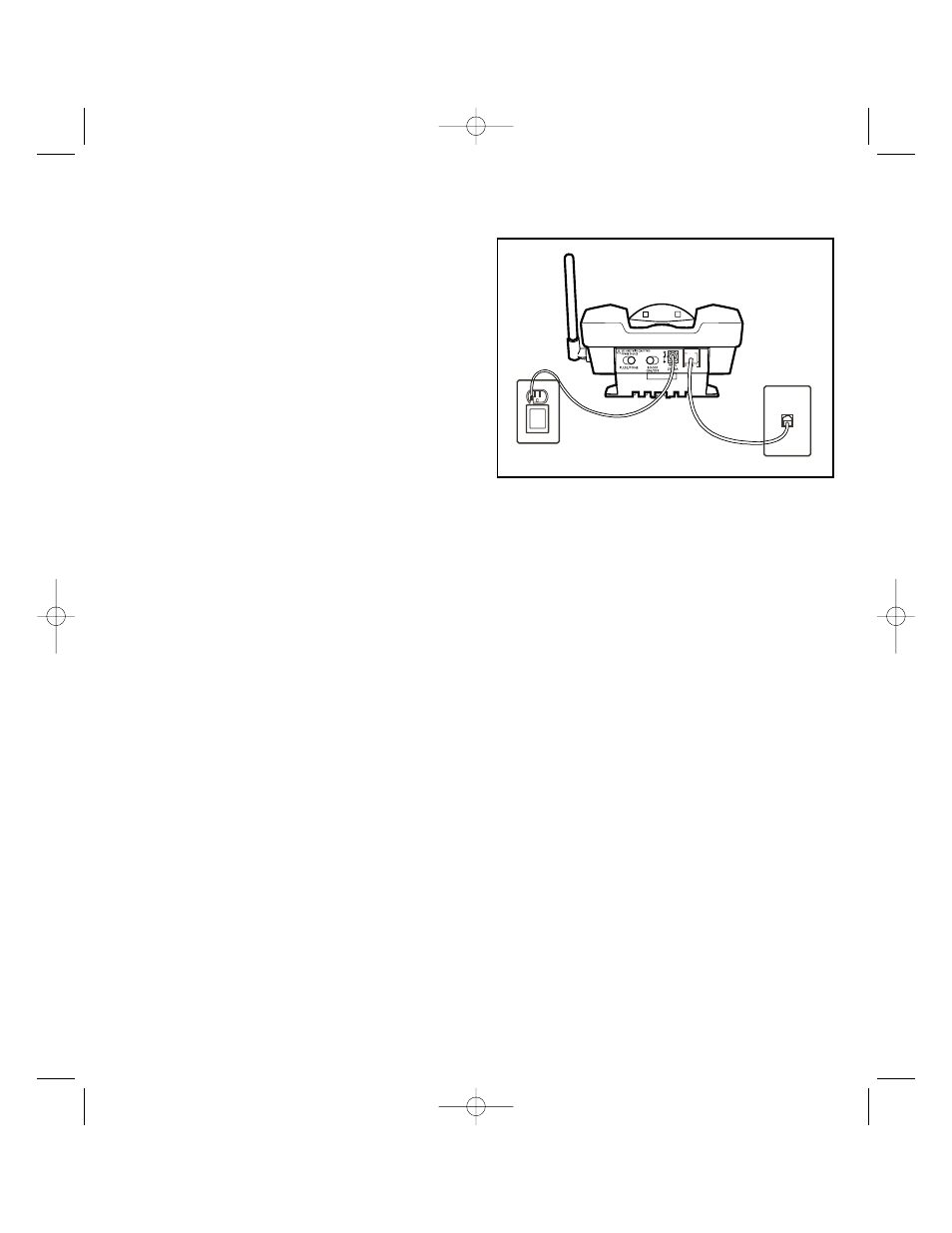

Diagram A: Table/Desktop Installation
