HXJZ-871 Mini Power Wireless Module User’s Manual

such as transmission/receiving conversion in the air, control, etc.

9. High reliability, small and light

Single chip radio frequency integrated circuit and single chip MCU are used for lessened

peripheral circuits, high reliability, and low failure rate.

10. Low power consumption, two kinds of sleep mode.

Receiving current <30mA, transmitting current <100mA;

Sleeping mode (The user’s should asked for it):

a. Awaken from Hardware

b. Awaken from Interface.

The user can set it according to the software.

10. Watchdog monitor

Watchdog monitors the inner function, so it can change the traditional product structure and improve the

product reliability.

11. Antenna choose

Users can choose the antenna according to user’s different need .

Application of HXJZ-871

1.

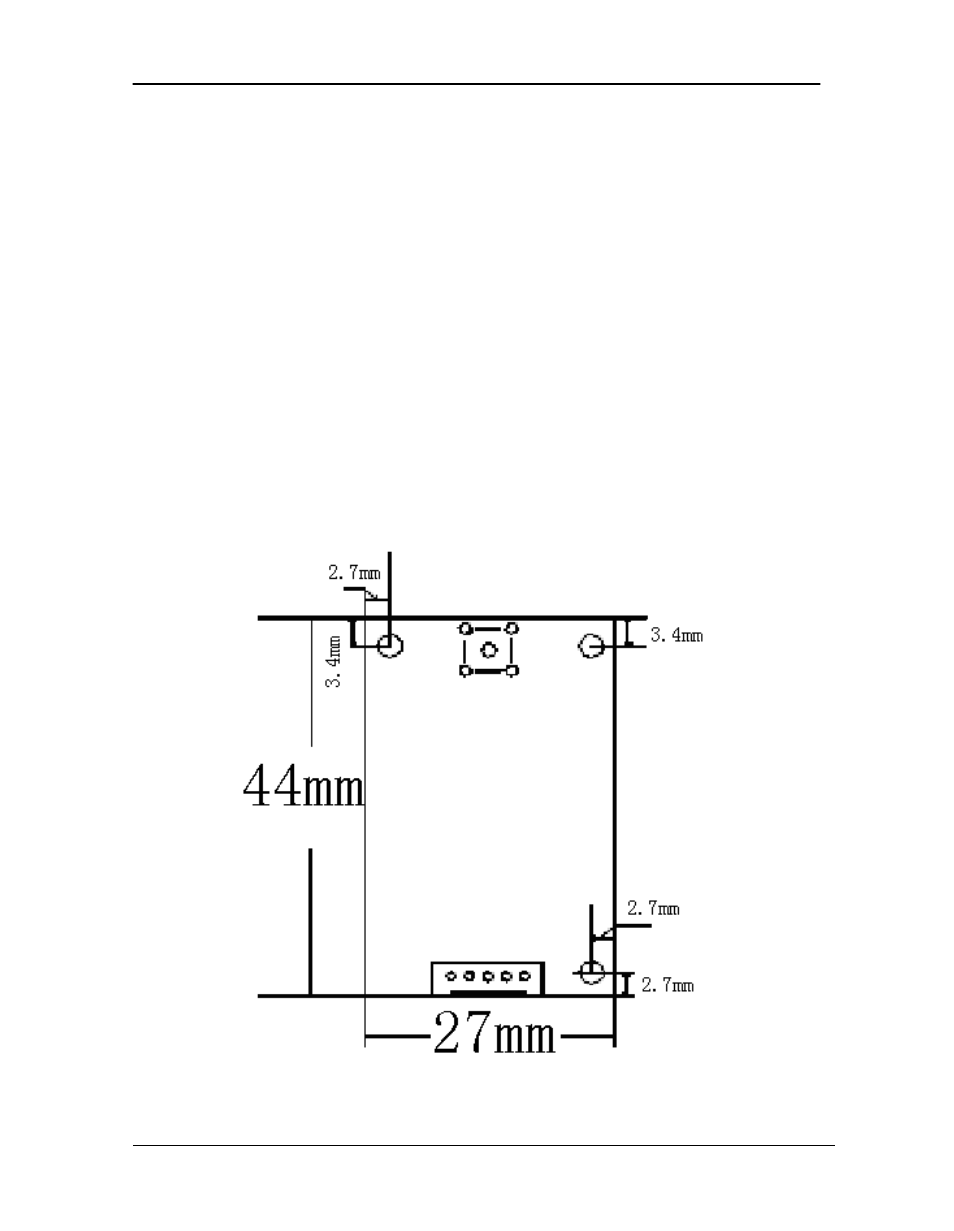

Dimensional drawing

Fig1. HXJZ-871 interface

chart
