HXJZ-862 Mini Power Wireless Module User’s Manual
8.High speed wireless communications and big data buffe r.
When the airborne speed is bigger than the serial port speed, may transmit infinitely data continuously, and
when the airborne speed is smaller than or was equal to the serial port speed ,may transmit 255 bytes data.
9. Intelligent data control and the user doesn’t need to prepare excessive programs
Even for semi duplex communication, the user doesn’t need to prepare excessive
programs, only receiving/transmitting the data from the interface. HXJZ-862 will automatically
complete the other operations, such as transmission/receiving conversion in the air, control, etc.
10. High reliability, small and light
Single chip radio- frequency integrated circuit and single chip MCU are used for lessened
peripheral circuits, high reliability, and low failure rate.
11. Watchdog monitor
Watchdog monitors the inner function, so that change the traditional product structure and
improve the product reliability.
12. Antenna choose
Users can choose various antennas setting project and antenna according to the user’s different request.
13. Encapsulation Structure, dustproof, waterproof and static proof
Comprised by plastic DOS shell, epoxy encapsulation, dustproof, waterproof and static
proof good anti-jamming.
Application of HXJZ-862
1. The definition of HXJZ-862’s Interface
HXJZ-862 provide TTL level UART, RS-232, RS-485 Interface, User must specify the interface when
you place an order.

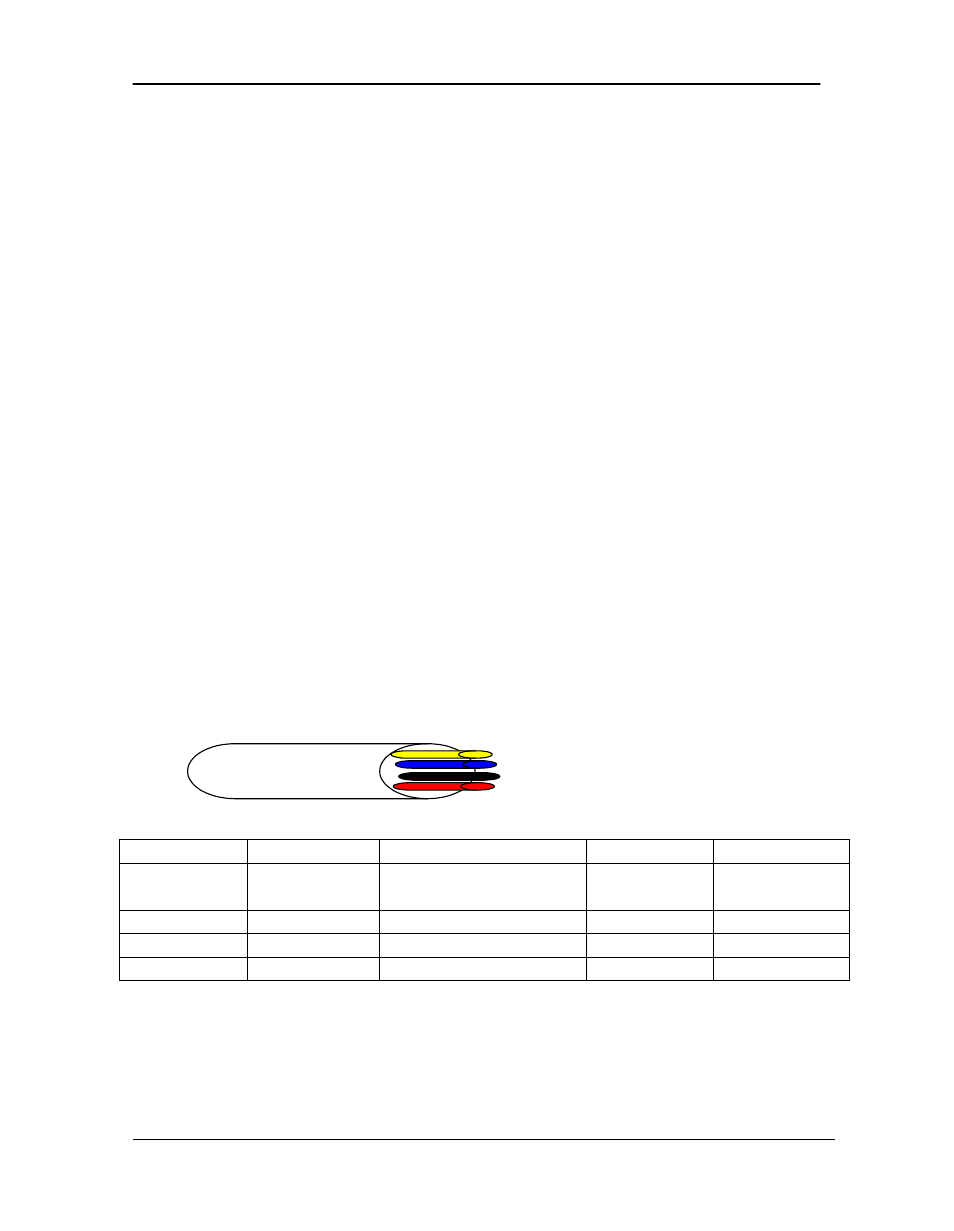

HXJZ-862 educe pipe, the pipe contain four line：
Line PIN Description User terminal Remarks
Red Line VCC Power: +5±0.5V +5±0.5V TTL 3V user’s
choose
Black Line GND Power supply/Ground DGND/AGND
Blue Line RXD/RS-485(B) Serial data receiving end TXD/RS-485(B)
Yellow Line TXD/RS-485(A) Serial data transmitting end RXD/RS-485(A)
