OFNA Racing GTP Conversion Kit - Manual (Page 2)

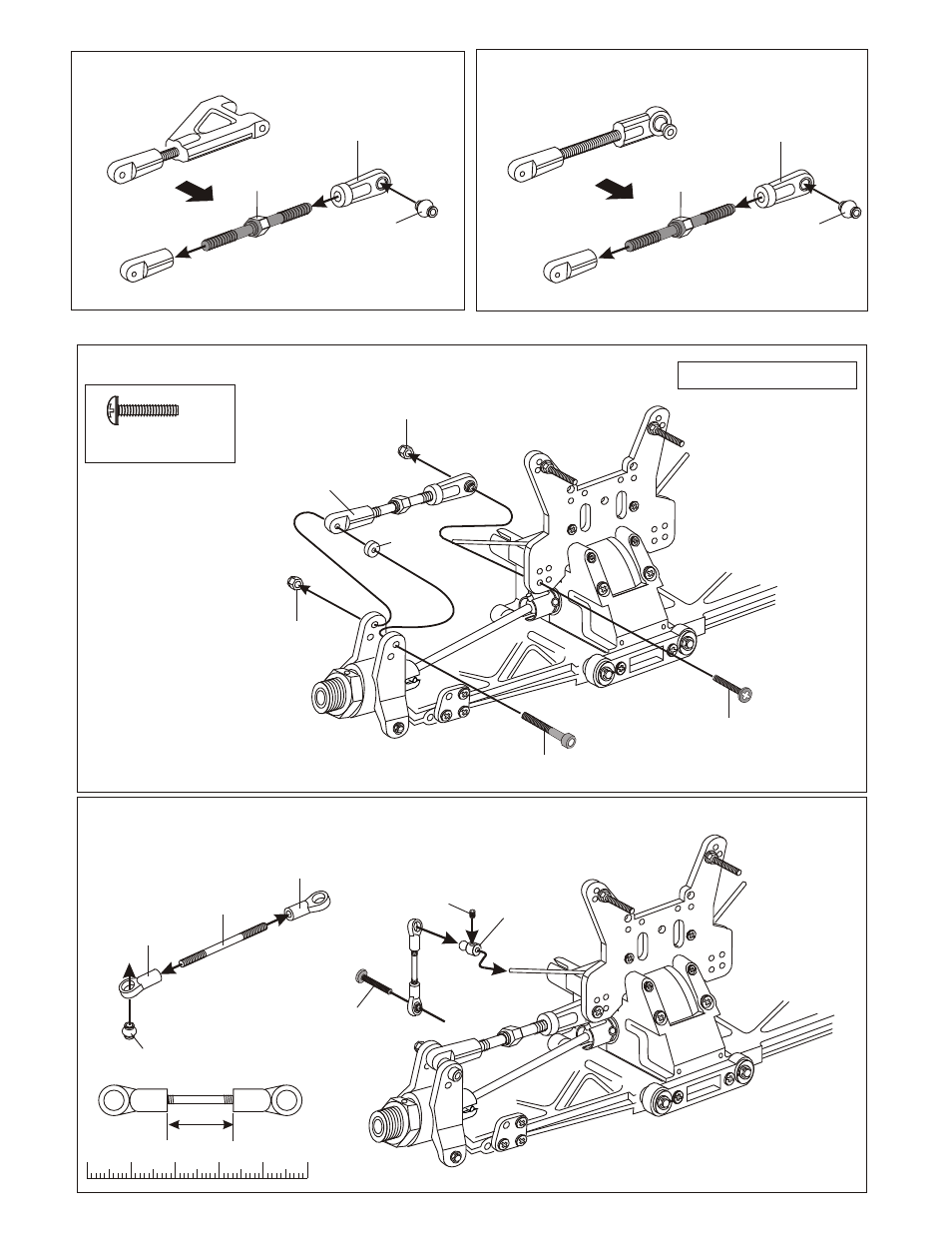

ASSEMBLY OF THE UPPER ARM ONTO THE GEAR BOX
For"Ultra GT LX", option
For Hodr,. Blazer SST.,Blazer Monster, option
Assembly of the right and left hand side
are the same.
* Builds two upper arms for left
and right hand-side.
36690
7mm Plastic
Arm Ball End
36880
5x60mm
Turnbuckle
36850
7mm Ball
* Builds two upper arms for left
and right hand-side.
36690
7mm Plastic
Arm Ball End
36880
5x60mm
Turnbuckle
36850
7mm Ball
3 x 25mm
Cap Screw
3 x 15mm
Screw
M3
Nylon
Lock Nut
M3
Nylon
Lock Nut
* Insert 30320 drive shaft
before installing arms.
* Insert into rear hub.
4mm
Plastic Washer
ASSEMBLY OF THE STABILIZER ROD
3 x 15mm Screw
30402
3 X 30mm
Tie Rod
30403
6mm
Ball Joint
30401
6mm
Stabilizer
Ball End
30401
6mm
Stabilizer
Ball End
3 x 15mm
Screw
3 x 3mm
Set Screw
30340
6mm
Stabilizer
Ball End
0 10 20 30 40 50
mm
15mm
