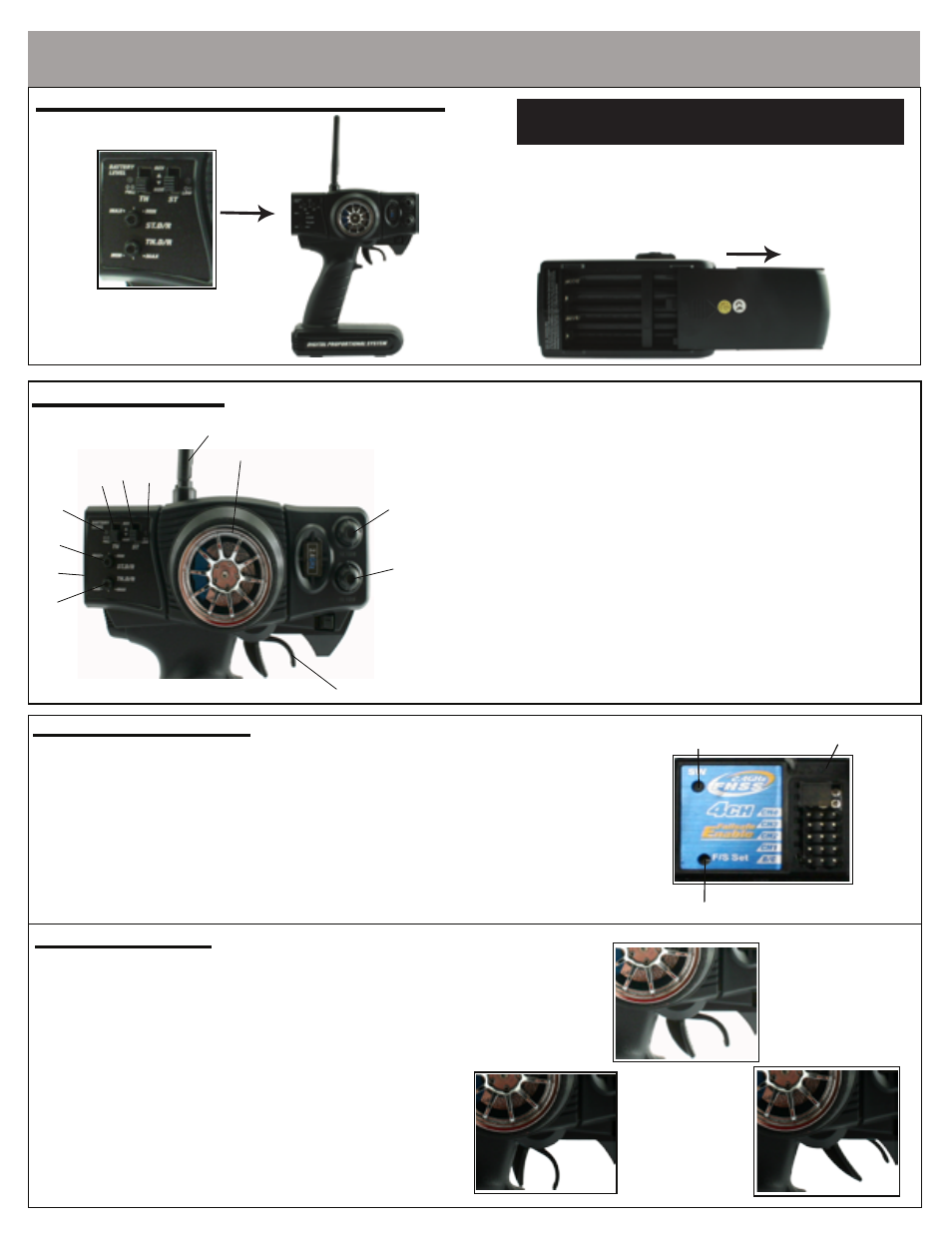

2.4Ghz RADIO INSTRUCTION MANUAL
•INSTALLING BATTERIES TO THE TRANSMITTER
(1)Remove the battery cover from the transmitter by
sliding it in the direction of the arrow in the figure.
(2)Load the new AA size batteries. Pay very close attention
To the polarity markings and reinsert accordingly.
(3)Slide the battery cover back onto the radio.
•SWITCH FUNCTIONS
1. Antenna
2. Steering Trim
3. Throttle Trim
4. Throttle Trigger
5. Throttle End Point
6. Power Switch
1
10
3
2
5
4
6
7
8
9
11
12
7. Steering Dual Rate
8. Battery indicator LED
9. Throttle Reversing Switch
10. Steering Reversing Switch
11. Power indicator LED
12. Steering Wheel
•BINDING RADIO TO VEHICLE
When the Power Indicator LED (see below) #8 is blinkingand
a beep sound coming from the radio, it is time to change battery
1. First plug your battery in.
2. Turn on RX, the LED will flash slowly.
3. Press the “Binding button” LED should
be flashing faster now.
4. Turn on the Transmitter.
5. You should hear “DO RE ME” from the RX.
6. Check your steering and throttle your TX is now linked
to your vehicle
LED Binding button
Failsafe button
•SETTING THE FAILSAFE
1. First plug your battery in.
2. Turn on the RX, the LED should flash slowly and beep.
3. Turn on the Transmitter (TX), the LED should be solid
(NO FLASH) and “DO RE ME” should sound.
4. Press the “F/S Set” button see picture above.
5. The LED should be flashing very fast.
6.
NEUTRAL
FORWARD BRAKE/REVERSE
Leave your Throttle trigger at Neutral and press the
“F/S Set” button. The LED should be solid now, your
failsafe is set.
