Assembly of radio tray, Equipmentl – OFNA Racing Hyper Mini ST User Manual
Page 19
48

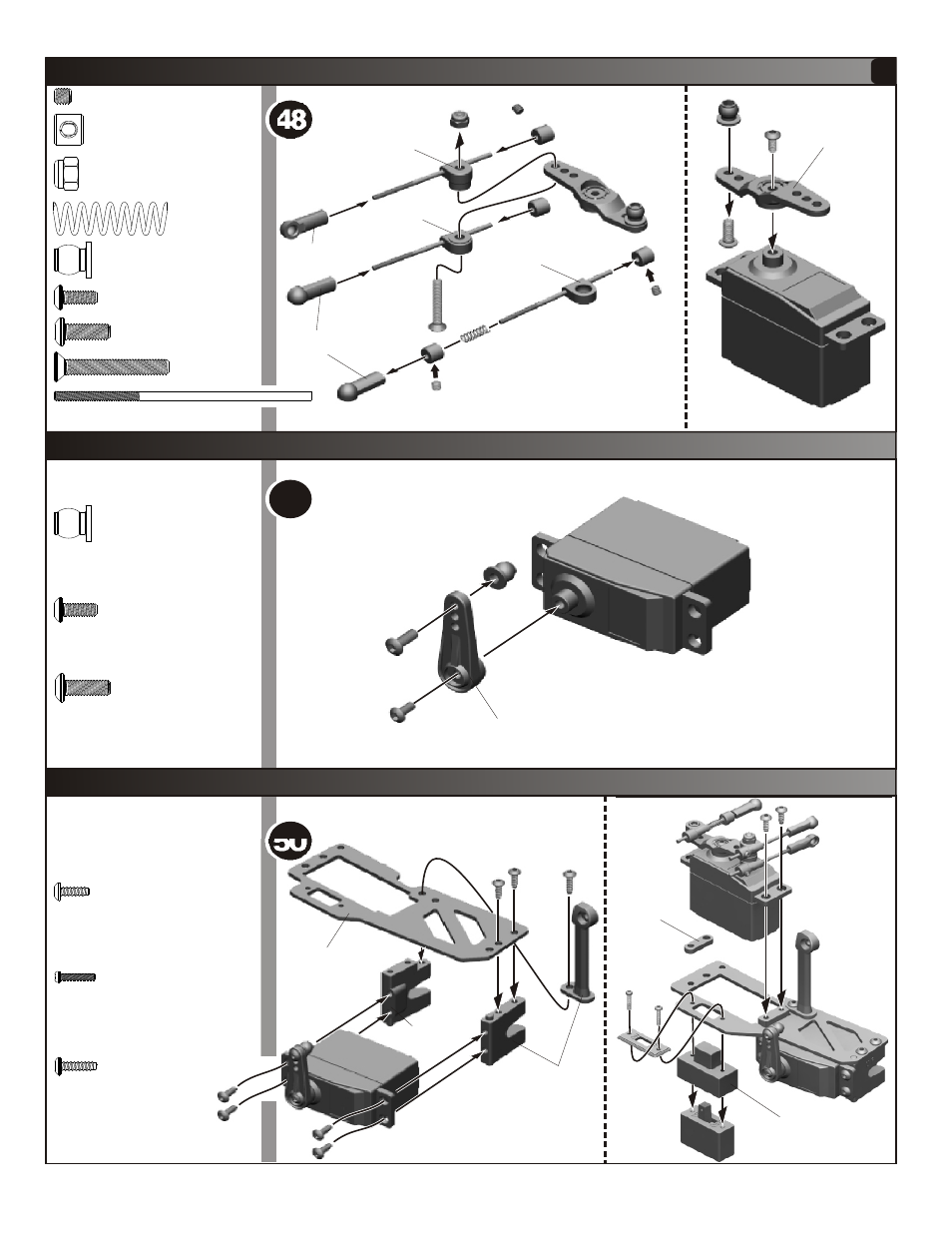

Assembly of Radio Tray
Assembly of Radio Tray
50
49
Equipmentl
Equipmentl
Assembly of Throttle Linkage into Lever
Assembly of Throttle Linkage into Lever
18
21047
21049
21049
21049
21049
21049
21049
21049
21049
21050
94033
M3X3mm
Set screw
Stopper
11281 x1
Nut
11281 x3
Throttle spring
22012x4
Ball end
21056 x3
M2.5x6mm
Screw
21056 x3
M3x8mm
Screw
21056 x3
M3x20mm
Screw
11281 x3
Throttle rod
22012x4
Ball end
21056 x3
M2.5x6mm
Screw
21056 x3
M3x8mm
Screw
21056 x3
M3x8mm
TP screw
21056 x3
M2x10mm
Screw
21056 x3
M3x10mm
TP screw
Servo horn
Throttle ball end
21050
Throttle ball end
Collar
Collar
Collar
Servo horn
Alum radio tray
Servo mount
Servo mount
10282
