OFNA Racing Hyper Mini ST - Manual (Page 16)

39

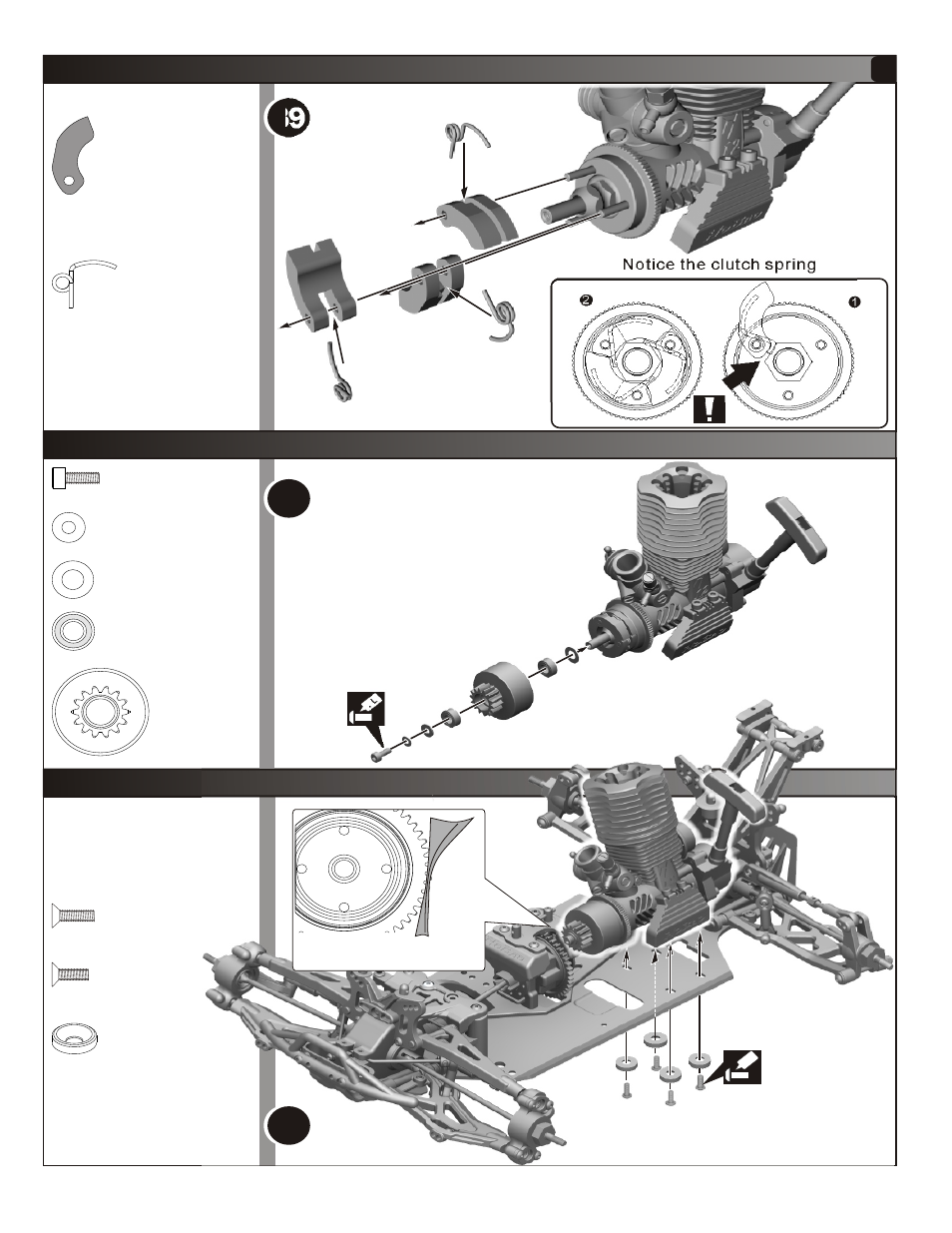

Assembly of Engine onto Chassis Assembly of Engine onto Chassis
41
40
*The fitting is in good position
if there is a clear gear-teething
mark on the paper after sliding out.
*The fitting is in good position
if there is a clear gear-teething
mark on the paper after sliding out.
Notice the clutch spring
1 2
T
L
T
L
Assembly of Clutch-Step-2 Assembly of Clutch-Step-2
Assembly of Clutch-Step-1 Assembly of Clutch-Step-1 15
T
L
T
L
21054 x2
M3x8mm
F/H screw
21054 x2
M3x6mm
F/H screw
21054 x4
M3
ALU.washer
10010 x3
Clutch shoe
10102 x3
Clutch spring
21055 x1
Clutch bell-14T
10099x1
M3x8mm
Cap screw
10099x1
3.1x6mm
Washer
10099 x2
5x8mm
Washer
18077x2
5x10mm
Bearing
