No.11 – OFNA Racing DM-1 Pro User Manual

Page 24

Step 1

Step 2

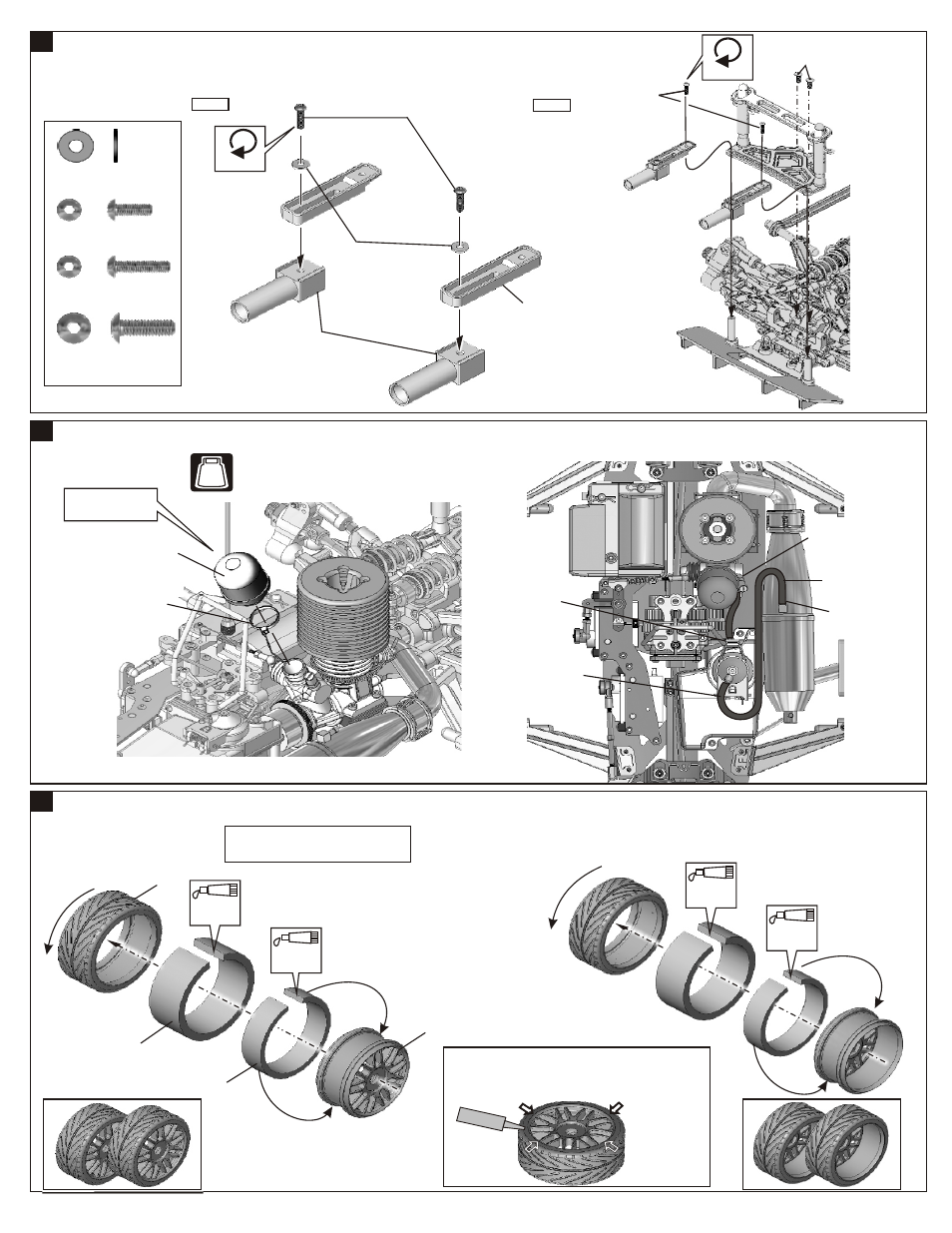

ASSEMBLY OF THE REAR EXHAUST PIPE DETAILS

ASSEMBLY OF THE TIRES AND WHEELS

ASSEMBLY OF THE AIR FILTER

38400
Air Filter

86023
Wheel

40735
Muffler

86059
Inner Sponge
(WidE)

86052
Tire

94002
3x8mm
Hex Screw

.....x2

94010
4x12mm
Hex Screw

.....x2

.....x1

94040
3x8mm
Washer

3x8mm
Hex Screw

3x8mm
Washer

4x10mm
Hex Screw

3x12mm
Hex Screw

Nylon Strap

86059
Inner Sponge
(Narrow)

*Notice the direction and make two lift and
right hand side tires are the same.
*Check the rotation direction before gluing.

40735
Muffler Mount

NO.11

BAG

94004
3x12mm
Hex Screw

.....x2

*Notice the direction
of the tires.

NST

Tighten

(Right Hand Side)

(Left Hand Side)

10179
Fuel Tube

Connect to
pressure nipple.

Connect to fuel tank
pressure nipple.

Connect to carburetor.

Connect to
fuel tank.

Contact
Adhesive

*Notice the direction of the tires. Make two
the same for the left and 2 for the right.
Check the rotation direction before gluing.

*Pull back the tire bead slightly and spot glue in four spots as
shown. When dry, glue the rest of the wheel between the spots.
Repeat the procedure on the other side of the wheel until fully
glued.

*Apply filter oil to the
foam before use.
