The numbers in parentheses indicate the pages where each item is explained.
.
Camera

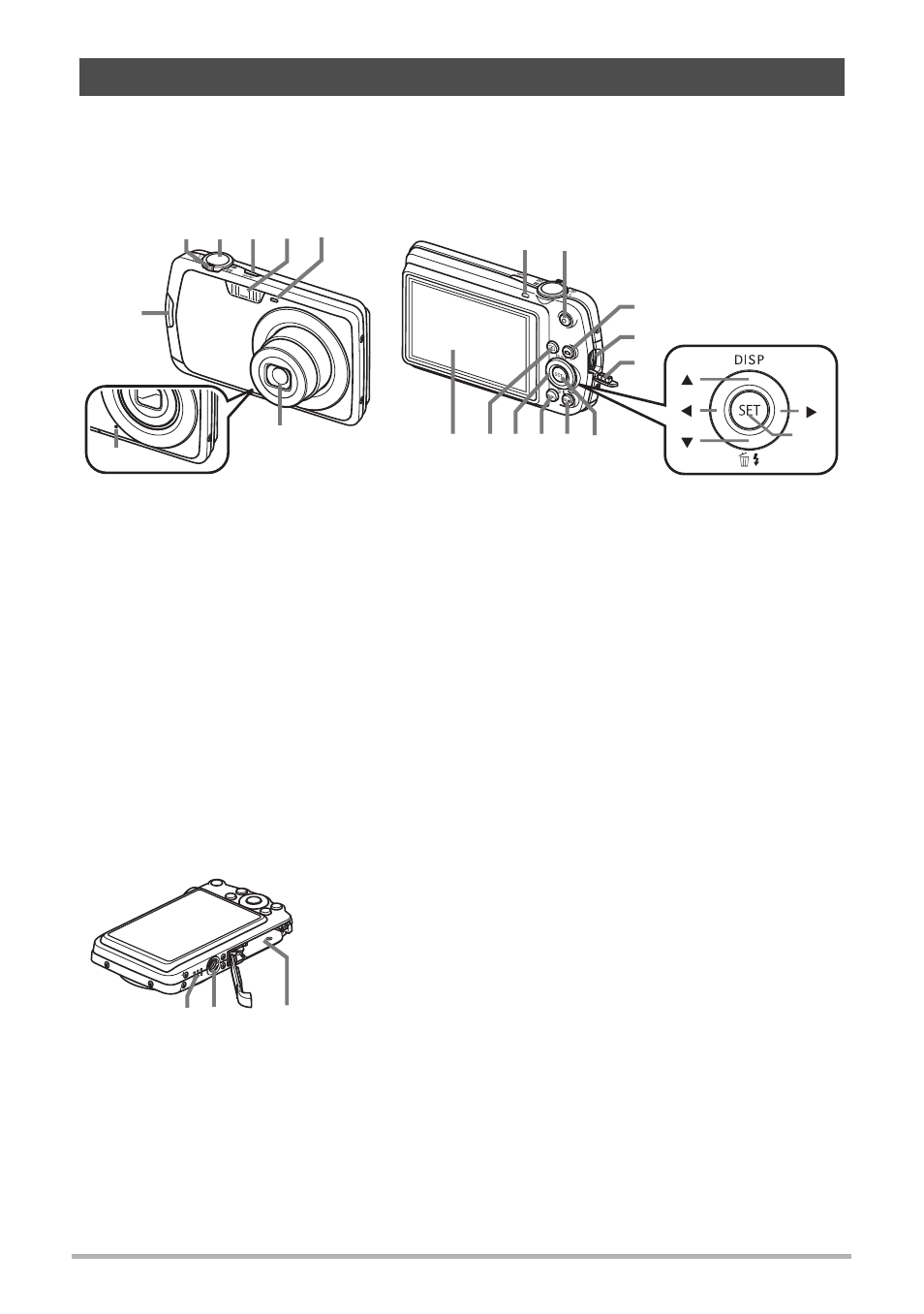

General Guide
1 Zoom controller
(pages 25, 47, 91, 92)
2 Shutter button (page 25)
3 [ON/OFF] (Power)
(page 23)
4 Flash (page 36)
5 Front lamp
(pages 24, 38)
6 Lens
7 Microphone
(pages 51, 109)
8 Strap hole (page 2)
ck Battery/memory card slots (pages 18, 21, 160, 161)
cl Tripod hole
Use this hole when attaching to a tripod.
cm Speaker
6
8
4 5 3 2 1
7
bk 9
bl
bm
bn
bp bq br bs bt bo
[ ]
[ ]
[ ]
[ ]
[SET]
Front Back
ck cl cm
Bottom
9 Back lamp
(pages 23, 26, 36)
bk [0] (movie) button
(page 50)
bl [r] (REC) button
(pages 23, 25)
bm USB/AV port (pages
93, 117, 125, 134)
bn Connector cover
bo [SET] button (page 31)
bp [BS] button (page 55)
bq [MENU] button
(page 64)
br Control button
([8] [2] [4] [6])
(pages 29, 31, 36, 64,
150)
bs [p] (PLAY) button
(pages 23, 28)
bt Monitor screen
(pages 11, 150)
