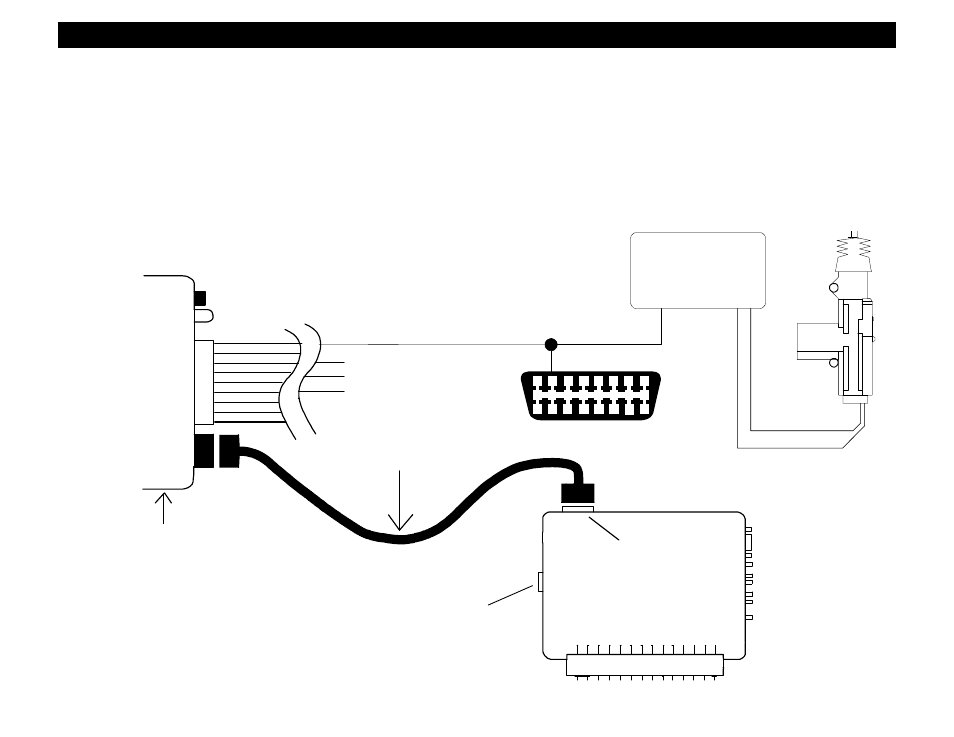

DATA PORT DIAGRAM
Data bus Systems: Data Controlled door locks, Factory Security and many accessories
This unit includes DP Technology it will allow you to plug our modules which operate Data control Door locks,
accessories, and Bypass Factory security systems directly into the unit by via Data Port. The module cable
plugs directly to the Data port on the side of the unit. Please refer to Databus module manual for detail
instructions.
Option #16 controls the Data Port Protocol for 1-Way (OFA modules) or 2-Way (SL modules). The default is
set for 2-Way Protocol. This option has no effect on conventional wiring of Bypass modules.
DATA LINK CABLE
Data Port Module Not Included
Data
Bypass
Module
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
BCM
OBD connector
Data wire
Antenna Plug
