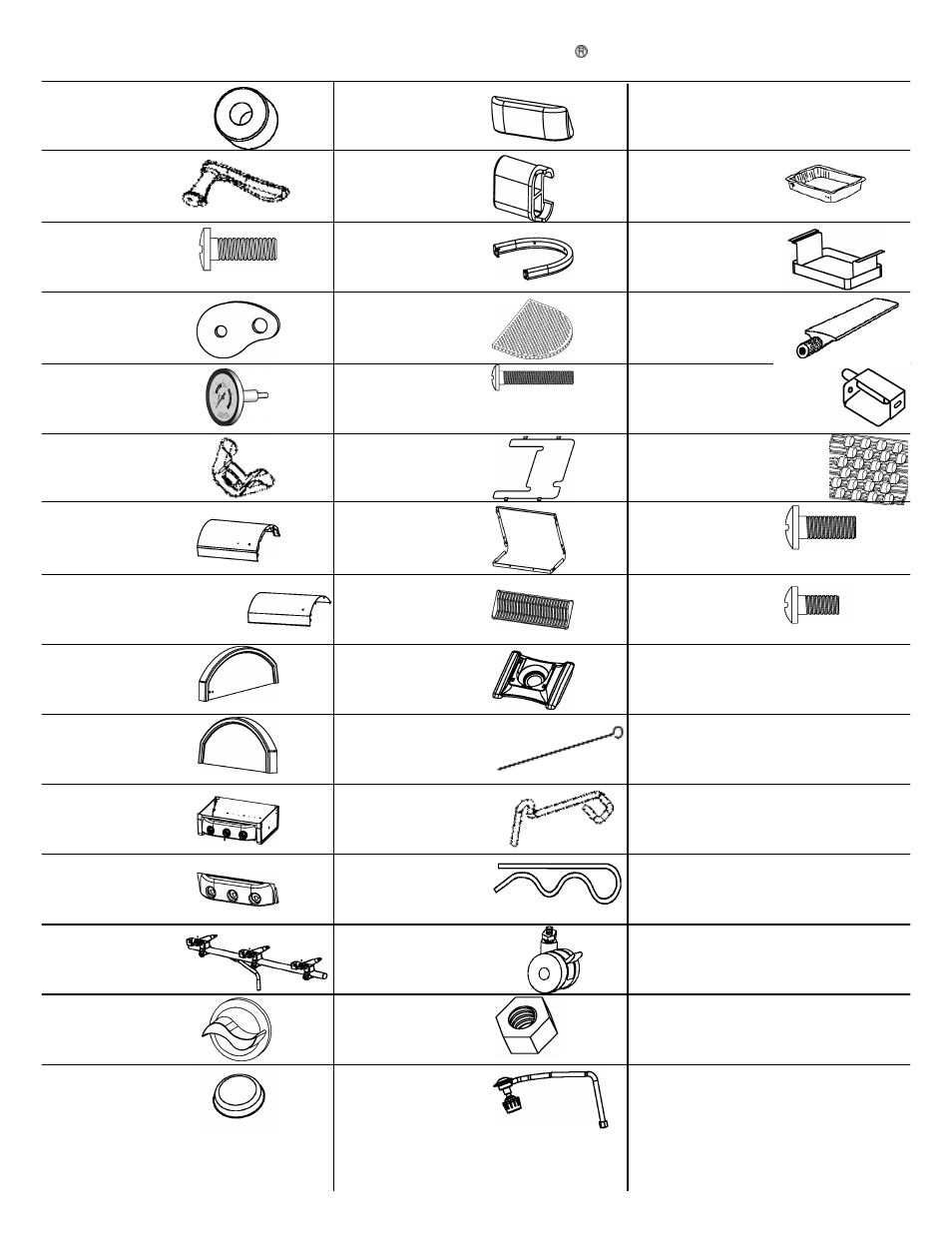

GRILL PARTS LIST
5
1. 03.4074.00
Spacer, Body
8 ea.
2. 03.4100.00
Handle
1 ea.
3. 03.4101.00
Bolt M5X15mm
3 ea.
6. 03.4104.00
Wing Nut M8
1 ea.
5. 03.4103.00
Heat Indicator
1 ea.
4. 03.4102.00
Handle Spacer
1 ea.
10. 03.4111.00
L. Side End Cap
1 ea.
9. 03.4110.00
Rt Side End Cap
1 ea.
8. 03.4109.00
Inner Hood Aluminum
1 ea.
7. 03.4108.00
Outer Hood S Stl
1 ea.
14. 03.4123.00
Knob
3 ea.
13. 03.4122.00
Gas Manifold
1 ea.
12. 03.4121.00
Control Panel
1 ea.
11. 03.4112.00
Bowl Assembly
1 ea.
16. 03.4125.00
Ctrl Panel Cover
1 ea.
15. 03.4124.00
Magnet 10X2 mm
1 ea.
17. 03.4126.00
Side Table Insert
4 ea. 32. 03.6011.00
Foil Pan
1 ea.
20. 03.4129.00
Bolt M6 X 30 mm
8 ea.
18. 03.4127.00
Side Table Frame
2 ea.
21. 03.4130.00
Heat Shield
1 ea.
19. 03.4128.00
Table Insert
2 ea.
33. 03.6012.00
Grease Tray
1 ea.
22. 03.4131.00
Pedestal L & R
2 ea.
23. 03.4132.00
Cooking Grid
3 ea.
24. 03.4133.00
Pedestal Base
1 ea.
25. 03.4134.00
Match Wire-Holder
1 ea.
26. 03.4135.00
Cylinder Retaining Wire
1 ea.
27. 03.5012.00
Cotter Pin 1.6” L.
3 ea.
28. 03.5043.00
Caster Assy
4 ea.
29. 03.5073.00
Hex Nut, M6
4 ea.
30. 03.5854.01
Gas Regulator
1 ea.
31. 03.6010.00
Screw, 1/2”
X ea.
34. 03.6039.00
Grill Gas Burner
3 ea.
35. 03.6042.01
Electrode/Collector
3 ea.
36. 03.6095.05
Ceramic BriquetteTray
2 ea.
37. 03.6208.00
Bolt M6 X 15mm
8 ea. Black
38. 03.6237.00
Bolt M5 X 10mm
3 ea. Black
