S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s 91 C o o p e r L i g h t i n g

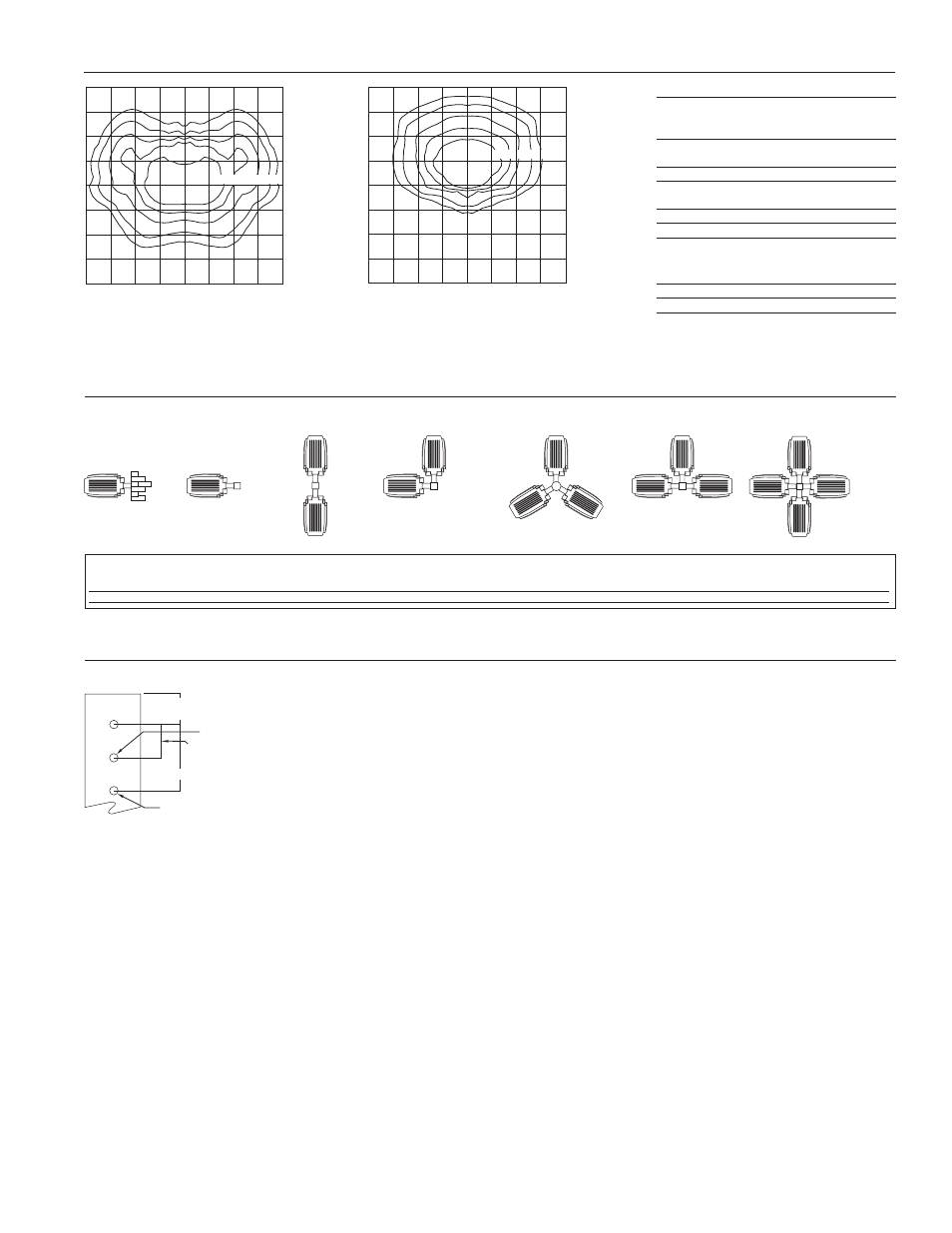

P H O T O M E T R I C S [ C o m p l e t e I E S f i l e s a v a i l a b l e a t w w w. c o o p e r l i g h t i n g . c o m ]
AV M V I S I O N A R E A
F O O T C A N D L E TA B L E
Select mounting height and read across for footcandle
values of each isofootcandle line. Distance in units of
mounting height.
Mounting
Footcandle Values for
Height Isofootcandle Lines
A
B C D E
AVM40M3S.IES
20' 3.00 1.50 0.75 0.30 0.15
25' 2.00 1.00 0.50 0.20 0.10
30' 1.38 0.69 0.34 0.13 0.06
AVM40MSL.IES
20' 4.50 2.25 1.13 0.45 0.23
25' 2.88 1.44 0.72 0.29 0.14
30' 2.00 1.00 0.50 0.20 0.10
A B C D E
4
3
2
1
0
1
2
3
4
4 3 2 1 0 1 2 3 4
4
3
2
1
0
1
2
3
4
4 3 2 1 0 1 2 3 4
A B C D E
AV M 4 0 M S L . I E S
400-Watt MH
36,000-Lumen Lamp
SLE—Spill Light Eliminator
AV M 4 0 M 3 S . I E S
400-Watt MH
36,000-Lumen Lamp
Type III
M O U N T I N G C O N F I G U R AT I O N S
Wall Mount Arm Mount Single Arm Mount 2 @ 180° Arm Mount 2 @ 90° Arm Mount 3 @ 120°
(Round Pole Only) Arm Mount 4 @ 90° Arm Mount 3 @ 90°
E.P.A. TABLE
SINGLE
DRILL PATTERN [W/Arm where applicable] 2 @ 180° 2 @ 90° 3 @ 90° 3 @ 120° 4 @ 90°
AVM “M” 1.6 3.2 3.2 4.5 4.5 5.55
NOTE: 1 Assumes 10" arm for 90° and 120° mounting configurations, 6" for all else.
D R I L L I N G PAT T E R N
T Y P E “ M ”
3/4'' [20mm]
dia. hole
(2) 5/8'' [16mm]
dia. holes
4 7/8'' [124mm]
2 7/16'' [124mm]
2 11/16''
[69mm]
