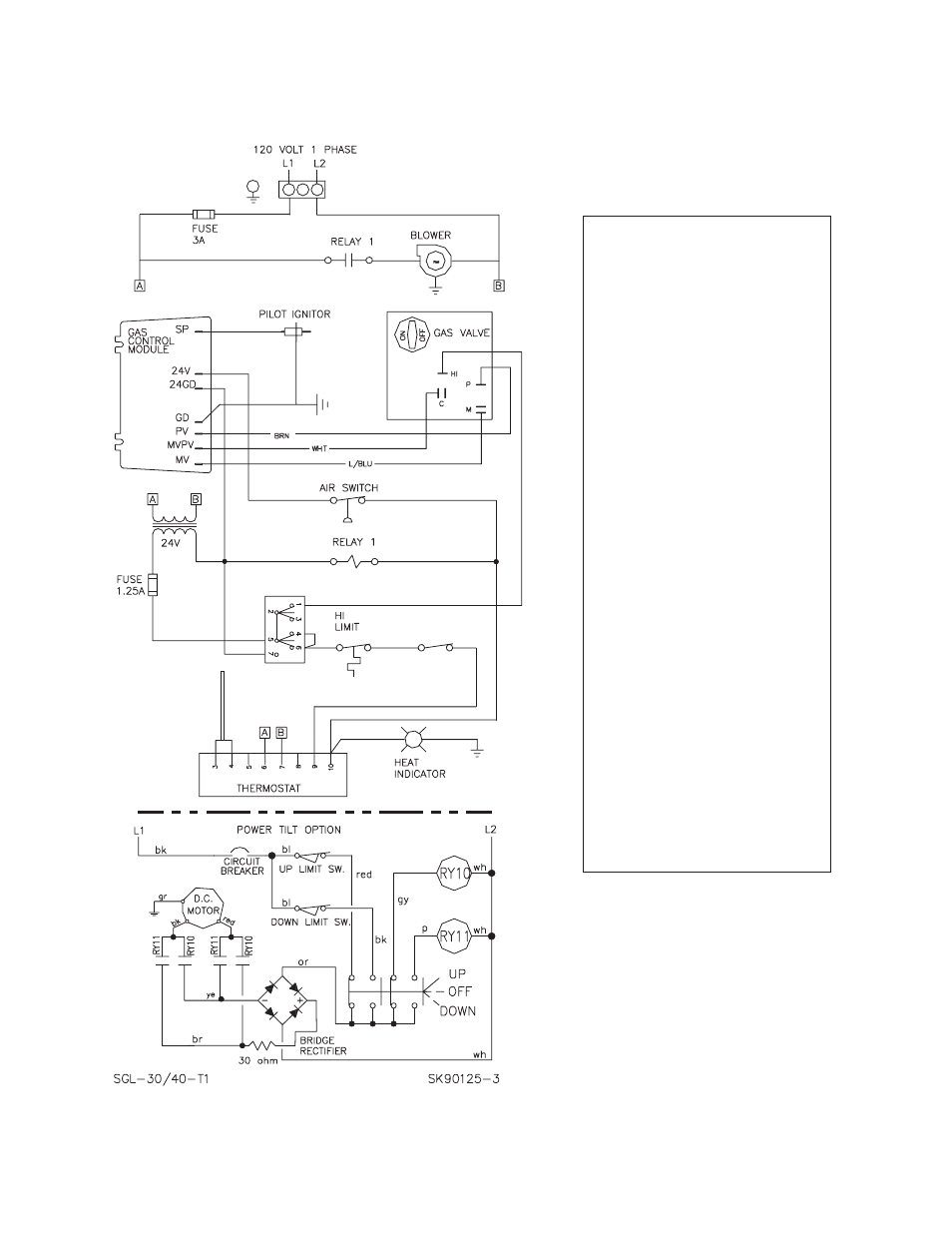

WIRING DIAGRAM
ELECTRICAL
COMPONENT
PART #s
FUSE 3A KE52936-6 12
FUSE 1.25A KE52936-8 12
RELAY 1 SK2475500 17
BLOWER SK2476000 14
PILOT IGNITOR SK2477000 17
GAS CONTROL MODULE SK2475300 17
GAS VALVE (NATURAL) SK2488200 15
GAS VALVE (LP) SK2488201 15
TRANSFORMER, 24V KE53838-25 12
AIR SWITCH SK2488100 14
HIGH/OFF/LO SWITCH SK2474102 16
HIGH LIMIT KE55069-7 17
MERCURY SWITCH KE50294-1 12
THERMOSTAT SK2142002 16
SENSOR SK50933-1 14
HEAT INDICATOR SK50905-1 16
CIRCUIT BREAKER KE50579-1 12
LIMIT SWITCH KE51007 11
RY10 (RELAY) KE50753-10 9
RY11 (RELAY) KE50753-10 9
DC MOTOR KE52832-4 12
BRIDGE RECTIFIER KE50581 9
RESISTOR SK50930 9
MERCURY SWITCH KE53137-3 11
- SECTION KE53184 11
- CONTACT BLOCK KE53138-1 11
RESISTOR
TILT SWITCH
MERCURY SWITCH
HIGH/OFF/LO
SWITCH
TRANSFORMER
ELECTRONIC
SENSOR
SEE
PAGE #
