19

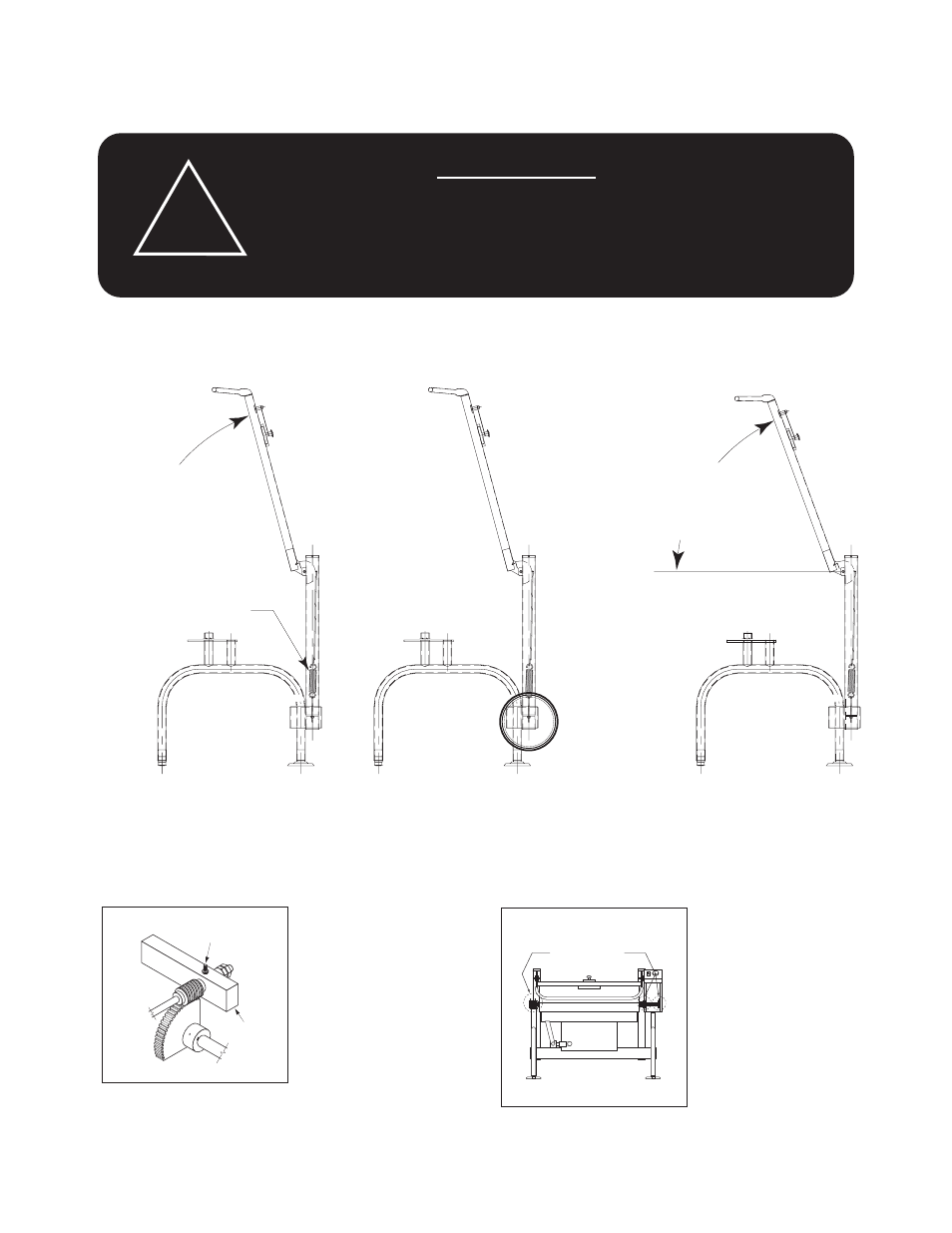

MAINTENANCE
WARNING:
Any maintenance or service involving disassembly of components
should be made by a qualified service technician. Ensure gas,
electrical and water supply (if applicable) to the unit are shut off.
!
LUBRICATION PROCEDURE
Lubricate the following parts every three months to
insure smooth operation and reduce wear.
TRUNNION
HOUSING,
WORM SCREW
AND TILT GEAR
These parts are
accessed through the
top cover of the
console.
Apply grease to gear
teeth. Check for
excessive play and adjust with adjusting screw located
on top of cross bar.
Adjusting
Screw
Worm
Screw and
Tilt
Gear
Cross
Bar
TRUNNIONS
On the left hand side of
the skillet there are two
grease nipples on the
top back portion of the
trunnion housing. On the
right hand side of the
kettle you must remove
the console cover to
access the two grease
nipples.
Trunnion Housing
Grease Nipple
HINGE ADJUSTMENT INSTRUCTIONS
1.
FULLY LIFT COVER
TO RELEASE SPRING
TENSION
SPRING
3.
WHEN PROPERLY
ADJUSTED, COVER
SHOULD REST AT 70˚
2.
USING A
7/16" DEEP
SOCKET
ADJUST LEFT
AND RIGHT
BOLTS
EVENLY
