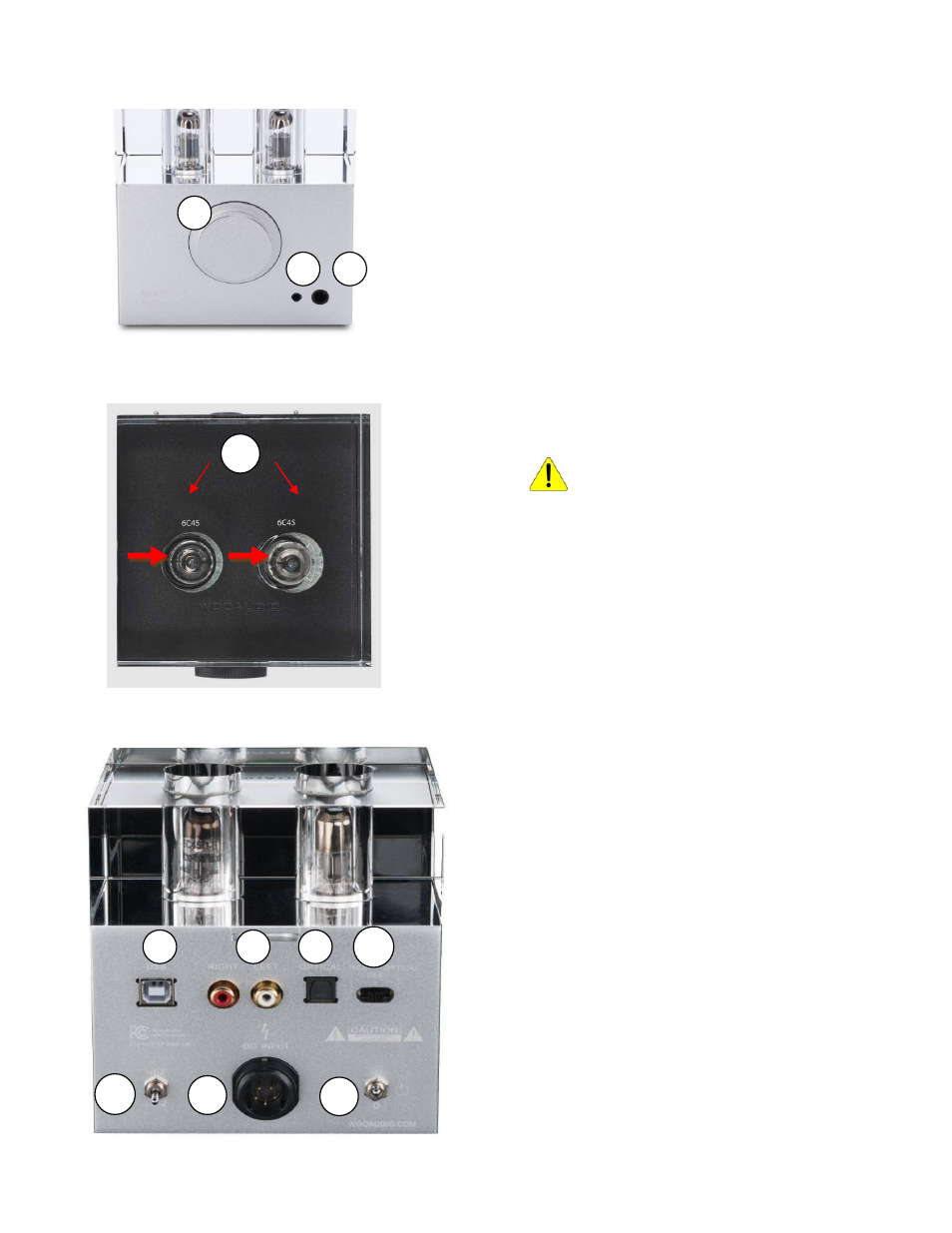

Front Panel
Top Panel
Back Panel
7
8 9
⑦ Volume control for headphone outputs
⑧ 3.5mm or 1/8” mini In-Ear-Monitors
headphone jack
⑨ 6.35mm or 1/4"headphone jack
⑩ Tube sockets for 6C45 vacuum tubes
Please pay close attention to vacuum
tube installation alignment marks!
⑪ USB 2.0 digital input
⑫ RCA analog input
⑬ Optical digital input
⑭ Input-output switch
Optical – optical digital input
RCA –RCA analog input
USB – USB 2.0 digital input
⑮ High and low headphone impedance switch
HI-Z – High impedance
LO-Z – Low impedance
⑯ Umbilical power cord socket (male)
⑰ Power switch
I – ON
O – OFF
11
10
12
16 15
14 13
17
