OPERATION

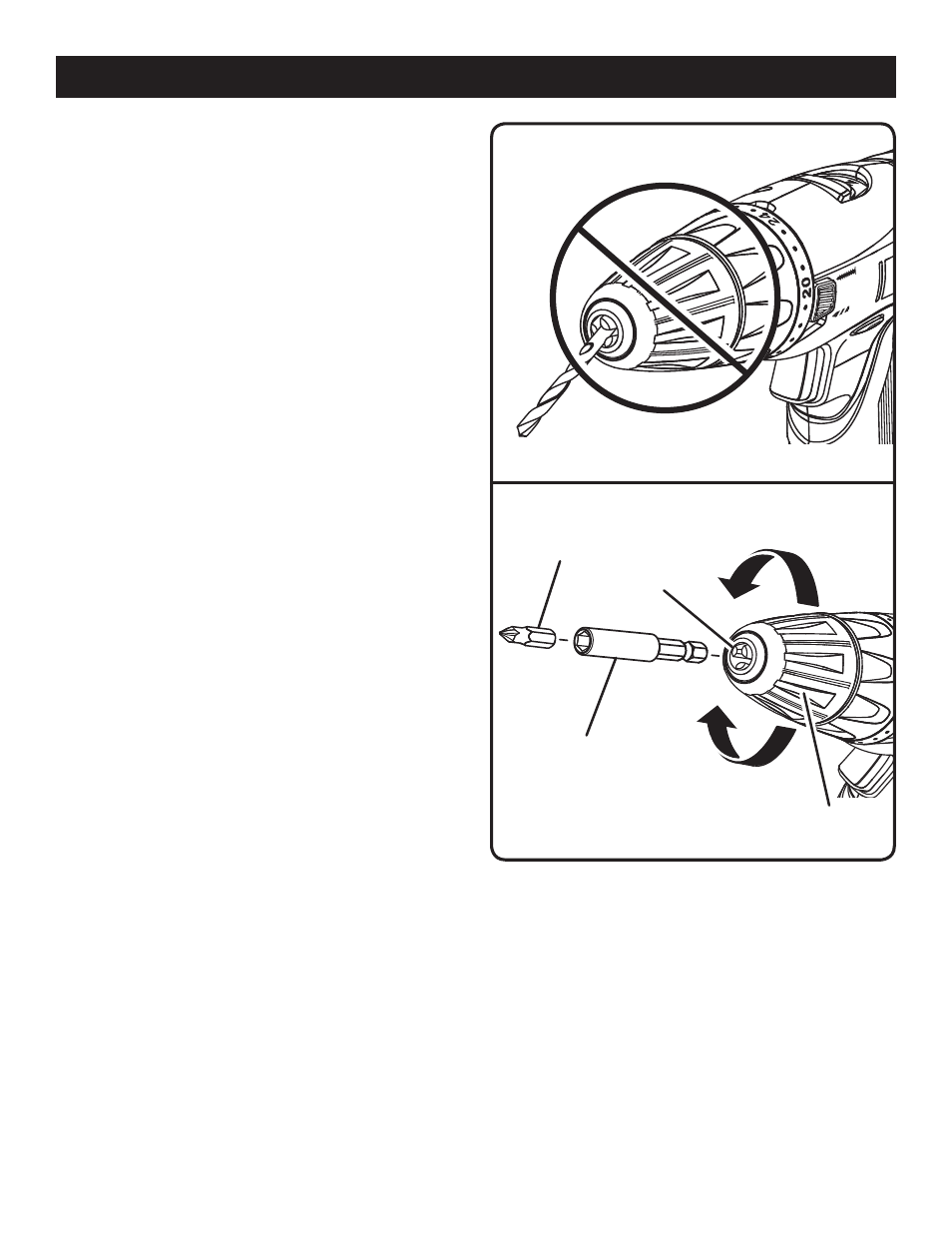

Fig. 10
REMOVING BITS
See Figure 9.

Lock the switch trigger by placing the direction of rotation
selector in the center position.
 Rotate the chuck sleeve clockwise to open the chuck
jaws.
NOTE: Rotate the chuck body in the direction of the arrow
marked
UNLOCK to loosen the chuck jaws. Do not use
a wrench to tighten or loosen the chuck jaws.
 Remove the drill bit.
INSTALLING/REMOVING THE MAGNETIC BIT
HOLDER
See Figure 11.

Lock the switch trigger by placing the direction of rotation
selector in the center position.
 Open or close the chuck jaws to a point where the opening
is slightly larger than the end of the magnetic bit holder.
Also, raise the front of the drill slightly to keep the bit
holder from falling out of the chuck jaws.
 Insert the bit holder.
NOTE: Open the chuck jaws just enough to fully insert
the end of the magnetic bit holder. The body of the bit
holder should rest against the chuck jaws when the jaws
are closed and tightened.
 Tighten the chuck jaws on the bit holder.
 Insert a bit into the open end of the magnetic bit
holder.
 To remove the magnetic bit holder, see Removing
Bits.
WRONG
Fig. 11
MAGNETIC BIT
HOLDER
UNLOCK
(RELEASE)
LOCK
(TIGHTEN)
CHUCK BODY
CHUCK
JAWS
BIT
