OPERATION
CHARgINg A HOT bATTERy PACK
When using a tool continuously, the batteries in the battery
pack will become hot. You should let a hot battery pack cool
down for approximately 30 minutes before attempting to
recharge. When the battery pack becomes discharged and
is hot, this will cause the red LED to blink. If the red LED
continues to blink and the yellow LED comes on, return bat-
tery pack to your nearest Ryobi Authorized Service Center
for checking or replacing.
NOTE: This situation only occurs when continuous use
of a tool causes the batteries to become hot. It does not
occur under normal circumstances. Refer to “CHARgINg
A COOL bATTERy PACK” for normal recharging of
batteries. If the charger does not charge the battery pack
under normal circumstances, return both the battery pack
and charger to your nearest Ryobi Authorized Service
Center for electrical check.
ENERgIZINg bATTERy CHARgER
See Figure 4.
By holding the connector firmly, place connector into a
cigarette lighter receptacle or “power point” to energize
battery charger, red POWER LED will come on.
USE P130 bATTERy CHARgER ONLy WITH
bATTERy PACKS LISTEd bELOW

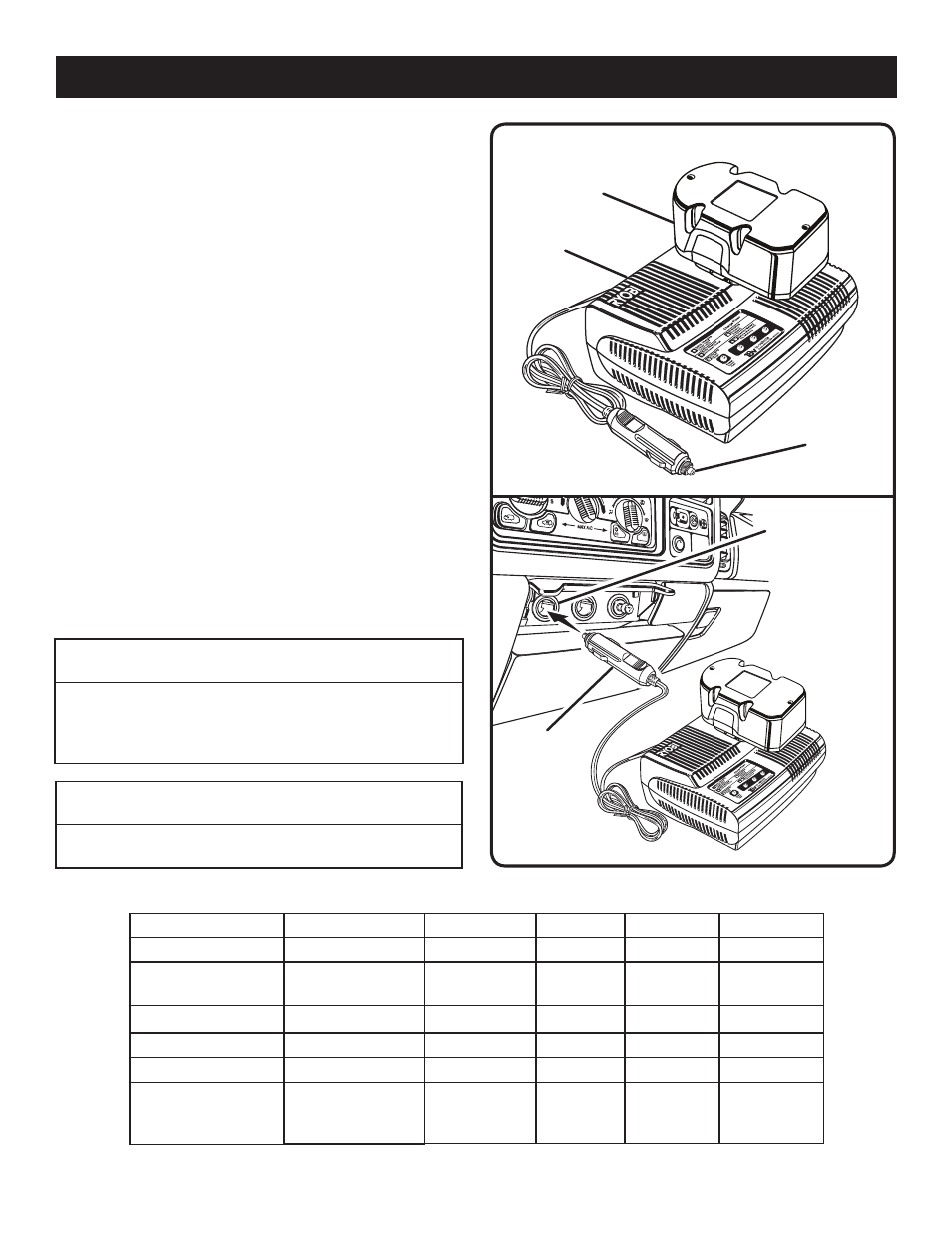

Fig. 3
P130
cHarGer
battery
Pack
battery Pack sHOWn attacHeD tO cHarGer
Fig. 4
ciGarette
liGHter
recePtacle Or
POWerPOint
ciGarette
liGHter
cOnnectOr
TyPE 1 bATTERy PACK NUMbERS
(require 1 - 1 1/2 hours to charge)
1400651, 140065, 1314707, 1400655, 1400671, 131470,
140067, 13401, 130147008, 1304010, 1304007,
13701, 130700, 130408, 134101, 133701,
1304011, 13056001, 13055004, 133303
TyPE 2 bATTERy PACK NUMbERS
(require 3 - 6 hours to charge)
1400669, 1311146, 1400670, 1311148, 1311145,
1400668
POWER
Quick Charging
Fully Charged
Evaluating
Defective
Charger Voltage/
Temperature
Shutdown
BATTERY TYPE
W/O Battery Pack
Type 1
Type
Type 1 and Type
Type 1 and Type
Type 1 and Type
Type 1 and Type
RED
Off
On
Off
Off
Flashing
Flashing
Off
GREEN
Off
Off
Flashing
On
Off
Off
Off
YELLOW
Off
Off
Off
Off
Off
On after 30 min.
Flashing
RED POWER
On
On
On
On
On
On
On
ciGarette
liGHter
cOnnectOr
