3
1 1
1 1
2 2
2 2

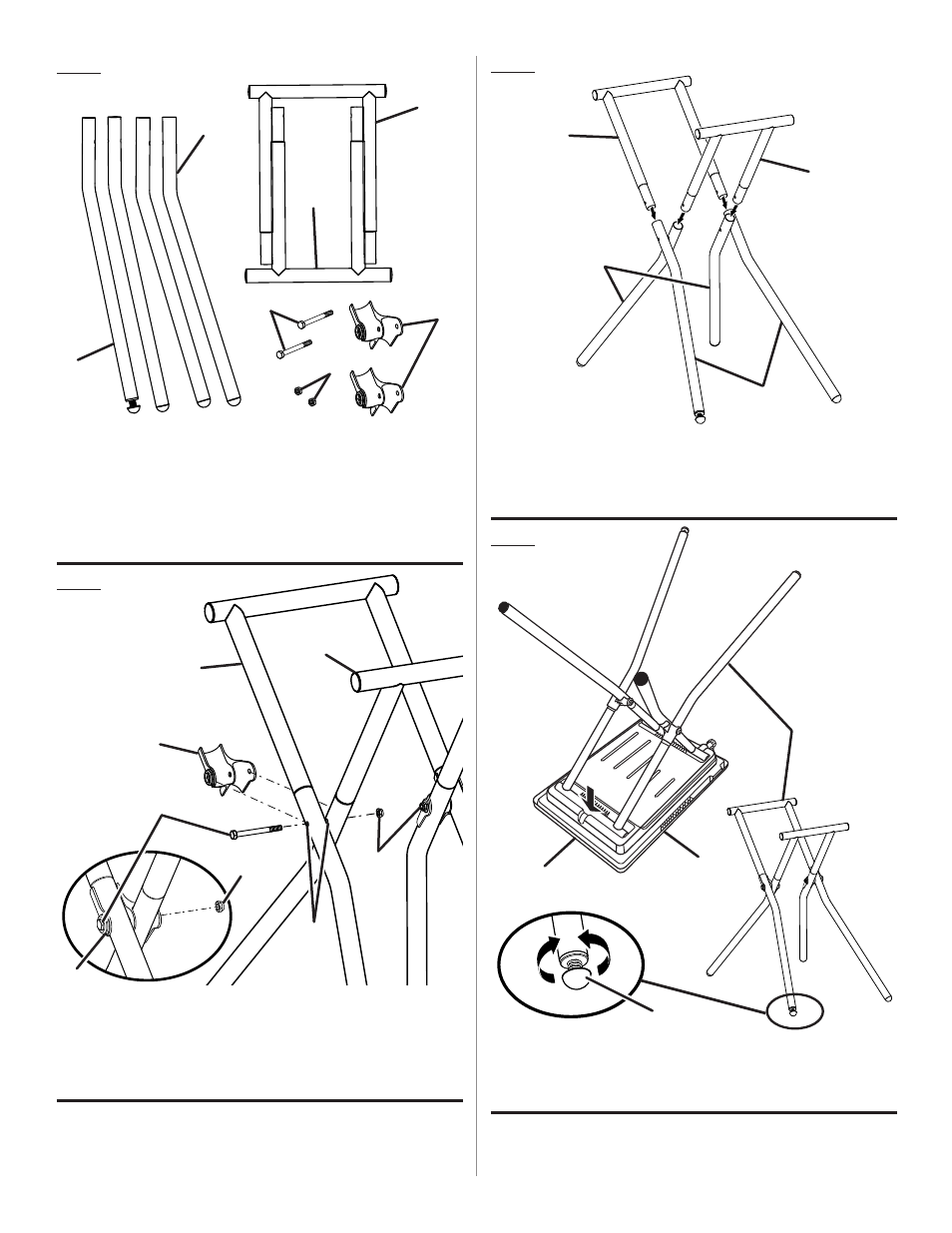

Fig. 2
Fig. 3
Fig. 1
A - Stand legs, “1” ( pattes des support “1”, patas des pedestal “1”)
B - Stand legs, “2” ( pattes des support “2”, patas des pedestal “2”)
C - Support bracket “1”(ferrure de support “1”, placa de soporte “1” )
D - Support bracket “2”(ferrure de support “2”, placa de soporte “2” )
A - Leg assembly “1” (ensemble de pattes “1”, conjunto de patas “1”)
B - Leg assembly “2” (ensemble de pattes “2”, conjunto de patas “2”)
C - Center support (support central, suporte central)
D - Holes (trous, agujeros)
E - Hex head bolt (boulon à tête hex, perno de cabeza hexagonal)
F - Nylock nut, (écrou de blocage en nylon, Tornillo fijador de nylon)
A - Stand assembly (ensemble de support, conjunto del pedestal)
B - Water tray (plateau à eau, bandeja de agua)
C - Front (avant, delantera)
D - Adjustable foot (pied réglable, pedestal ajustable)
Fig. 4
A - Stand legs, “1” ( pattes des support “1”, patas des pedestal “1”)
B - Stand legs, “2” ( pattes des support “2”, patas des pedestal “2”)
C - Support bracket “1”(ferrure de support “1”, placa de soporte “1” )
D - Support bracket “2”(ferrure de support “2”, placa de soporte “2” )
E - Brace (support central, suporte central)
F - Hex head bolt (boulon à tête hex, perno de cabeza hexagonal)
G - Nylock nut, (écrou de blocage en nylon, tornillo fijador de nylon)
a
b
C
D
E
F
g
a
C
b
D
a
b
C
D
E
C
F
a
b
F
C
D
