ASSEMBLY
WARNING:
The table saw should never be connected to a power
supply while you are assembling parts. Disconnect-
ing the table saw will prevent accidental starting that
could cause serious personal injury.
FITTING THE ELBOW TO THE DUST
COLLECTION CHUTE
For BT3000 and BT3100
See Figure 1.
The elbow fits inside the dust collection chute on the
table saw.
■ Slide the elbow into the chute.
CONNECTING THE DUST BAG TO THE
ELBOW
For BT3000 and BT3100
See Figure 2.
The dust bag adapter fits inside the elbow.
■ Slide the dust bag adapter into the elbow as shown.
For efficient operation, empty the dust bag before it is
half full. Doing so will permit better air flow through the
bag.
WARNING:
Collected dust from sawing surface coatings such as
polyurethanes, linseed oil, etc. can self-ignite in your
dust bag or elsewhere and cause fire. To reduce the
risk of fire, always empty your dust bag frequently
(10-15 minutes) while sawing and never store or
leave a saw without totally emptying its dust bag.
Also follow the recommendations of the coatings
manufacturers.

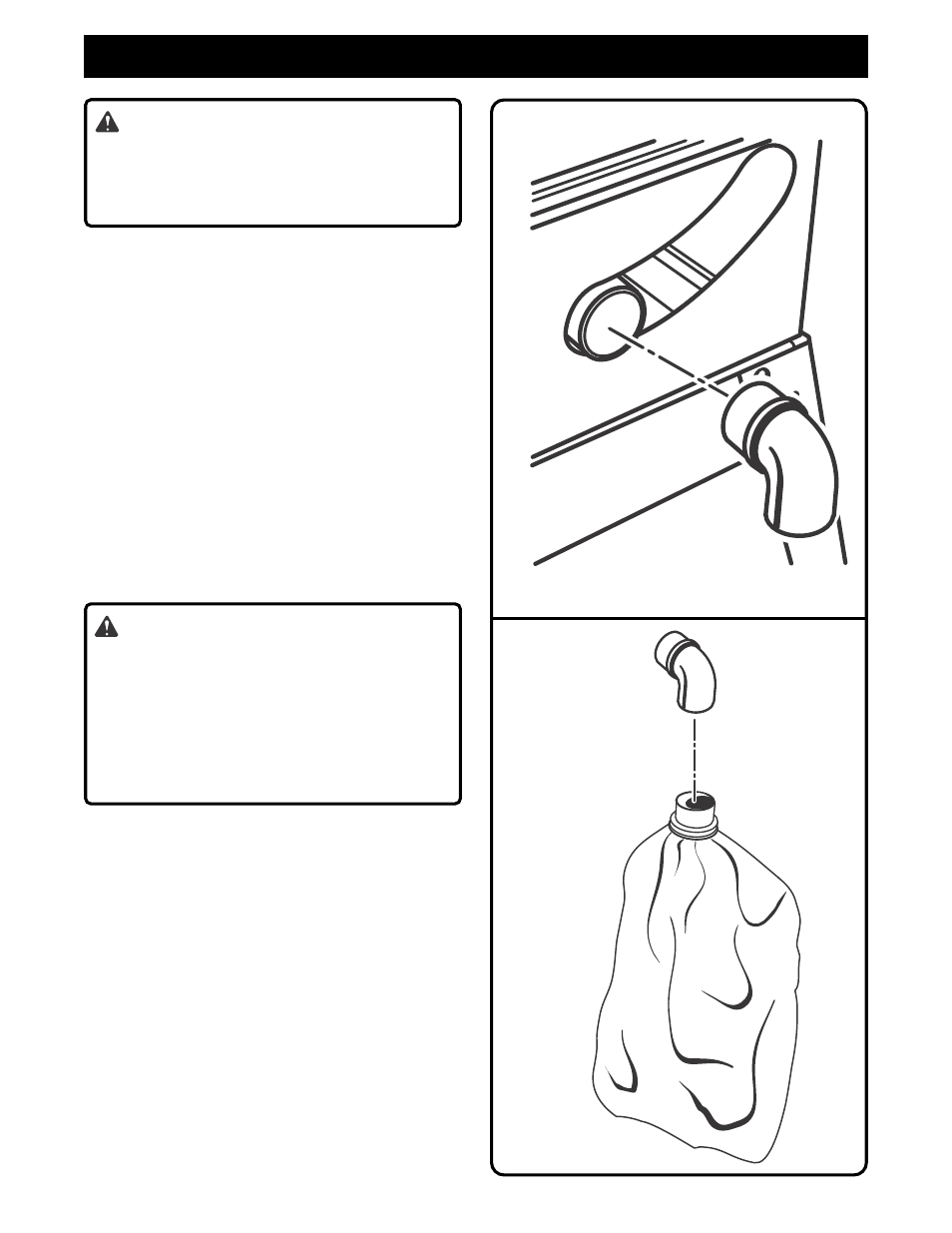

Fig. 2
