4

ASSEMBLY

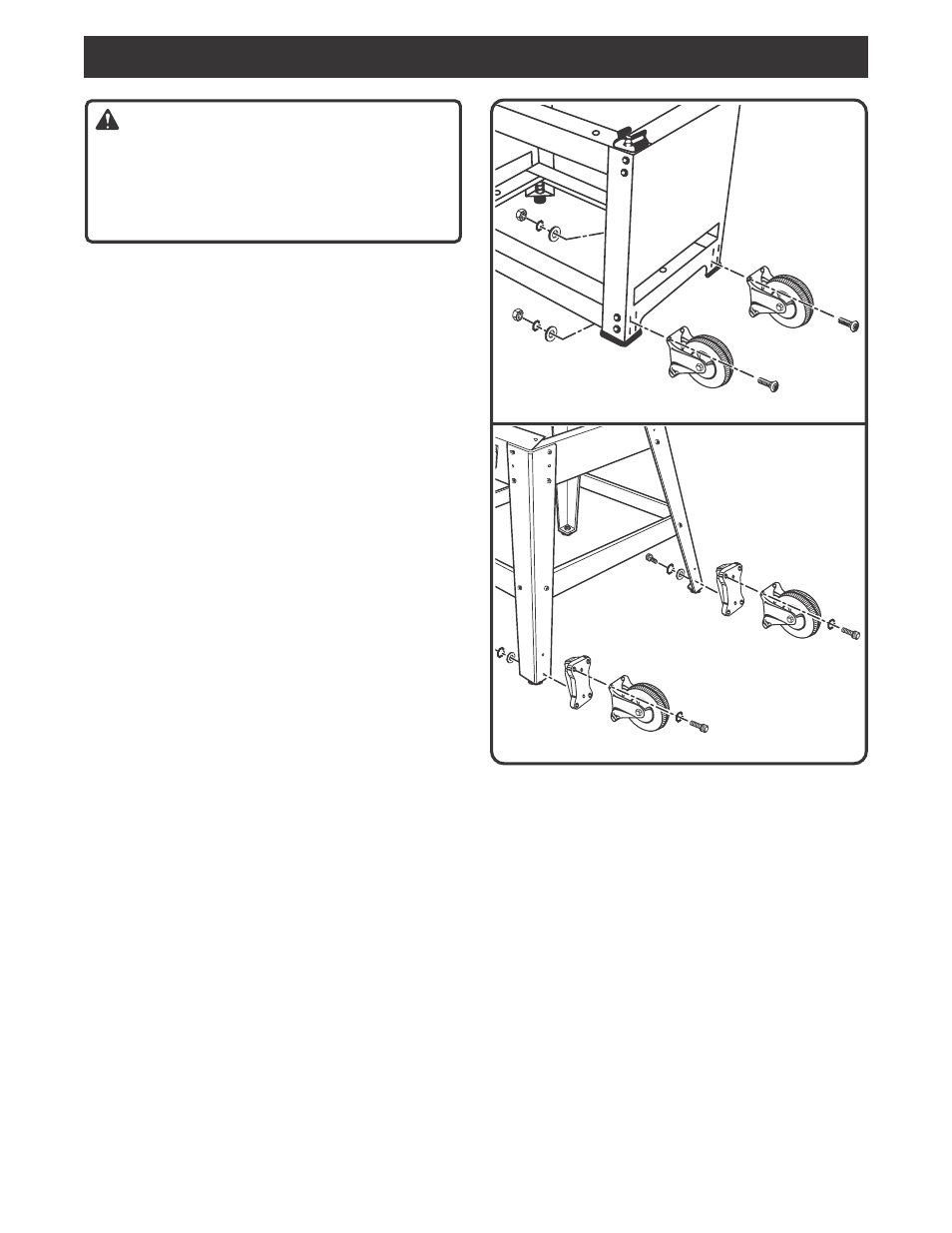

Fig. 1

WARNING:

The table saw should never be connected to a power
supply when you are assembling or disassembling
parts. Disconnecting the table saw will prevent acci-
dental starting that could cause serious personal
injury.

ATTACHING THE CASTERS (BT3000)

See Figure 1.

Follow these directions to attach the casters to the
BT3000 stand.
■ Align the holes in the caster with the holes in the

BT3000 stand leg.

■ Place the carriage bolts through the caster and holes

in the stand leg.

■ Place the 1/4 in. flat washers onto the carriage

bolts.

■ Place the 1/4 in. lock washers onto the carriage

bolts.

■ Place the hex nuts onto the carriage bolts.
■ Secure tightly with a 1/4 in. wrench.

ATTACHING THE CASTERS (BT3100)

See Figure 2.

Follow these directions to attach the casters to the
BT3100 stand.
■ Align the holes in the caster with the holes in the

adaptor.

■ Place the 5/16 in. lock washers onto the

5/16-18 x 1/2 socket head screws.

■ Place the 5/16-18 x 1/2 socket head screws through

the caster and into the adaptor.

■ Secure tightly with the hex wrench provided.
■ Place the 5/16 in. flat washers onto the

5/16-18 x 5/8 socket head screws.

■ Place the 5/16 in. lock washers onto the

5/16-18 x 5/8 socket head screws.

■ Align the holes in the adaptor with the holes in the

stand leg.

■ Start with the bottom hole and place the

5/16-18 x 5/8 socket head screws through the holes
in the stand leg and into the adaptor.

■ Secure tightly with the hex key provided.

Fig. 2

MOVING THE TABLE SAW

Follow these directions to move the table saw.
■ Make sure the casters are securely attached to the

stand.

■ Make sure the rip fence, miter fence, and tables are

securely tightened.

■ Remove any loose items from the saw.
■ Clear the floor of all debris.

NOTE: If you need more leverage to lift the saw,
remove the rip fence, miter fence, and tables. Then
slide the extension rails so that the ends (on the
same side as the casters) are flush with the end of
the saw edge.

■ Lift the saw using the extension rails.
■ Move the saw to the desired location.
