www.petsafe.net 5

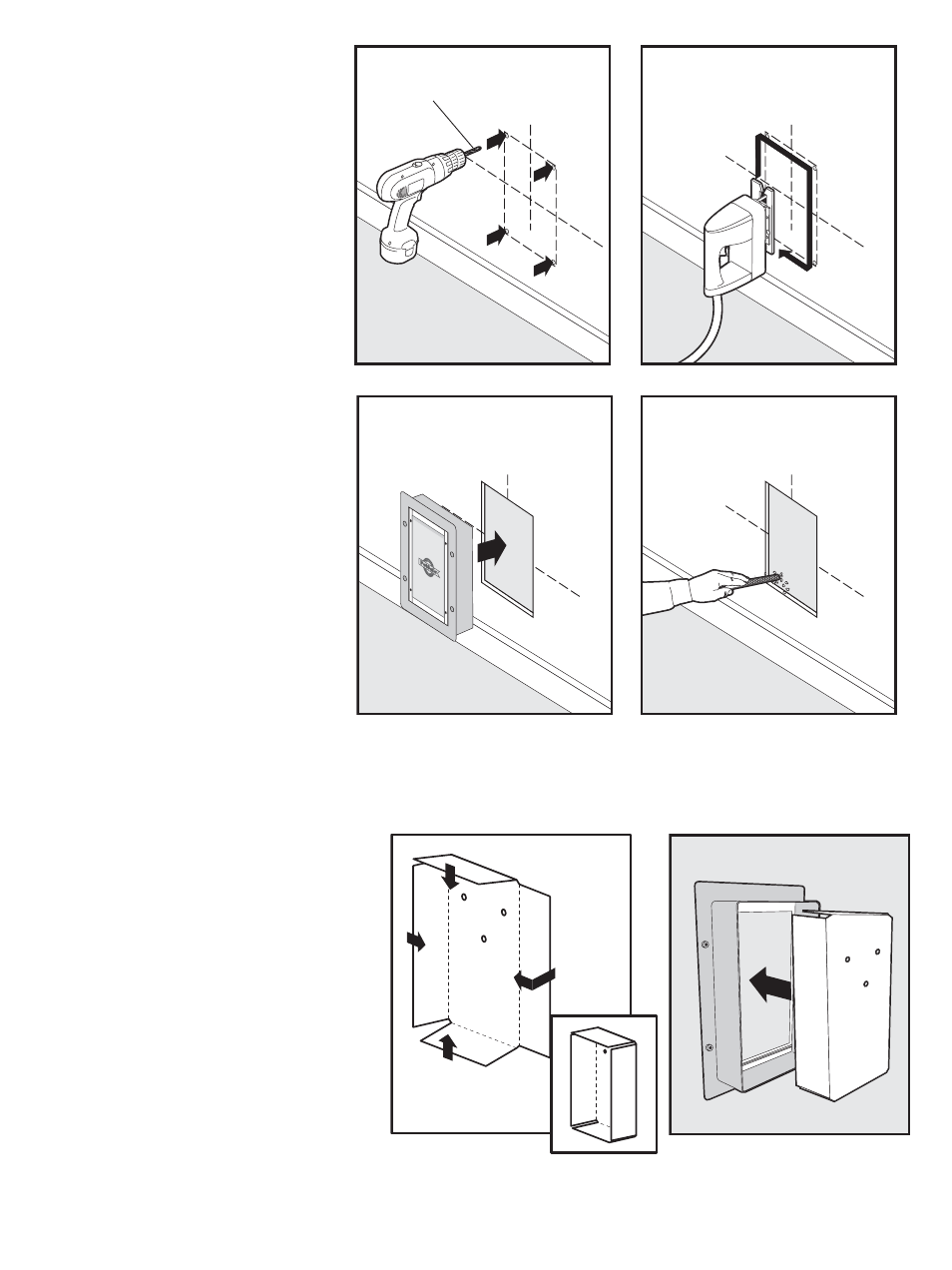

9. Drill out the four corners
of the rectangular hole
with a 5/16" drill bit (1F).
10. Carefully cut the hole
out using a jigsaw or
other appropriate cutting
device (1G).
Note: Cut on line.
11. Using the A side of the
Pet Door, check the fi t
(1H). Do not force fi t if
it is tight. If the hole is
too small, simply remove
the Pet Door and re-cut
or fi le the hole slightly to
enlarge (1I). Do not cut
more than 1/8" from your
previous cut.
12. Once the Pet Door
properly goes into the
hole, adjust to ensure the
unit is square.
1H 1I
5/16"
1F 1G
___________________________________________________________________________________
Exterior Wall Cut-Out
1. Remove the Pet Door from
the wall.
2. Fold up the Center Locator
(2A). Slide the folded piece
into the back of A side as
shown (2B).
2A
2B
Step
2
