Before installing your cat fl ap please
read the following step-by-step
instructions carefully.

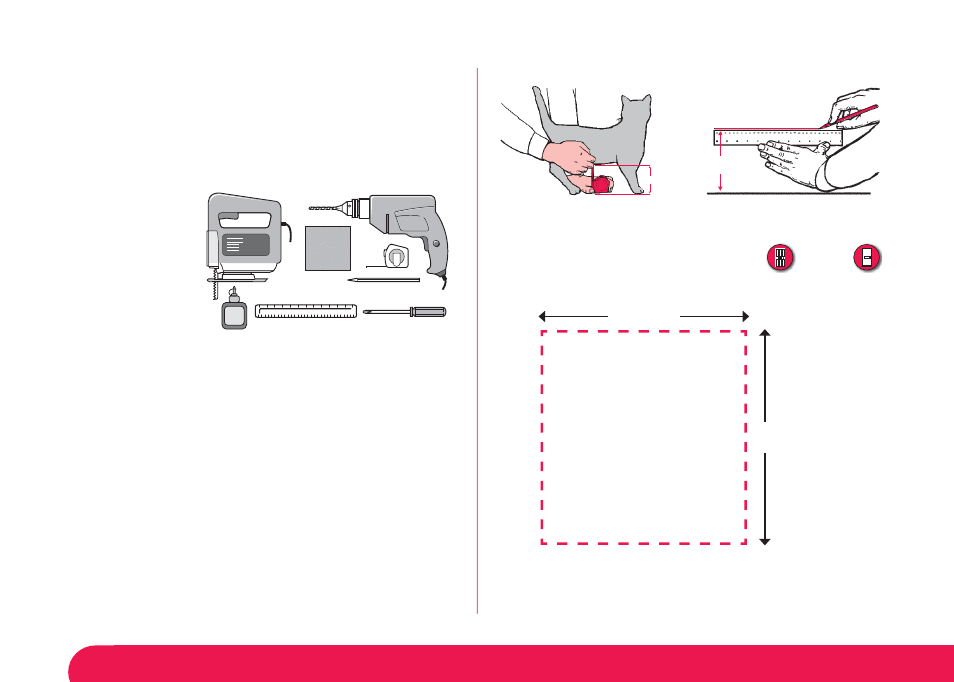

Tools required

Pencil

Ruler

Jig or Keyhole Saw

Drill

Screwdriver

Tape measure

Glue

Sand paper

Measurement and marking

Measure the belly height of your cat. This is usually 100 -150mm (4-6”) (Fig. 1).

Mark this measurement on the outside of your door and draw a straight
horizontal line 168mm (6

1

/

2

”) (Fig. 2).

Please bear in mind that this line will eventually be the bottom of the hole
you will cut in your door and that the frame of the cat fl ap will be slightly
lower. If necessary, this line may have to be raised slightly to account for this.

FIG.1 FIG.2

Cutting a hole for your cat fl ap

a) In Wood and PVC/uPVC/Metal

The cat fl ap requires a square cut-out of 175mm x 168mm (6

3

/

4

” x 6

1

/

2

”). (Fig. 3).

Not to scale - for best results you should refer
to the enclosed cutting template.

(x)

(x)

Wooden doors

PVC/uPVC/Metal

168mm (6

1

/

2

”)

175mm

(6

3

/

4

”)

FIG.3

2
