Depending on the system purchased, you should have
received the following components:
The Wall-Mount Transmitter
The transmitter is the system's control center. Lift the
hinged front cover to reveal the switches that can
customize your system.

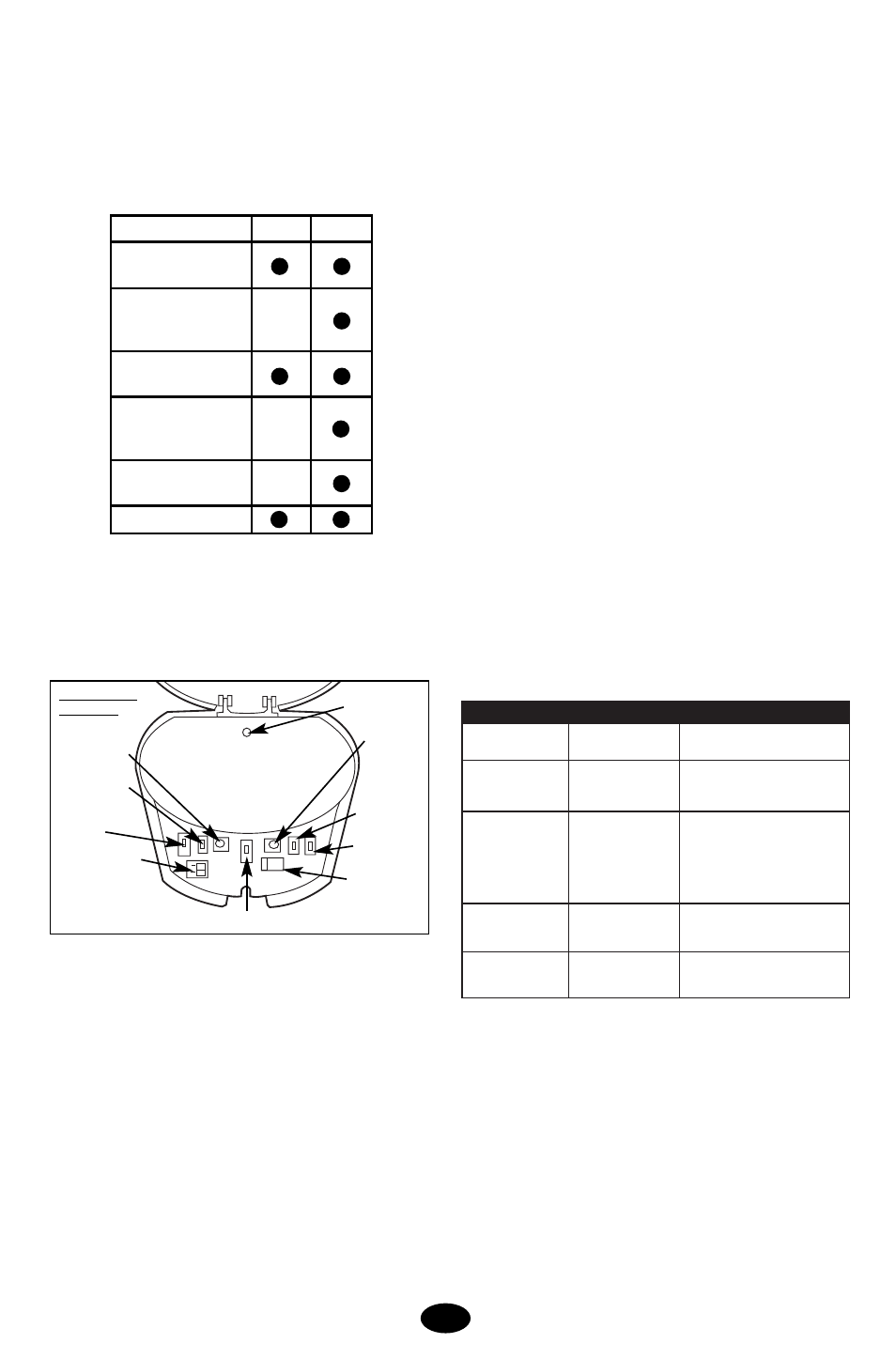

Wall Transmitter User Controls
1. Field Width Adjustment Control
2. Field Size Switch
3. Stimulation Level Switch
4. Loop Wire Terminals
5. Collar Charge Reminder Switch
6. Power Connection
7. Battery Backup Monitor Switch
8. Power Switch ON/OFF
9. Alarm Volume Control
10. Indicator Light
1. Field Width Adjustment – Controls the distance from
the wire your dog can venture before hearing the
warning tone and receiving correction.
2. Field Size Switch – Set switch to small (SM) for
installations of 1,000 feet of wire or less.
3. Stimulation Level Switch – Select from levels Low,
Medium, or High, the correction level your dog will feel
after the 2-second warning tone (LOW and MED
selections only). The tone and correction occur at the
same time when level is set on HIGH.
4. Loop Wire Terminals – Spring-loaded connections for
the pet fencing wire.
5. Collar Charge Reminder Tone Switch – Not required
with this system. Set to OFF.
6. Power Connection – Power for the pet fencing
system. Connect the 24-volt DC adapter plug here, and
then plug the adapter into any 110v AC outlet.
7. “24/7” Battery Backup Monitor Switch – If power to
the system is interrupted, the battery back-up will keep
the system working up to 40 hours. Install 8 AA alkaline
batteries (not included). The monitor will sound when
batteries need to be replaced. For the safety of your
dog, the battery backup monitor should be switched to
ON and kept in good working order at all times.
8. Power – ON/OFF Switch
9. Alarm Volume – Controls the volume of wall
transmitter alarms. Will not silence the alarm.
10. Indicator Light and Alarm – The light on the front of
the transmitter will indicate the following conditions.
The Collar
The lightweight comfortable collar is integrated into a
fashionable collar strap your dog wears. The collar
administers the warning tone and correction should your
dog attempt to leave the yard. The collar is rechargeable;
place the collar on the charging cradle located on top of
your charger station. The collar’s light glows red while
charging; it glows green once charging is complete.
IUC-5100E Contain ‘N’ Train users – your collar features
2 lights. The one on the left reflects status of the system’s
in-ground fencing, the light on the right reflects commands
from the handheld remote.
INNOTEK ® UltraSmart ™
In-ground Pet Fencing System
5
1. Field Width
Adjustment Control
2. Field Size Switch
3. Stimulation
Level Switch
4. Loop Wire Terminals
5. Collar Charge Reminder Switch
6. Power
Connection
7. Battery Backup
Monitor Switch
8. Power ON/OFF
Switch
9. Alarm
Volume Control
10. Indicator Light
Wall Transmitter–
User Controls
IUC-4100E IUC-5100E
Wall mount
transmitter
Installation Wire
Pre-twisted
Fastrak™ Wire
UltraSmart in-ground
fencing collar
UltraSmart
Contain N Train
®
collar
Contain N Train
handheld remote
Training DVD
Status Light
Solid Green
Flashing Red
Flashing Yellow
None
None
No
Twice per second
Once per second
alarm can be turned
off with battery
backup monitor
alarm switch
Once per 5 seconds
No
Power On / System OK
Boundary Wire
Broken/Disconnected
Backup Batteries Low
AC Power Disconnected; Unit
Operating on battery
Transmitter is OFF or
Power is disconnected
Alarm Tone Condition
Transmitter Status Indications
