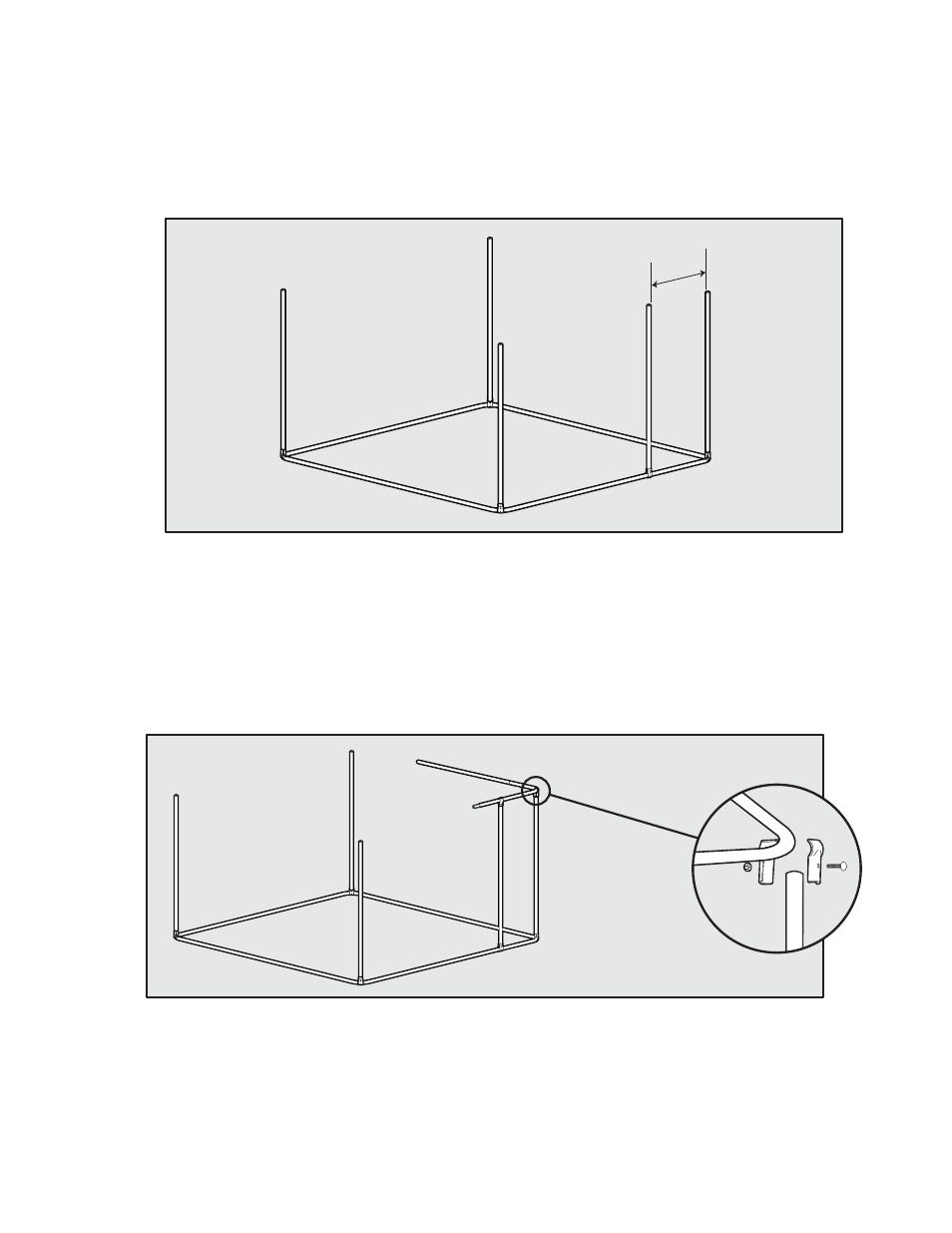

Add an Upright Post for the Gate

1. Gather 1 upright, 2 clamps , and 1 -

" x 2" carriage bolt with nut.

2. Install the gate post 50 cm to either side of the corner upright.

Important: Do NOT have the gate span a joint in the frame. The frame can come apart at the
swedged joint.

50 cm

Note: Gate Opening is 50 cm between posts. All swedged joints will be loose until fence fabric is installed.

____________________________________________________________________________________

Add Top Rails

1. Gather 4 corner rails, 4 frame rails, 10 clamps and 5 -

x 2" carriage bolts with nuts.

2. Point all top rail swedges clockwise the same direction as the bottom frame.
3. Connect rails to all posts (4A). Tighten all clamps as you go.

Important: Check that all posts are straight up and down. Confi rm that all nuts are tight.
