PDR Mounts cpm100 User Manual

Page 3

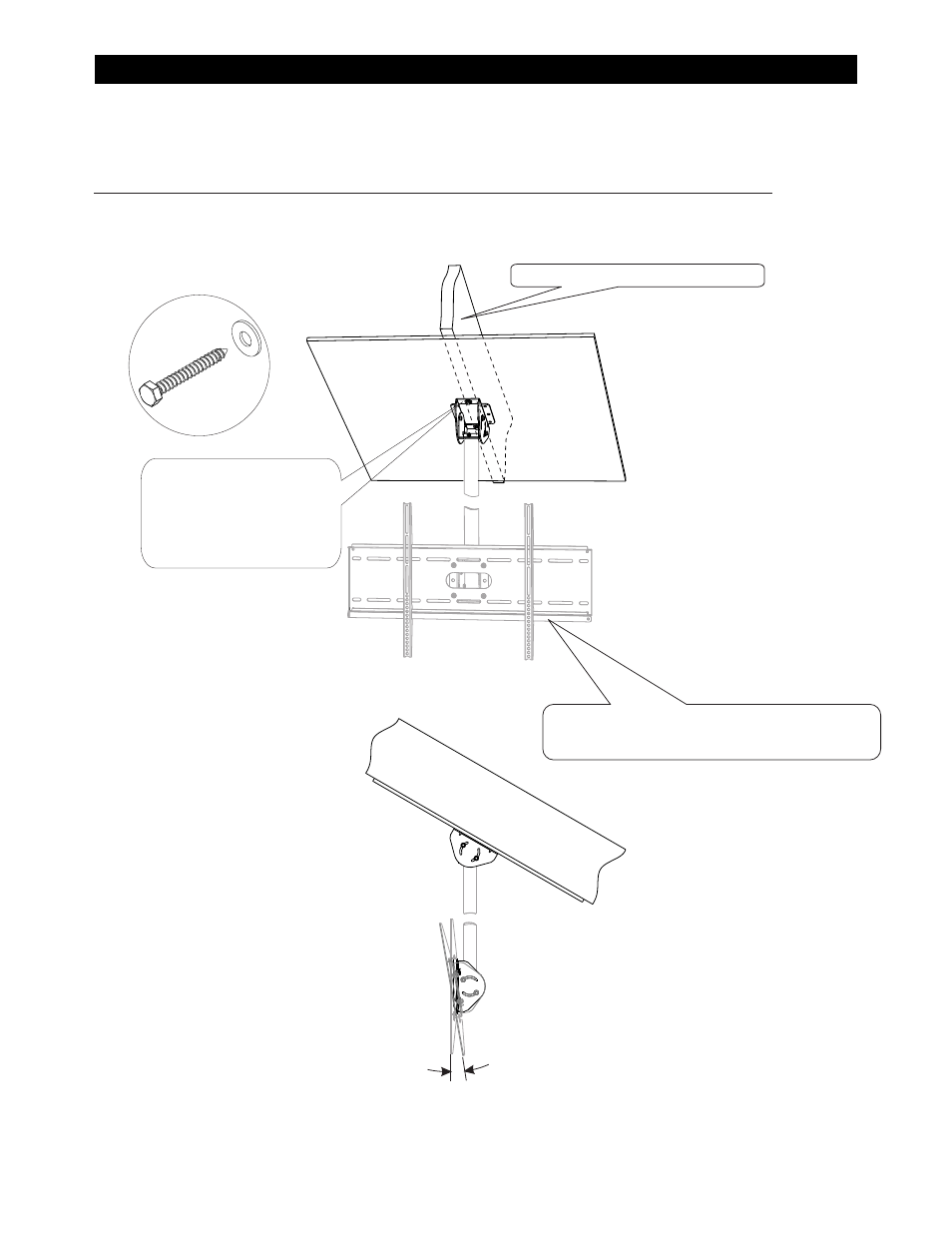

TYPICAL APPLICATION FOR THE CPM-100

TILT FOR BEST VIEWING ANGLE

TYPICAL 2 X WOOD STRUCTURE

PDR MOUNT AND 1 ½” PIPE NOT

INCLUDED

SECURE TO THE
CENTER OF THE WOOD
STRUCTURE WITH AT
LEAST 2 LAG BOLTS
SUPPLIED

Install using the lag bolts and washers supplied as in

FIG 1. Make sure that the bolts are inserted into the center

of the support studs. The use of a stud finder may help locate the center of the support stud. The

CPM100 can

be used as a ceiling mount or a display mount see

FIG 2. After installing the CPM100 and pipe (not supplied)

make sure to tighten the safety screw against the 1 ½”pipe

NOTE: the support structure must be able to support 5 x the weight of the mount and display.

FIG 1

FIG 2
