Page 3

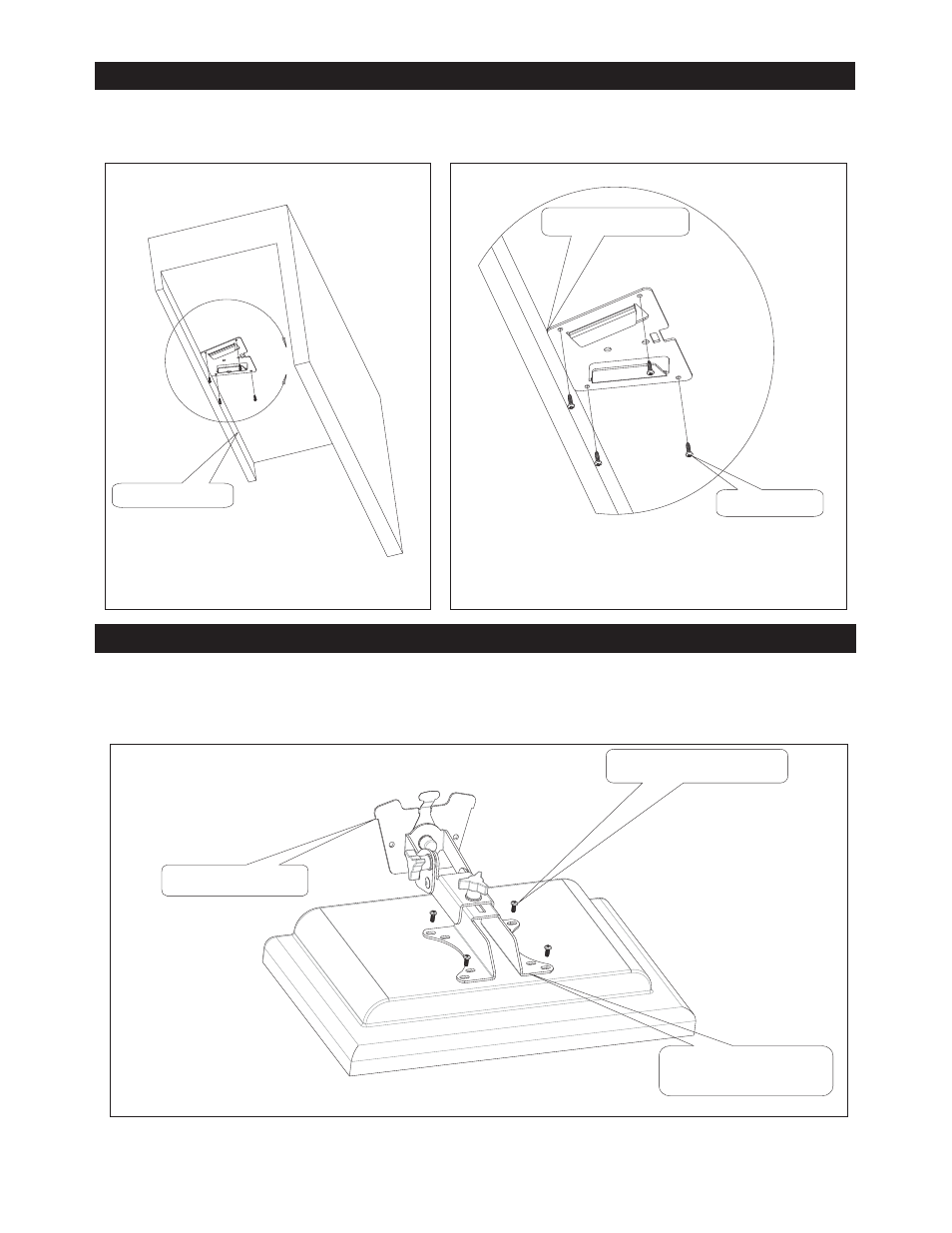

Fig 5
Fig 3
A
View under cabinet
Cabinet front lip
View “A”
Enlarged view
Fig 4
Position flush to front
edge
Wood screws
Lay the monitor on a soft surface, face down, and attach the mount using 75mm or 100mm VESA hole
pattern and the 4 screws supplied. See fig 5
Using the 4 wood screws supplied, attach the mounting bracket to the underside of the cabinet. Place the
narrow end of the plate up against the cabinet front lip. A spacer and longer screws may be required if the lip is
deeper than 2”. See fig 3 and fig 4
2 ATTACH THE MOUNT TO THE MONITOR
3
1 FASTENING THE MOUNTING PLATE TO THE CABINET BOTTOM
NOTE: Do not over tighten the bracket mounting screws as damage to the monitors internal mounting threads could occur.
75mm & 100mm
VESA hole pattern
M o u n t i n g s c r e w s
