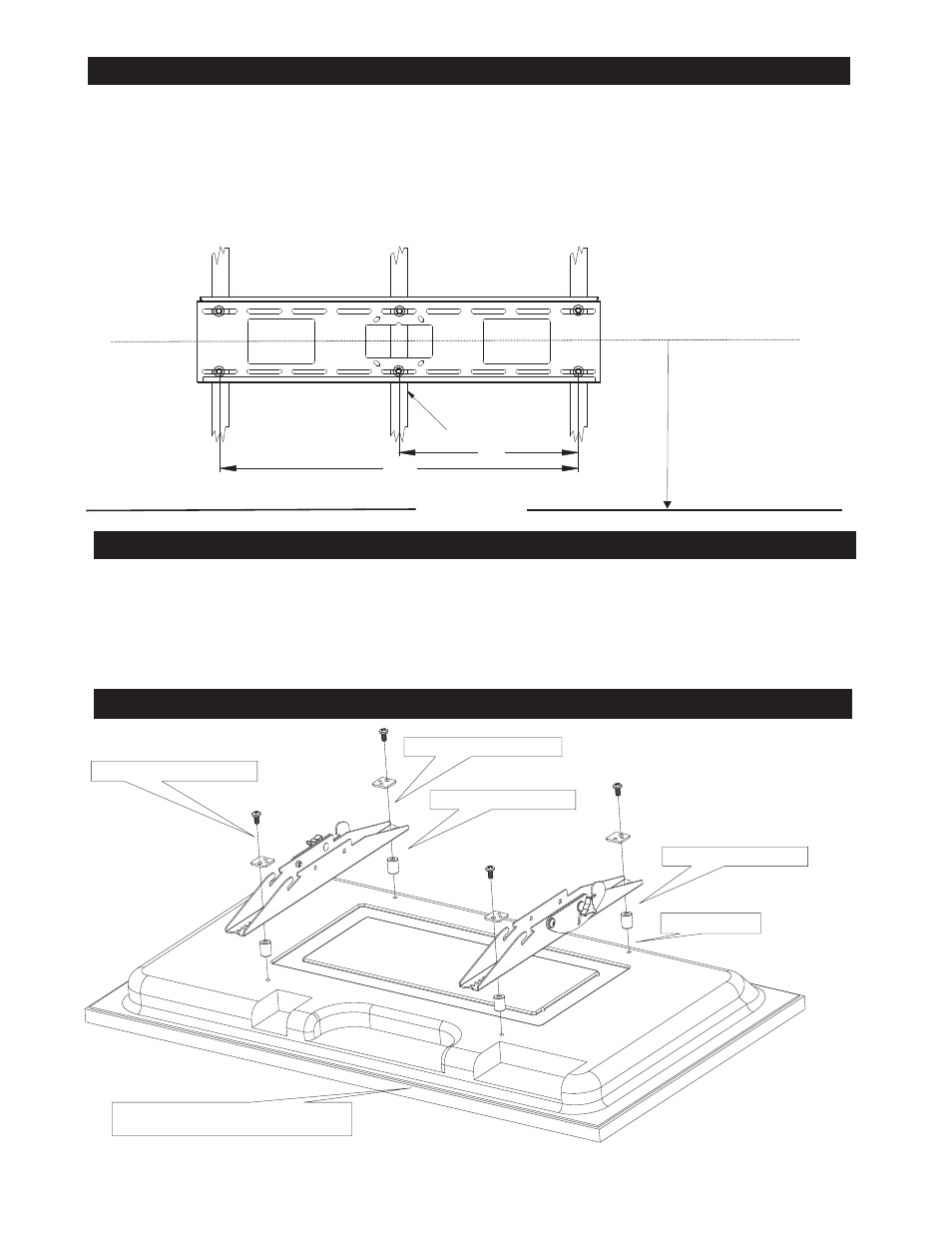

1. FASTEN MOUNTING PLATE TO WALL
Fig 2
2. SECURE THE DISPLAY BRACKETS TO THE MO NITOR
The bracket must be secured to the wall studs capable of at least (4) times the weight of the unit. The wall bracket should be mounted at the same horizontal center line
as the display center line ( viewing horizontal center line). Using the six lag bolts ( E ) and washers supplied ( D ), level and secure the mounting plate to the center of
the wall studs. Pre drill 3/16” (5mm) hole for lag bolts
FLOOR LINE
VIEWING
HORIZONTAL
CENTER LINE
Fig 3
Mounting hardware F,G,H,K,L,M
Square Multi-mount washer (J)
Panel display bottom edge
Display bracket ( A ) left
Plastic spacer ( I )
Display bracket ( A ) right
5
Lay the display panel face down on a protected surface.
Position the left and right hand bracket (A) with the holes facing towards the bottom.
See Fig. 3 Note bottom edge.
Using the proper screws (F,G,H) and multi washer (J) supplied position the brackets equal distance from the top and bottom edge ,
and tighten hardware.
Additional hardware is supplied (screws K,L,M) and plastic spacers (I) to be used if needed for different display mounting
applications.
Note: Do not over tighten the bracket mounting screws as damage to the displays internal mounting threads could occur.
. See Fig 2
WOOD STUDS
(std construction 2 x 4 studs/1/2” wallboard)
32"
16"
