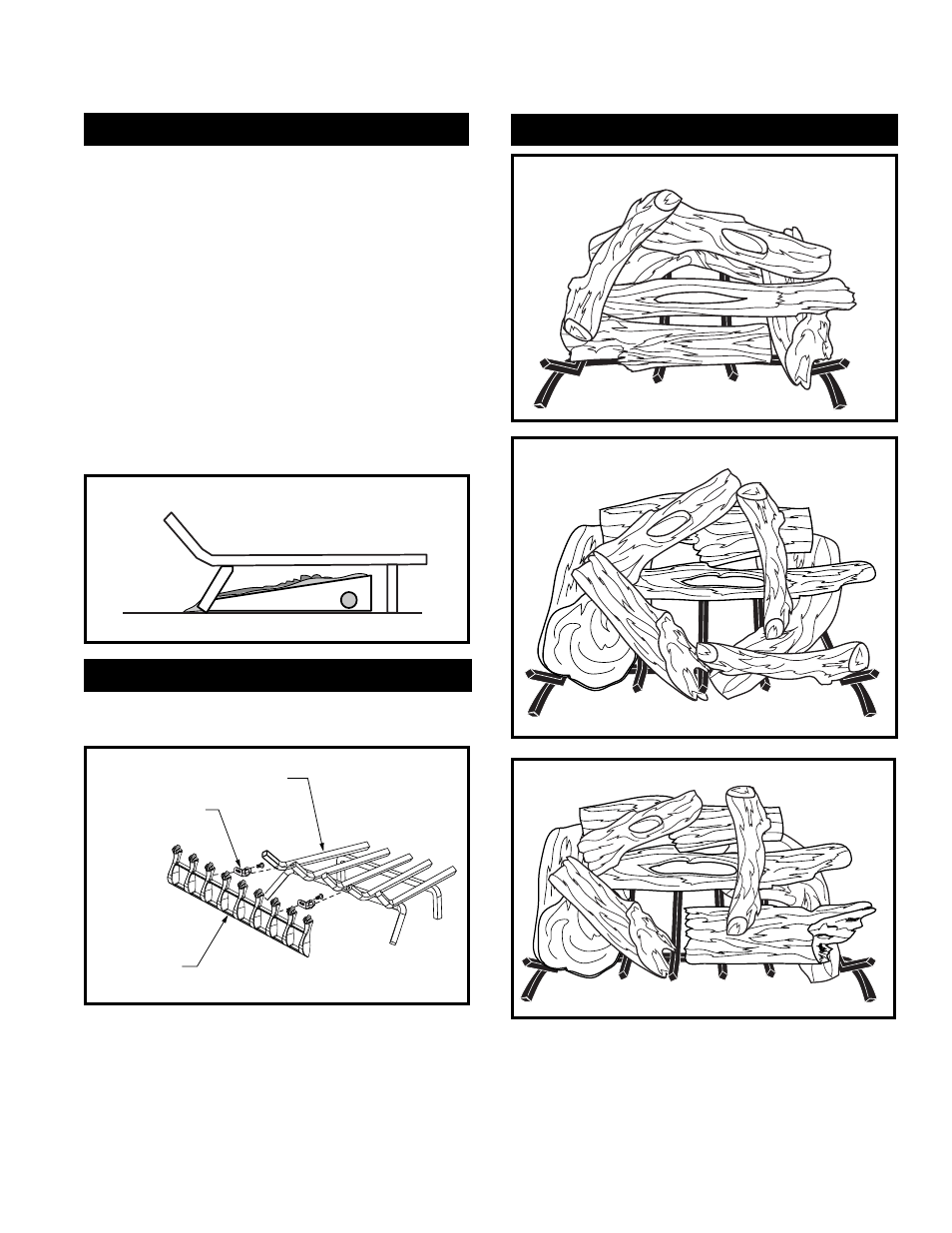

Grate and Log Placement
1. Place the grate over the burner pan so the front legs
of the grate are parallel to the front edge of the pan.
(Fig. 7)
2. Place the larger bottom logs onto the grate, leaving
as much space between them as possible. When
burning, the flames should come up directly between
the logs.
3. Place the smaller top logs diagonally onto the
bottom logs. The top logs can be arranged to
achieve your desired flame pattern. Be sure you
leave as much open space between the logs as
possible to minimize flame impingement and
sooting.
4. Open the bag of lava rock and spread the rocks onto
the fireplace floor around the burner pan for decora-
tive purposes.
Attach fettle to front of grate as shown in Figure 8.
Available Log Sets
LG330
18” Standard Round Log Set
24” Standard Round Log Set
LG331
30” Standard Round Log Set
LG332
Grate
Fettel Cast
Front Grate
Grate Clip
Figure 8
Figure 7
FP1149
Optional Fettle Cast Front Grate
