Diagram of md 208 – Magnum Dynalab MD-208 User Manual
Page 12
- 12 -
12. FREQUENCY DISPLAY – Shows the tuned frequency from 87.5 MHz thru to
108.5 MHz. This readout is controlled by the tuning control.
13. CENTER TUNE METER – Indicates the setting of the tuners front end, in normal
situations the tuner should be tuned so that the needle is in the center.

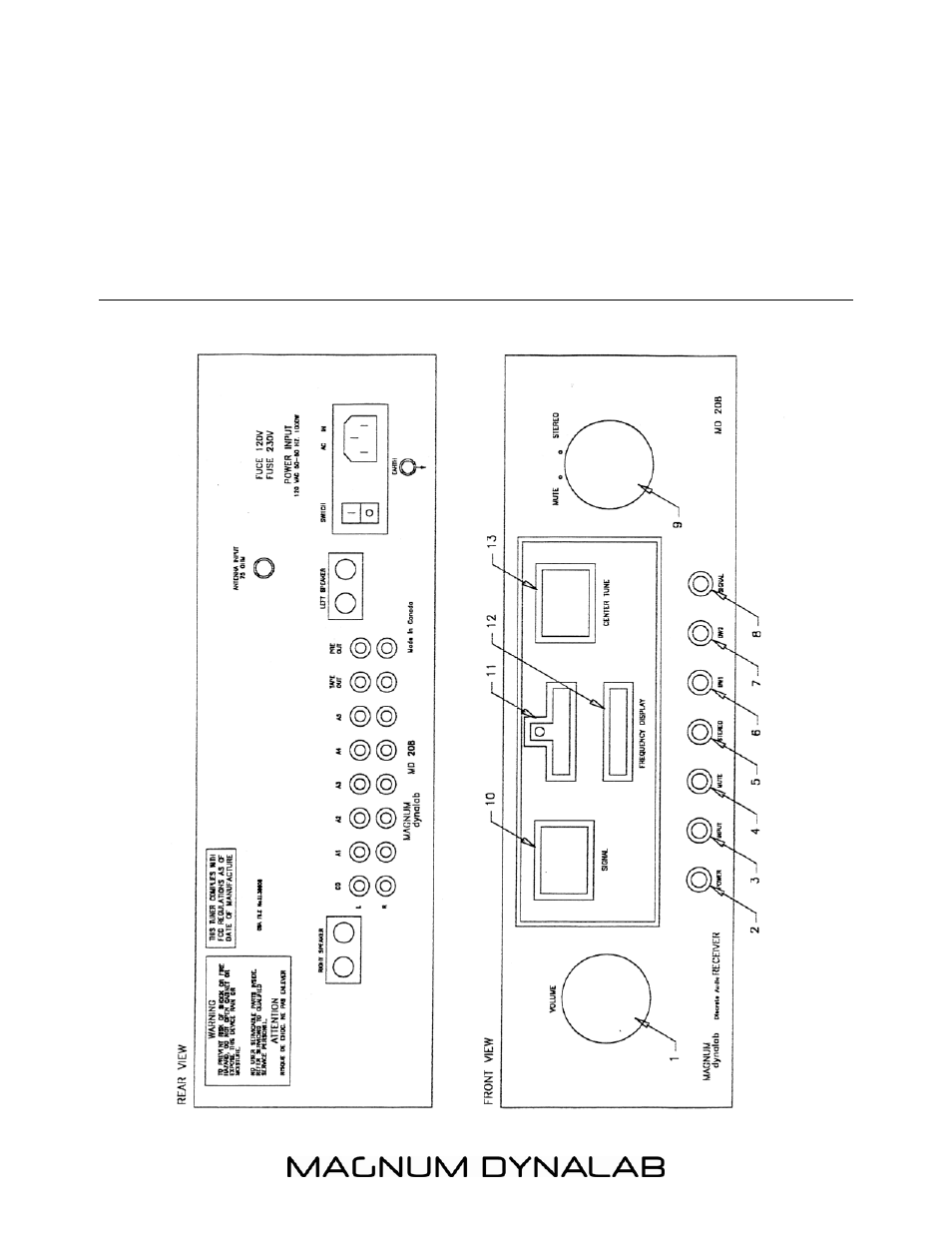

DIAGRAM OF MD 208
