skirt (A) up the barrel (B) all the way to the back edge of the knurled ring (E). If it will not go up all the way, the skirt (A) will have to be
turned while pushing it forward until it re-aligns with the ribs on the large plastic focusing ring (D). Once it slips over these ribs it will
go all the way up to the back of the knurled ring (E). Once the skirt (A) is against the knurled ring (E), again push the skirt forward to
close the gap between the knurled ring (E) and the face cap (F) and turn the knurled ring (E) 1/16th turn in either direction; then release
the forward pressure on the skirt and continue turning the knurled ring (E). You should hear / see the skirt push back into the locked
position. When the skirt (A) is back in its locked position, turning it will focus the light from spot to flood as usual.

NOTE: If the knurled ring (E) is moved forward and turned while the skirt is out of position, the mechanism could lock and prevent the
skirt from returning to its normal position. If this occurs, push the knurled ring forward (toward the flashlight’s head) and turn it slightly
(it will require less than 1/16 inch of a turn) until it clicks and backs away from the face cap (F). Then return the skirt to its normal position
by following instruction #4.

MAGLITE

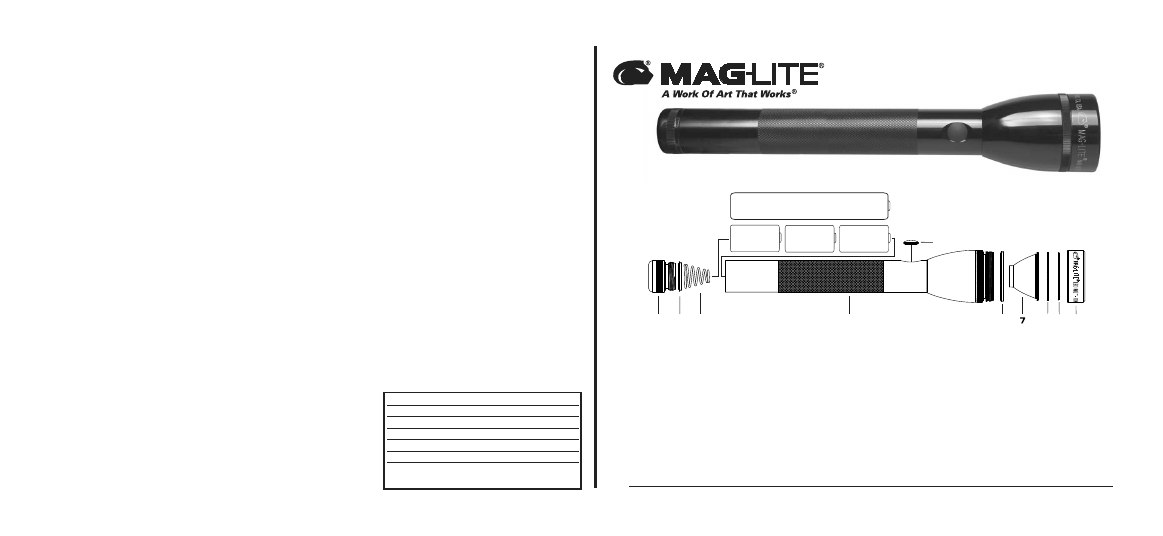

ML125™ LED FLASHLIGHT SPECIFICATIONS

Overall Length:

11.104 in.

282.042 mm

Barrel Diameter:

1.199 in.

30.455 mm

Head Diameter:

1.977 in.

50.216 mm

Weight without battery:

11.2 oz.

317.514 g

Weight with battery:

18.4 oz.

521.631 g

Batteries Required: (3) C-Cell size alkaline or supplied

NiMH rechargeable battery pack

8 9

NiMH Rechargeable Battery

C-Cell Alkaline

1 Tail cap

Capuchon

d’assemblage

Tapa posterior

2 Lip Seal, tail cap

Joint, à lèvre

Bouchon Arrière

Sello del Labio,
tapa posterior

3 Battery spring*

Ressort pour pile*
Resorte para pilas*

4 **Barrel Assembly

**Tube Assemblée
**Cilindro Montaje

5 Switch seal

Joint commutateur
Sello del interruptor

6 Lip Seal, face cap

Joint, anneau avant

tapa delantera

Sello del Labio,

7 Reflector

Réflecteur
Reflector

8 Clear lens

Lentille incolore
Lente transparente

9 O-ring, face cap

Joint, anneau avant
Rondana, tapa delantera

10 Face cap

Anneau avant
Tapa delantera

*Item 3 inserts into item 1 • La pièce 3 doit être insérée dans la pièce 1 • Inserte la pieza 3 dentro de la pieza 1
**Do not disassemble. *Ne pas désassembler. *No desarmar.

Runs on either NiMH rechargeable
battery (included) OR (3) C-Cell alkaline
batteries (not included)
