S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s 109 C o o p e r L i g h t i n g
M F T L A N D A U A R E A

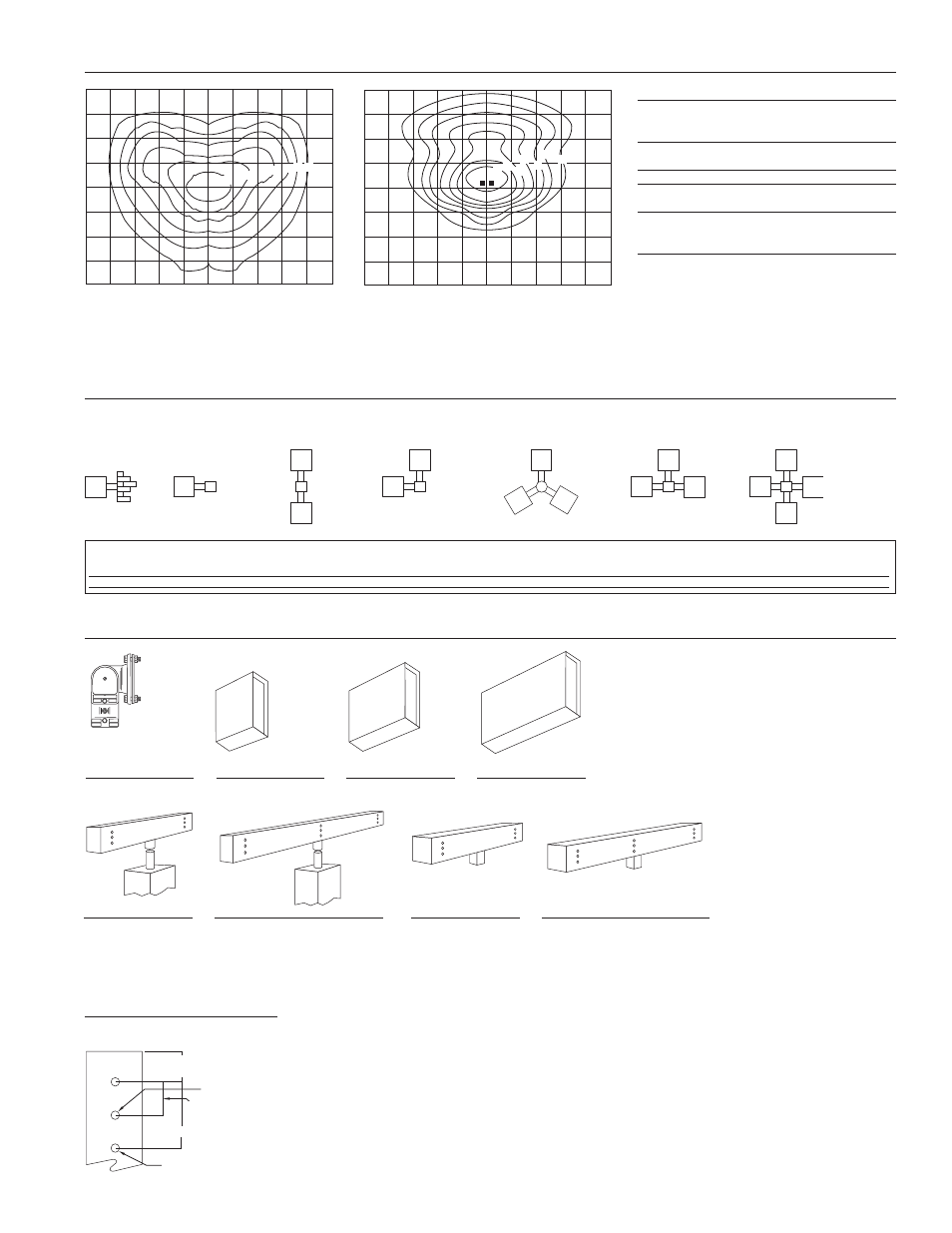

P H O T O M E T R I C S [ C o m p l e t e I E S f i l e s a v a i l a b l e a t w w w. c o o p e r l i g h t i n g . c o m ]
M O U N T I N G C O N F I G U R AT I O N S
M O U N T I N G S Y S T E M S
Wall Mount Arm Mount Single Arm Mount 2 @ 180° Arm Mount 2 @ 90° Arm Mount 3 @ 120°
(Round Pole Only) Arm Mount 4 @ 90° Arm Mount 3 @ 90°
D R I L L I N G PAT T E R N
T Y P E “ M ”
3/4'' [20mm]
dia. hole
(2) 5/8'' [16mm]
dia. holes
4 7/8'' [124mm]
2 7/16'' [124mm]
2 11/16''
[69mm]
O A 1 0 9 0
Slipfitter for tenon
mount 2 3/8" O.D.
O A 1 1 5 6
6" rectangular arm for
square pole
O A 1 1 5 7
12" rectangular arm for
square pole
O A 1 1 5 8
18" rectangular arm for
square pole
O A 1 1 5 9
Tenon-mounted cross-arm
for two units. For 3 1/2" O.D.
tenon.
O A 1 1 6 0
Tenon-mounted cross-arm for three units.
For 3 1/2" O.D. tenon.
I S B D - _ - 2 L
Tenon-mounted cross-arm
for two units. 4", 5", or 6"
square pole top.
I S B D - _ - 3 L
Tenon-mounted cross-arm for three units.
4", 5", or 6" square pole top.
NOTE: OA1156, OA1157, OA1158 or OA1161 must be ordered for each fixture when ordering OA1159, OA1160, ISBD-_-2L or ISBD-_-3L. Other mounting configurations available. Consult factory. 6" arms (OA1156, OA1167) cannot be used to mount multiple
fixtures at 90°.
F O O T C A N D L E TA B L E
Select mounting height and read across for footcandle values
of each isofootcandle line. Distance in units of mounting
height.
Mounting
Footcandles Values for
Height Isofootcandle Lines
A B C D E F G
MFT91M3D.IES
20' 50.0 20.0 10.0 5.00 2.00 1.00 0.50
MFT91MFT.IES
20' 50.0 20.0 10.0 5.00 2.00 1.00 0.50
4
3
2
1
0
1
2
3
4
5 4 3 2 1 0 1 2 3 4 5
A
B
C D E F
4
3
2
1
0
1
2
3
4
5 4 3 2 1 0 1 2 3 4 5
A
B
C
D
E
F
G
M F T 9 1 M 3 D . I E S
1000-Watt MH
110,000-Lumen Lamp
Type III MCO
M F T 9 1 M F T. I E S [ Q t y. 2 ]
1000-Watt MH
110,000-Lumen Lamp
Forward Throw
E.P.A. TABLE
SINGLE
DRILL PATTERN [W/Arm where applicable] 2 @ 180° 2 @ 90° 3 @ 90° 3 @ 120° 4 @ 90°
MFT “M” 2.7 5.4 6 8.5 8.5 9.75
NOTE: 1 Assumes 12" arm for 90° and 120° mounting configurations, 6" for all else.
