Assembly Instructions 4

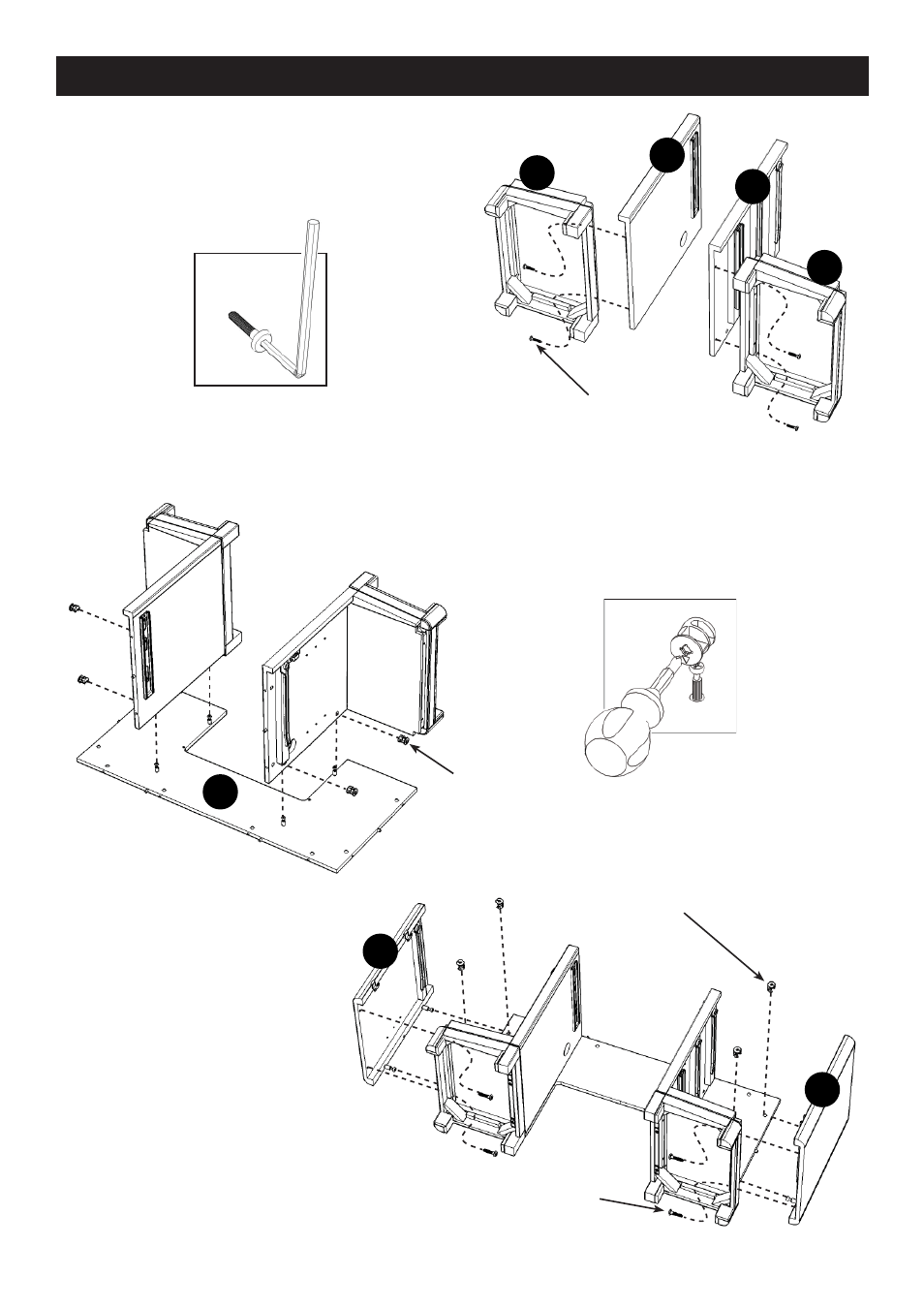

STEP 3
Attach Middle Panel (D) to Base (M) and Middle
Panel (E) to Base (N) with Head Cap Bolts.
(See Figure 3)
STEP 4
Attach units to Back Panel (F) with Cam Locks.
(See Figure 4)
STEP 5
Attach Side Panels (B) and (C)
to unit with Cam Locks and
Head Cap Bolts.
D
M
F
C
B
N
E
Figure 3
Figure 4
Head Cap Bolt
Head Cap Bolt
Cam Lock
Cam Lock
3/10
