Bradford White S-DW2-U65T6FRN User Manual

Installation instruction - supplement sheet, Danger

This manual is related to the following products:

S-DW4-U5036FRN S-DW2-TW-75T6BN

Table of contents

Document Outline

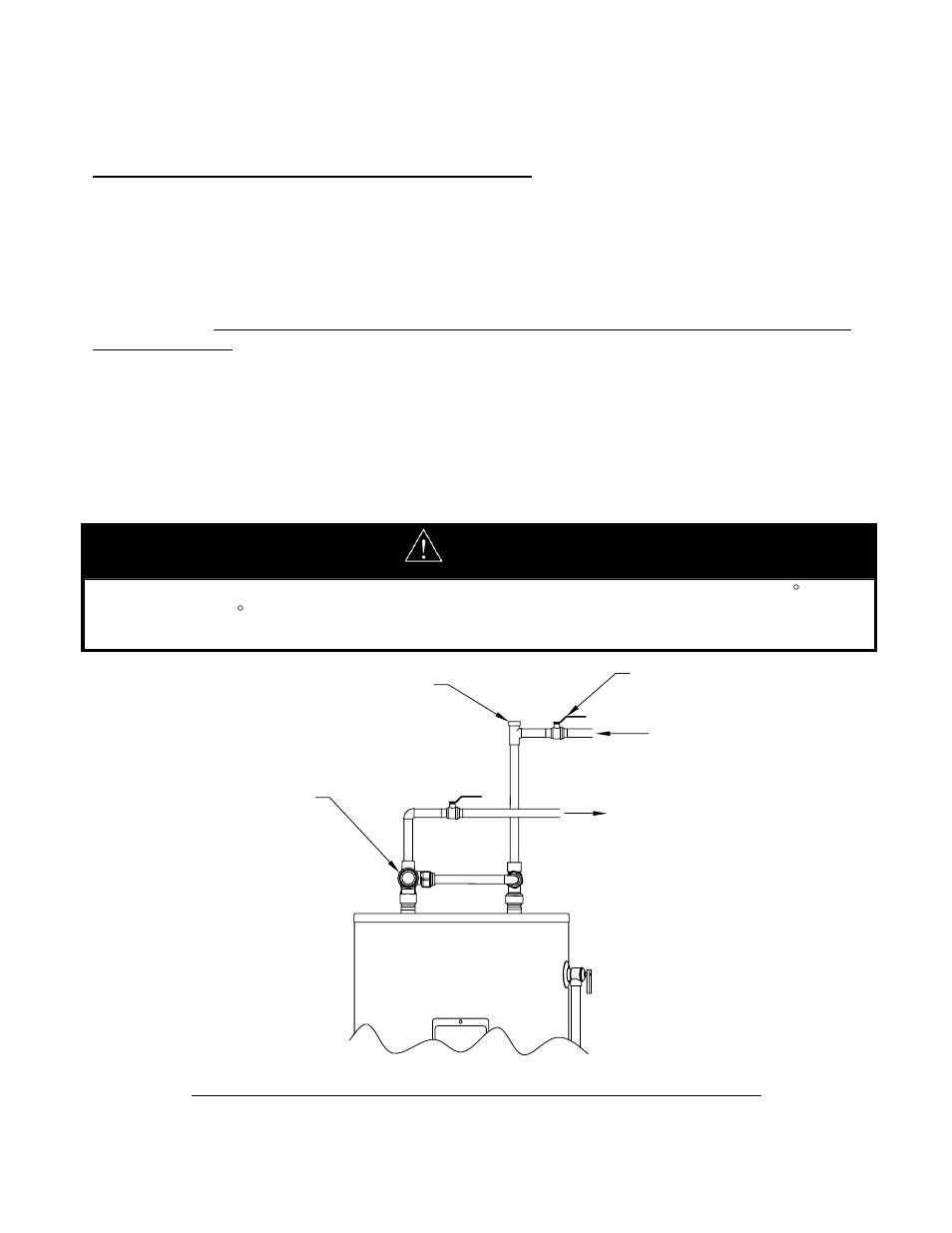

Figure 1 – Thermostatic Mixing Valve Piping Diagram for Tempered Water
Figure 2 – Solar Heating with a Filled, Closed System
Figure 3 – Solar Heating with a Drainback System
- Heat Exchanger Specifications
  - DOUBLE-WALL HEAT EXCHANGER – The solar water heater has a double-wall heat exchanger with a slight gap between the two tubes that makes up the heat exchanger coil. The ¾” female fitting provides an atmospheric vent for any fluid that enters the gap between the tubes. The heat exchanger has 14.2 ft2 of heat transfer surface area.
