27

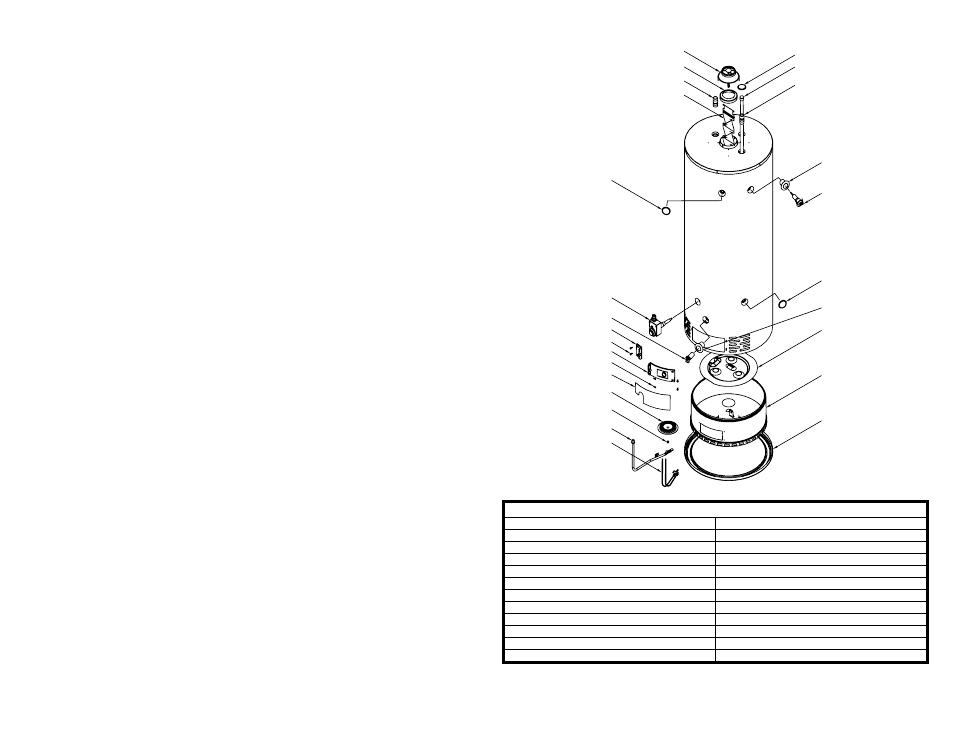

PARTS LIST AND DRAWING



























PART NAME AND DESCRIPTION

1. Draft Diverter

13. Hex Screw 10-12 x 3/4

2. Hole Closure

14. Radiation Shield

3. Flue Reducer

15. Inner Door (Right Side)

4. Magnesium Anode

16. Hex Screw 8-15 x 3/4

5. Nipple

17. Outer Door

6. Flue Baffle Assembly

18. Combustion Chamber

7. Dip Tube-Cold Water Inlet

19. Steel Burner

8. Escutcheon

20. Orifice

9. Temperature and Pressure Relief Valve

21. Gas Burner Feedline

10. Combination Gas Control and Thermostat

22. Jacket Base Pan

11. Drain Valve

23. Pilot Assembly

12. Inner Door (Left Side)

1

3

5

6

11
12

17

19

20

21

22

18

14

9

8

7

4

2

10

15

13

16

23

2

2

8
