6
BURNER FLAME CHECK
(Replaces pg. 22 in instruction manual.)
Steel Burner: These models are equipped with self adjusting air mixture and do not
have an adjustable air shutter (See Figure 3). At periodic intervals, a visual check of
the main burner and pilot flames should be made to determine if they are burning
properly. The main burner flame should light smoothly from the pilot.

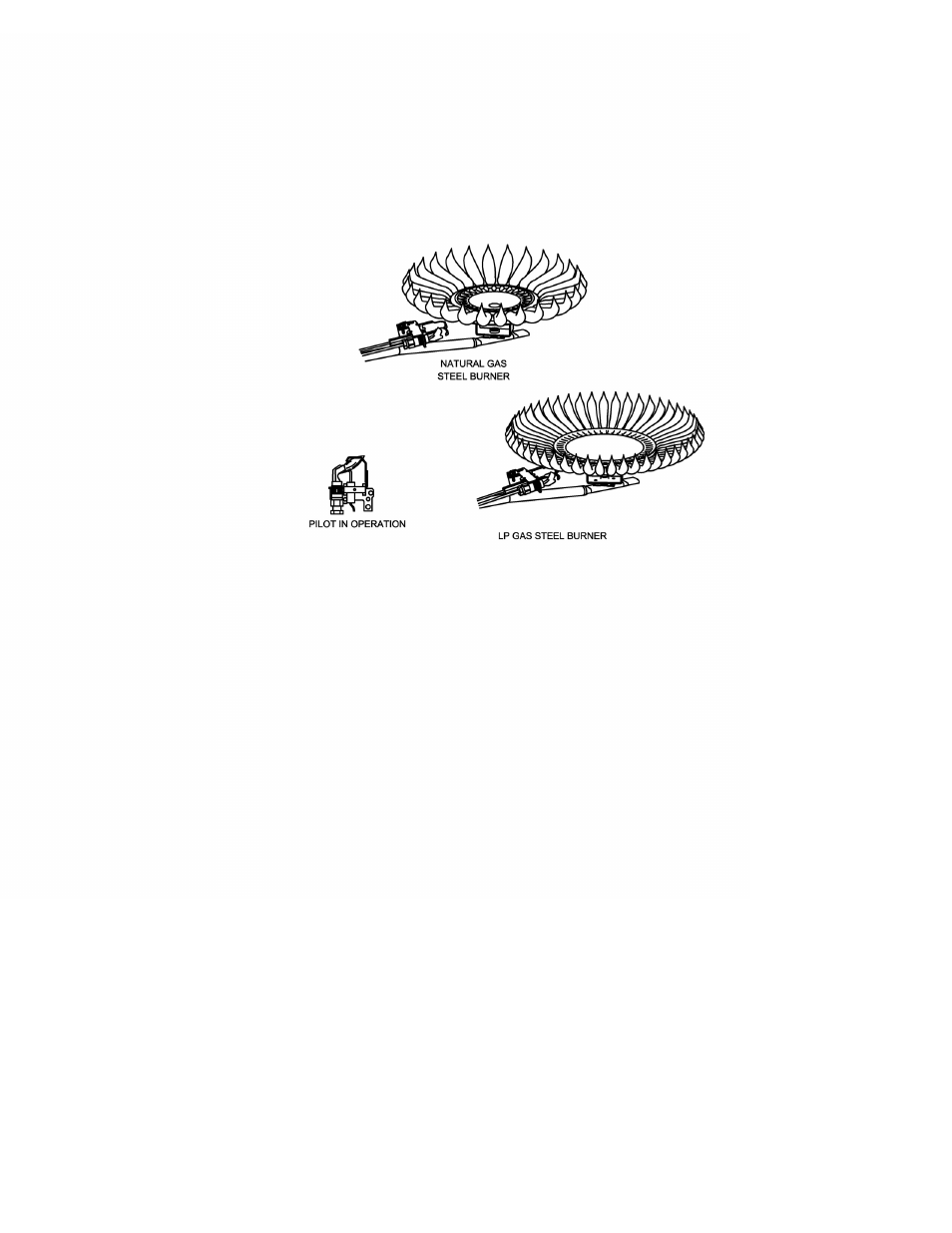

Figure 3. Burner and Pilot Assembly Used.
