Page 10 of 16 SA-430-17 Installation and Operating Instructions
CP5010B 03/31/10
OPERATION
Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage.
Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
(Ref. OSHA 1910.95 for occupational noise exposure guidelines)
GENERAL
This unit is designed for easy operation under the stress associated with high-speed pursuit.
Most siren functions are accessible with one simple motion without repetitive activation of
switches or automatic timed switching that can interfere with desired operation.

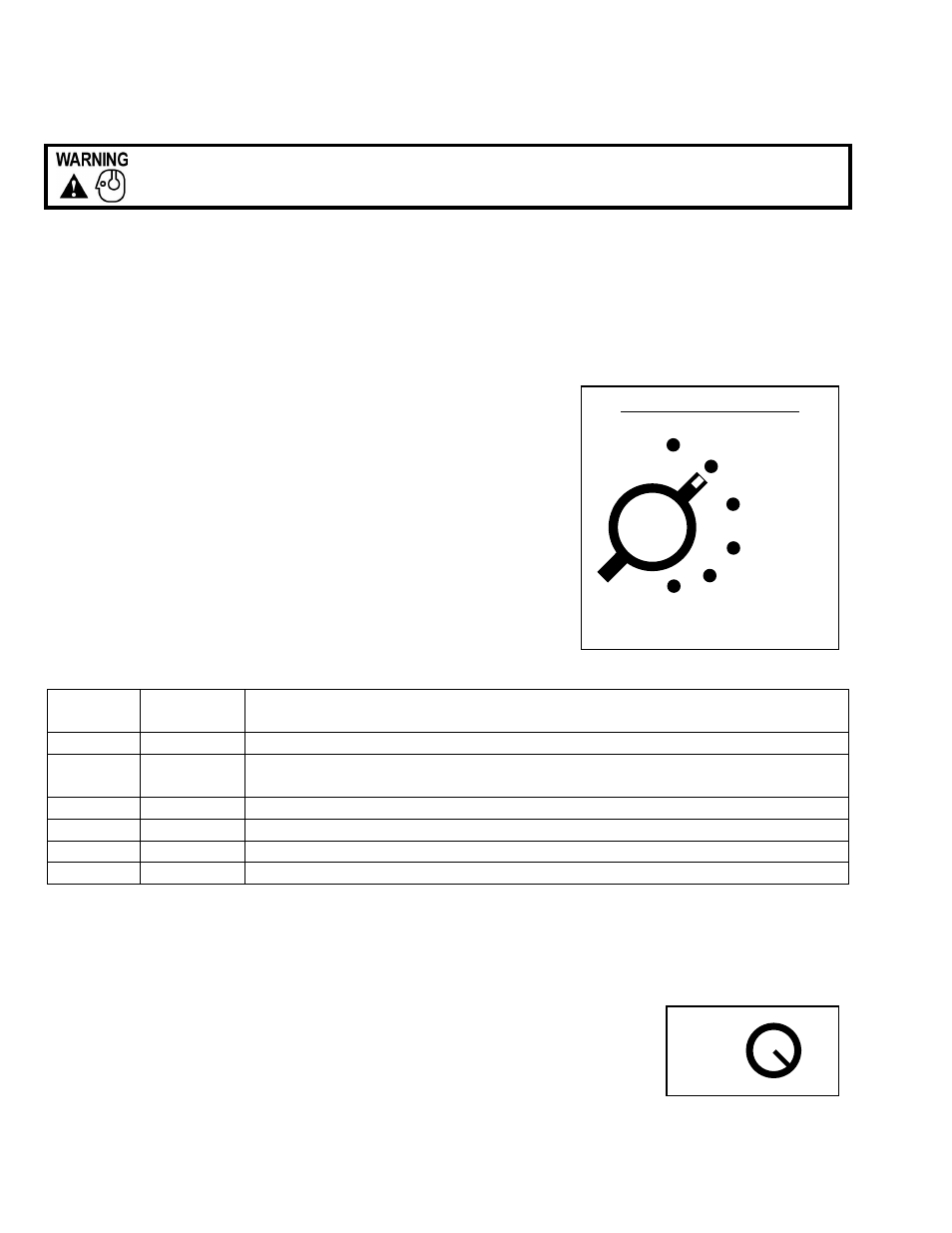

SELECTOR SWITCH
The 6-position rotary selector switch controls the primary operating mode of the siren.
Radio - Also known as Radio Repeat, this function amplifies
a radio speaker input for re-broadcast outside the vehicle.
The radio must be connected and RADIO VOLUME
ADJUSTed for this mode to function.
Standby - A silent mode that may be overridden anytime with
the Siren push-button.
Mech - A simulated mechanical siren tone used anytime.
Wail - A slower changing tone used on highways.
Yelp - A rapidly changing tone used in congested areas.
Phaser - A very rapidly changing tone used at intersections
or in highly congested areas. May be optionally replaced with
Two-Tone which is two alternating frequencies like a
European HI-LO. See OPTION SWITCHES section.
Selector
Switch
Operating
Mode Activate Siren push-button or Auxiliary Input Override
Radio Radio No Change
Standby Silent Horn (Default) or Manual Mech or Manual Wail or HRC2
(See SIREN SWITCH section)
Mech Mech Horn (Default) or Manual Mech (See SIREN SWITCH section)
Wail Wail Horn
Yelp Yelp Horn
Phaser Phaser Horn
MICROPHONE (PA Override)
The noise-canceling microphone is used for public address operation and overrides any
function when the push-to-talk button on the side of the microphone is pressed.
PA VOL
This control adjusts the PA volume. With the vehicle parked, set the PA
volume to the maximum level with no feedback (squeal).
SELECTOR SWITCH
RADIO
STBY
MECH
WAIL
YELP
PHASER
PA
VOL
