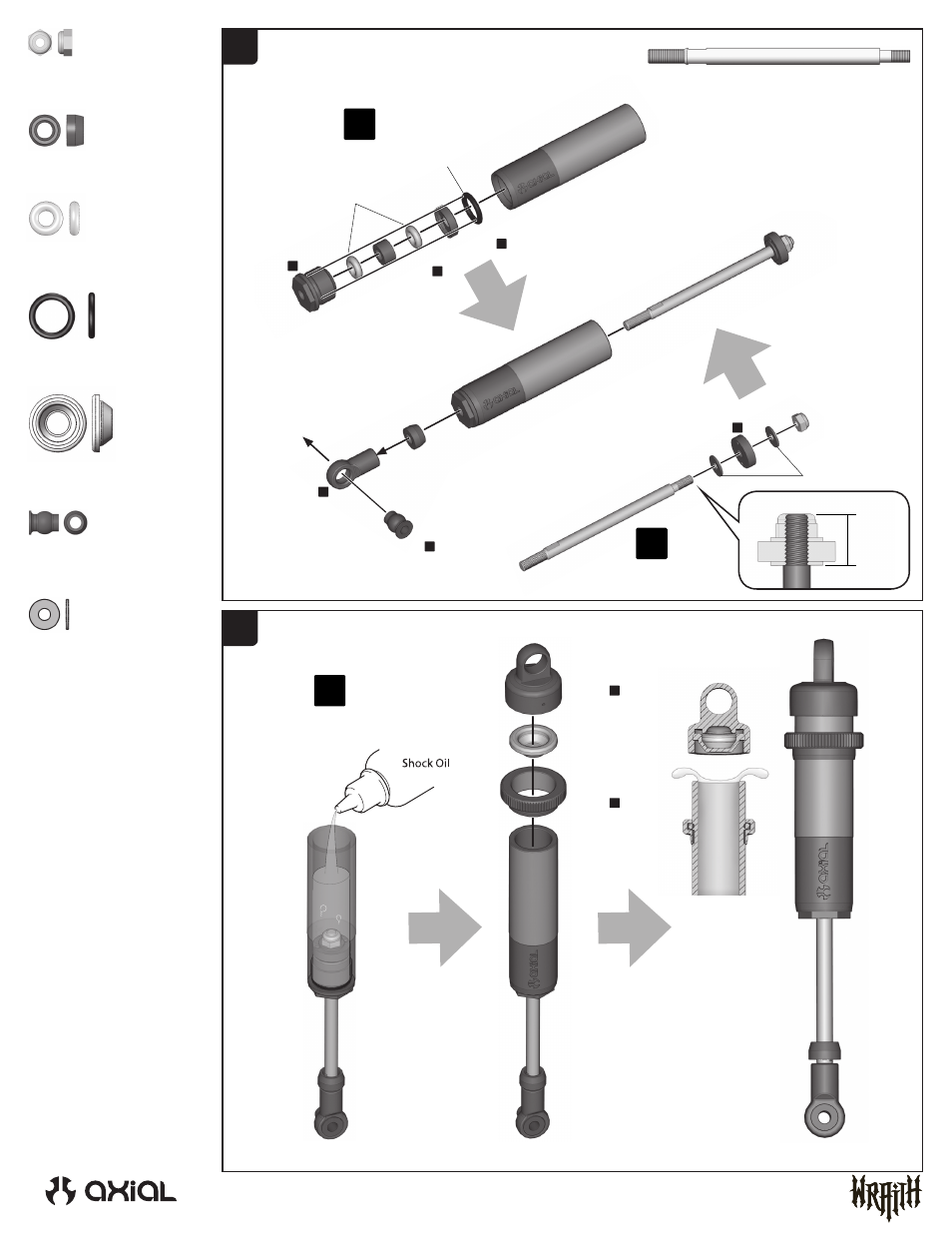

Axial Racing AX90031 - Manual (Page 20)

20
x4
Do Not
Over
Tighten
AX80036
AXA1202
AXA1184
AXA1069
AXA1041
AX30155
AX30113
x4
AX30112
8
x4
AX80033 3
AX80035 2
AX80035 5
AX80035 1
AX80034 1
AX80035 3
AX80035 4
AX80018 1
7
AXA1184
O-Ring 7.5x1.5mm
x4
AXA1202
O-Ring 3.5x2mm
x8
AX30113
Rubber Bump Stop 3.6x7x4
x4
AX30155
Shock Shaft 3x59.5
x4
AX30112
Shock Diaphragm 13x4.5mm
x4
AXA1041
M2.5 Nylon Lock Nut
x4
AX80018
Hardware Parts Tree
x4
AXA1069
WASHER 2.7x6.7x0.5
x8
