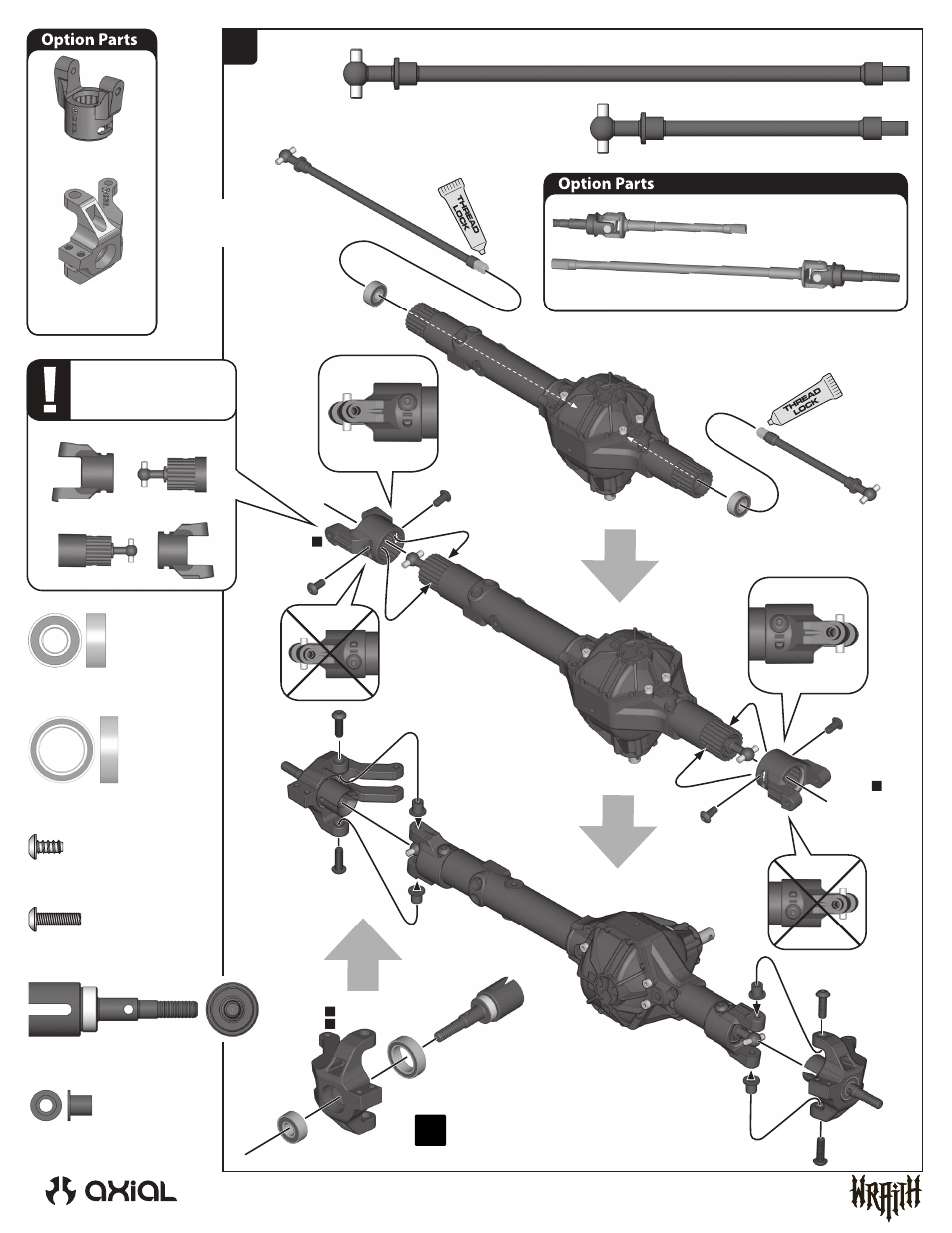

Axial Racing AX90031 - Manual (Page 17)

17
Note Direction
AXA115
M3x10mm
x4
x2
x1
AX30419
Solid Axle Dogbone 7x69mm
x1
AX30419
Solid Axle Dogbone 7x125mm
LEFT
Front
Rear
Front
Rear
RIGHT
3
AX30419
AXA1221
AXA1221
AX80061
AX80061
AXA115
AX30450
AX30450
AX30450
AX30450
AXA115
AXA115
AXA115
AXA1230
AX30368
AXA1221
AX30419
AXA433
AXA433
AXA433
AXA433
Front
2
1
AX80062 1
AX80062 1
AXA1221
Bearing 5x11x4mm
x4
AXA1230
Bearing 10x15x4mm
x2
AX30368
Axle 6x39mm
x2
AXA433
M3x6mm
x4
AX30450
Flange Pipe 3x4.5x5.5
x4
AX30762
Aluminum C Hub Carrier
AX30760
Aluminum Steering Knuckle
AX30780
Universal Joint Axle
