GL3300 8GD OPTION 2
FITTING THE 8GD OPTION
The 8GD option is supplied as a pre-tested assembly to be installed in the Allen & Heath GL3300 console. It
enables access to all 8 group outputs on impedance balanced pins of a female 25 way D type connector.
Access is required to the console internal assemblies with soldering of harness wiring.
THIS WORK SHOULD ONLY BE CARRIED OUT BY TECHNICALLY COMPETENT PERSONNEL.
1. CHECK THE CONTENTS:
Please check the circuit board assembly and associated components are supplied with the kit.

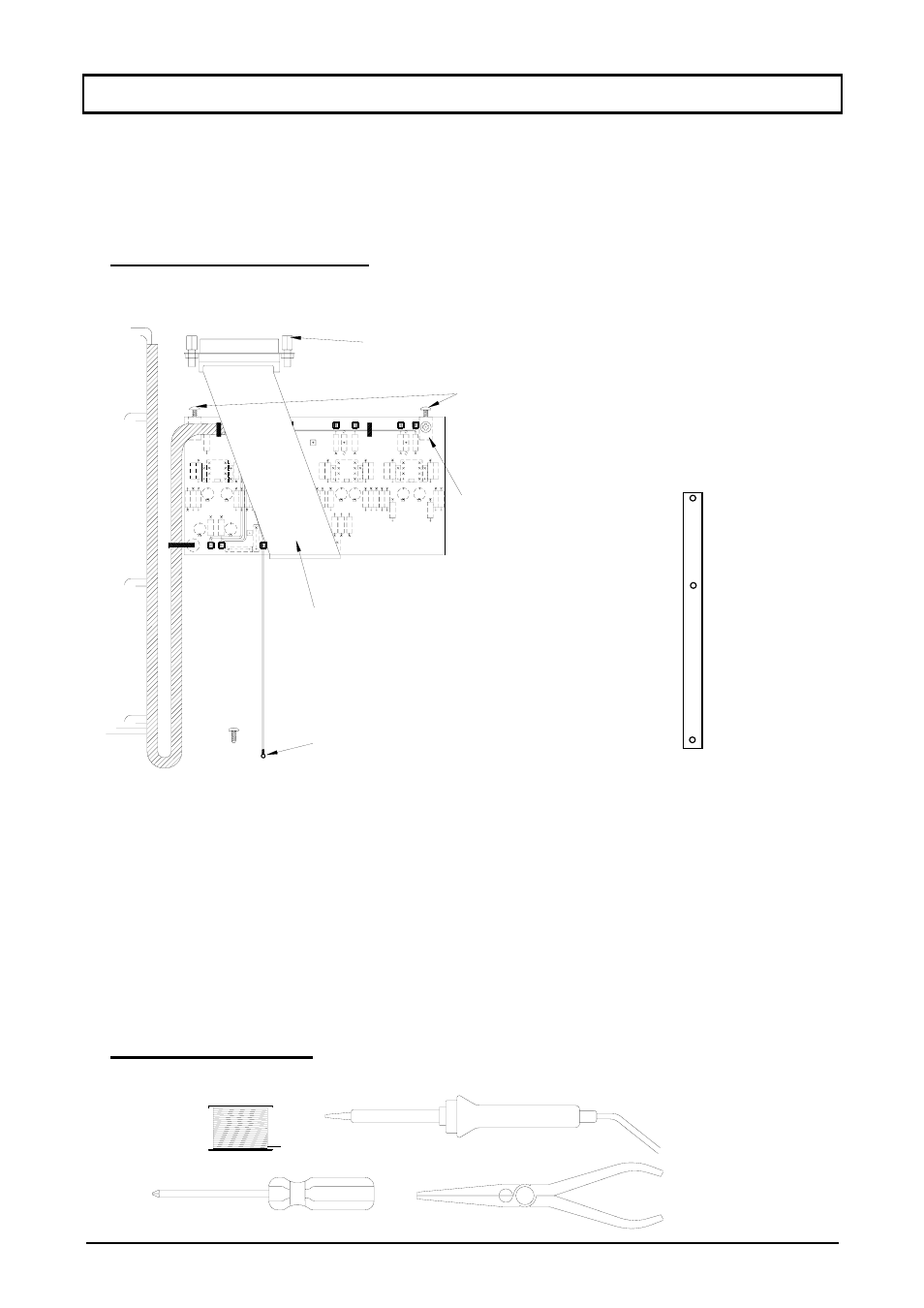

fig. 1
Contents:
1x 8GD circuit board assembly with interconnecting harness and mountings already fitted.
1x 8GD ribbon harness with D type connector fixings already fitted.
1x blanking plate
1x 6AB screw
1x 8GD Fitting instructions (AP3222)
2. TOOLS REQUIRED:
2x D type connector fixing already fitted
Green wire with solder tag
and fixing screw
Ribbon harness with 25 way
D type connector fitted
2x Mounting block
2x fixing screws
already fitted
Blanking plate
SOLDER SOLDERING IRON
with small tip
1pt CROSS POINT LONG NOSE
