8. Operating Qu-Pac
8.1 Mixing using the Front Panel Controls
Select a channel

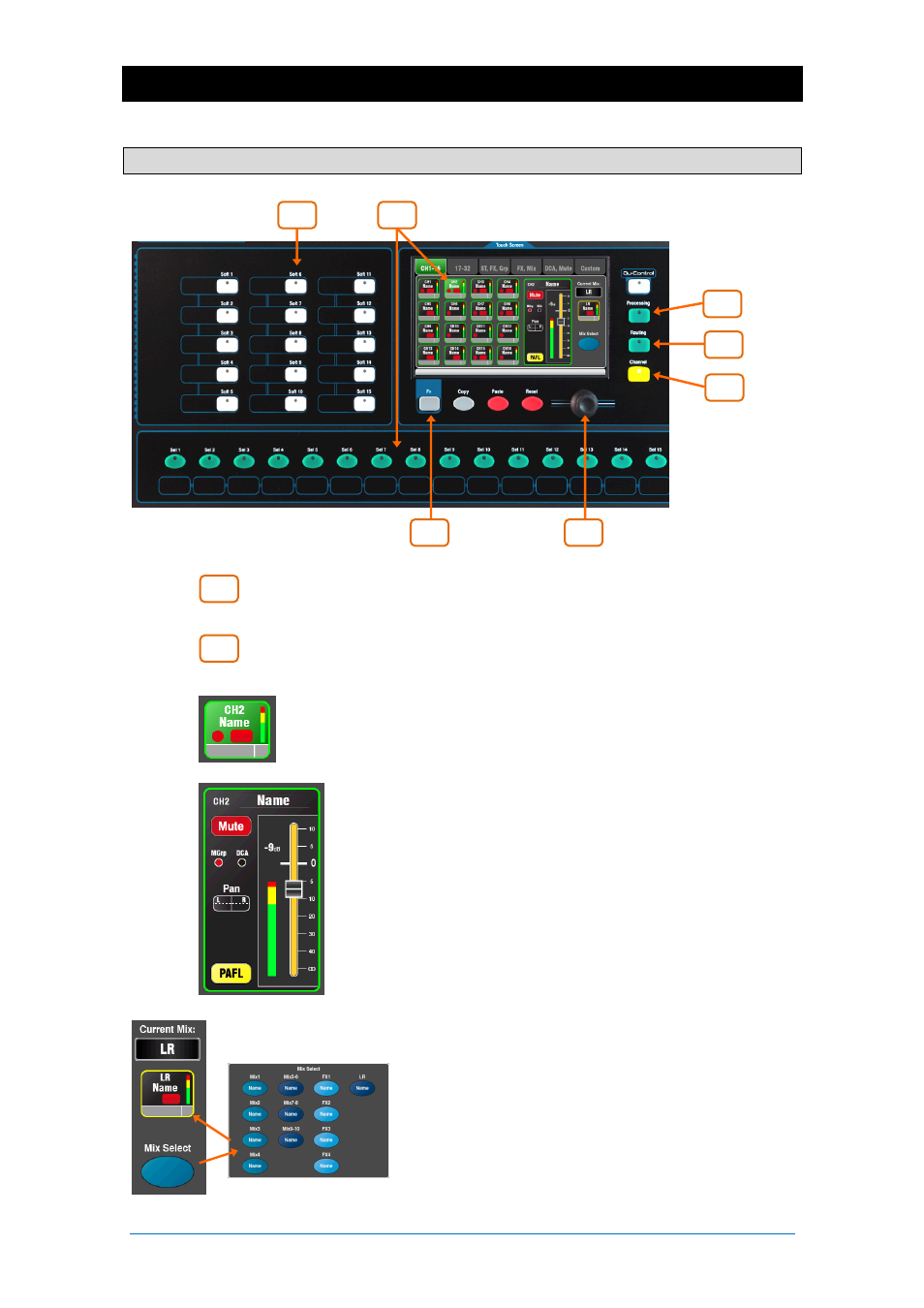

- Press a Custom Sel key or touch a select button
in the Channel screen to select a channel for editing.
Channel screen
- Select any channel for editing, and adjust its fader
and send levels using the ‘virtual fader strip’ and screen rotary control.
Any Qu channel, FX or master can be accessed using the tabs in
this screen. Each select button also displays the current level,
mute status and metering providing a useful overview of the mix.
The ‘virtual fader strip’ presents a screen version of the
physical controls found on the other Qu mixer models. This
includes the Fader, Pan control, Mute button, Mute/DCA
group status, PAFL button and channel meter.
Touch the fader to highlight it and use the rotary to adjust its
level. The current dB value is displayed.
Touch the Pan control to highlight it and use the rotary to
adjust its position.
Touch PAFL to listen to the channel signal in the
headphones monitor and view it on the RTA (real time
analyser) screen. Use the Setup / Audio / PAFL screen to
set the PAFL (pre-fade and after-fade listen) options. You can
set a SoftKey to Clear PAFL selections.
Touch the Mix Select button to choose the
current mix. A popup presents a screen layout of
the physical Mix keys found on the other Qu
models. Touch a mix button to change mix.
If a mix other than LR is selected then the faders
turn blue to show that you are adjusting the
channel sends to that mix. The mix master select
button follows the current mix.
