Sierra TM Modesty Panel - Assembly Instructions

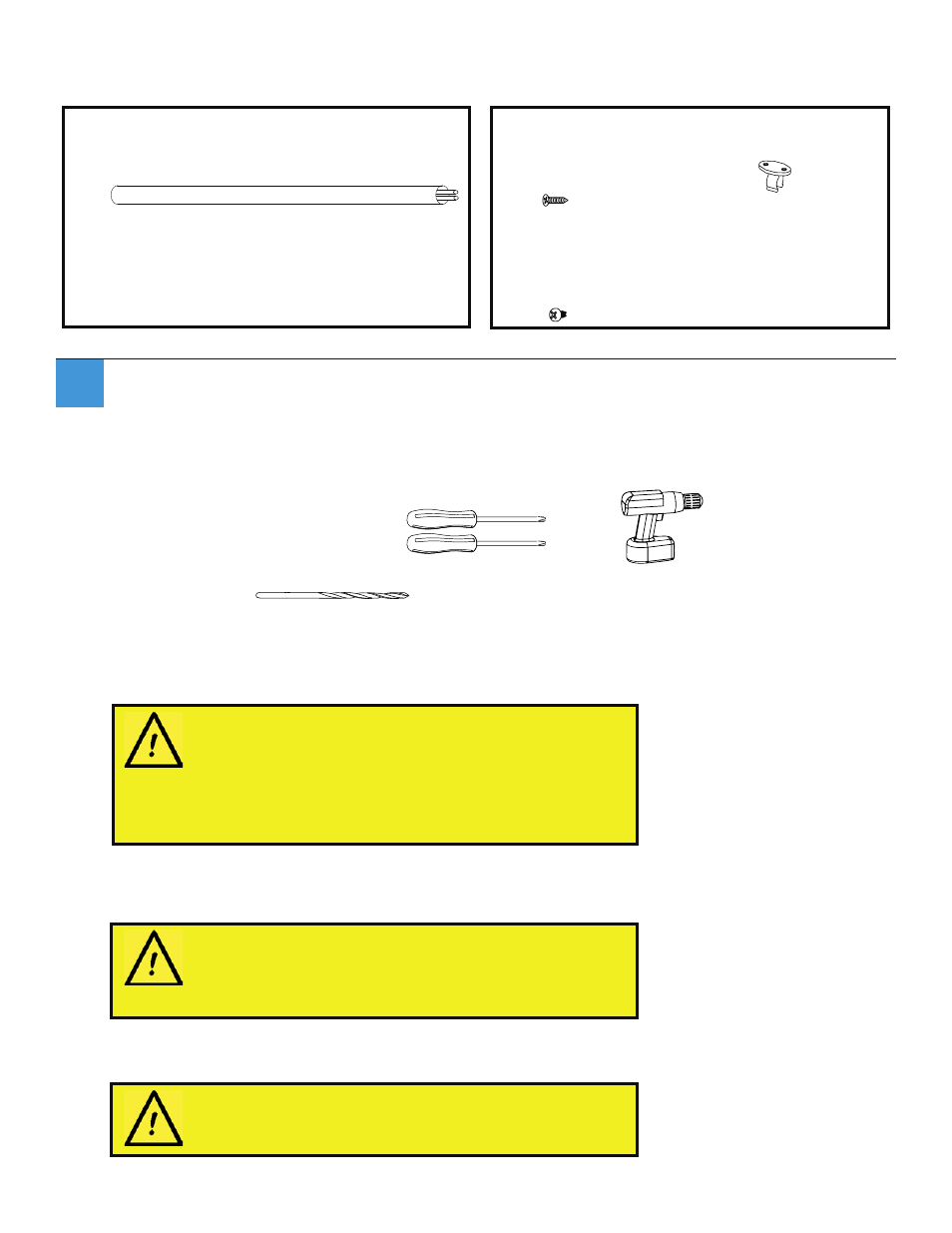

List of Parts, grouped by package
D
C-Clip
Qty: 3
A
Rolled Up Modesty Panel
with 2 Aluminum Tubes
Qty: 1
1
Verify that you have all the hardware and tools needed for the assembly
Check your packages against the list above to verify that you have all the parts needed.
You will also need the following tools:
#2 tip Phillips screwdriver or drill bit
#3 tip Phillips screwdriver or drill bit
⅛" pilot drill bit
or
B
#8 x .75 Phillips head
Screws
For Laminate Tops only
Qty: 6
Important Note
Raise workcenter to its highest position for ease of
installation.
Important Note
You might need to reposition the control box if it is
in the way of the Modesty Panel assembly! Do this
before proceeding.
C
#10-24 x .38 Pan head
Type 23 Screws
For Silhouette Tops only
Qty: 6
Important Note
If you have a Silhouette Top, you will need the
special Drill Kit for Silhouette Tops. If you use a
regular drill bit, you will damage your worksurface.
To order your Drill Kit, call Customer Service and
ask for part #4400303 (the “Silhouette Drill Kit”).
