NOTE: The cooling unit can be installed with the front of the unit flush with
the inside of the wall. Construct a shelf outside the room accordingly.

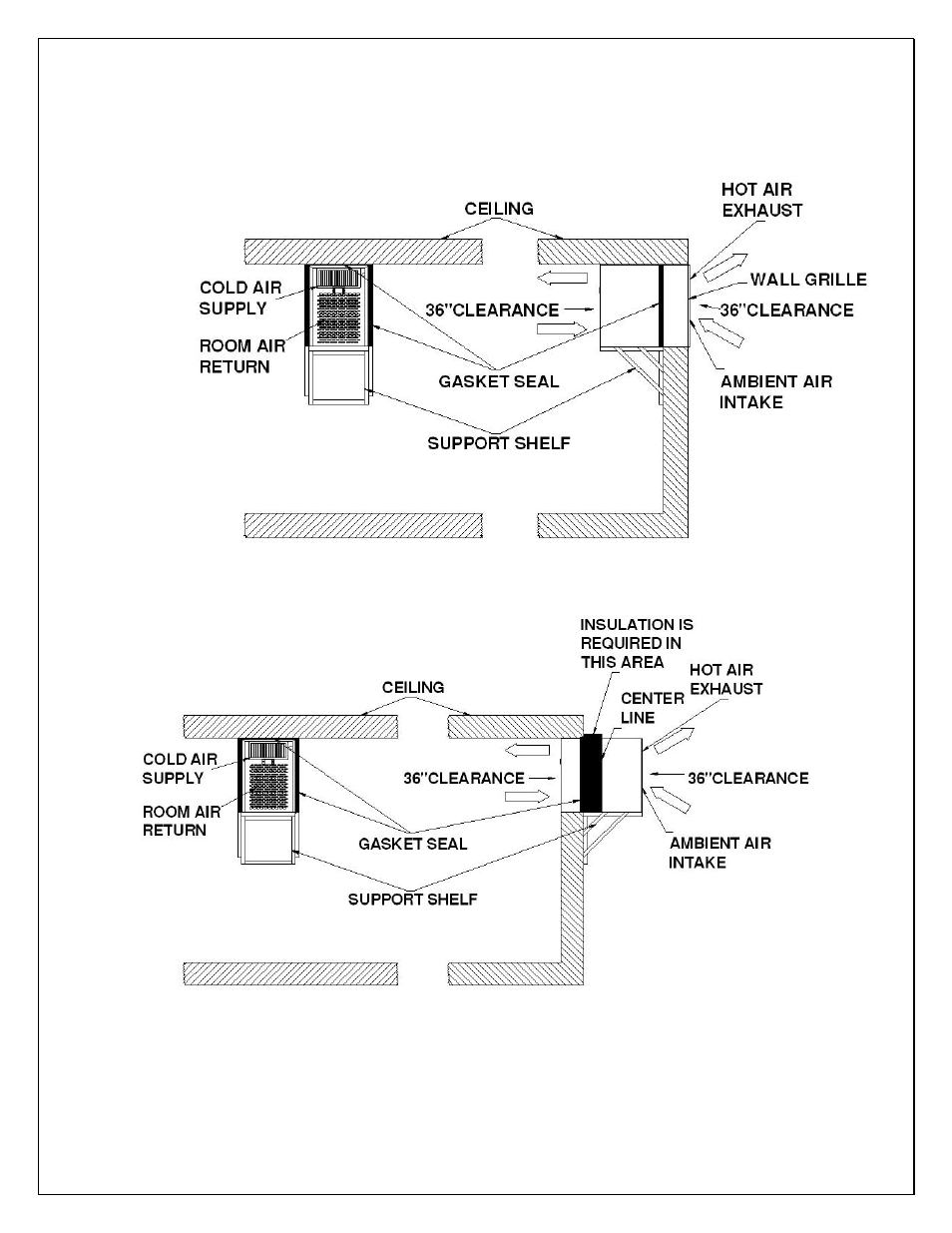

Fig. 2.9 THROUGH-WALL INSTALLATION (OUTSIDE WALL FLUSH)

Fig. 2.10 THROUGH-WALL INSTALLATION (INSIDE WALL FLUSH)
