Page -22- Clarke ® Summit Operator's Manual
Clarke ®
Summit Wet/Dry Vacuum

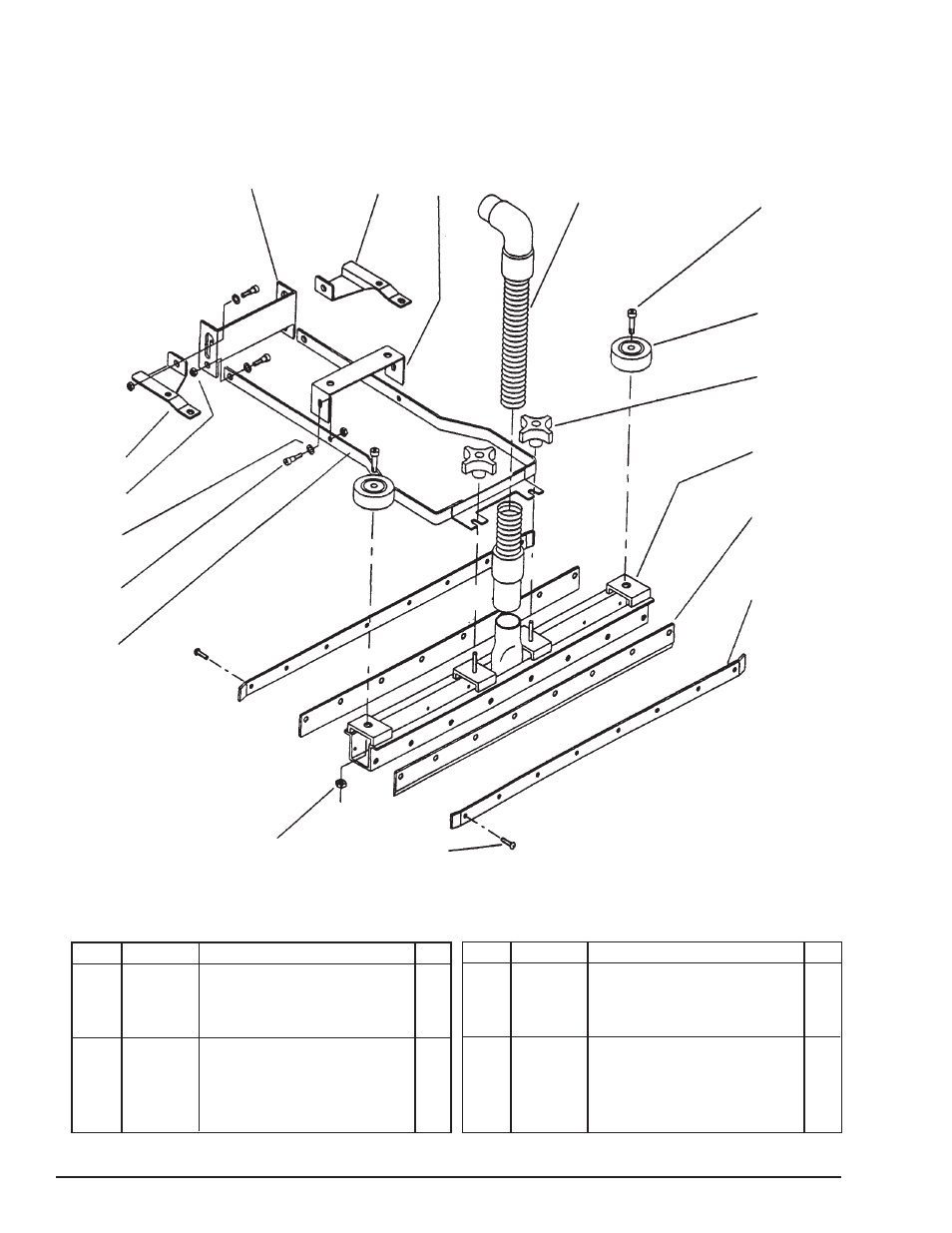

Squeegee Assembly (14605A) Drawing and Parts List 9\00
Ref. Part No. Description Qty
1 66407A Pedal, SQ. Lift 1
2 69513A Support, Pedal Left 1
3 69514A Support, Lift 1
4 30424A Hose, Vac SQ. 1
5 960953 Bolt, Shoulder 3 /
8
x1 2
6 419702 Wheel 2
7 55535A Knob 2
8 63425A Frame Weldment, SQ. 1
Ref. Part No. Description Qty
9 30940A Blade, SQ. 2
11 66963A Retainer, SQ. Blade 2
12 85383A Screw 10-32 x 3 /
4
16
14 65434A Lift, Weldment SQ. 1
15 960952 Bolt, Shoulder 3 /
8
x 3 /
8
6
16 980645 Washer SS 6
17 81112A Nut, 5 /
16
-18 8
18 69512A Support, Pedal Right 1
(Instruction Sheet 78552A Rev.A)
1
2 3
4
5
6
7
8
9
11
12
17
14
15
16
17
18
