Cub Cadet SLTX1054 User Manual
Page 28

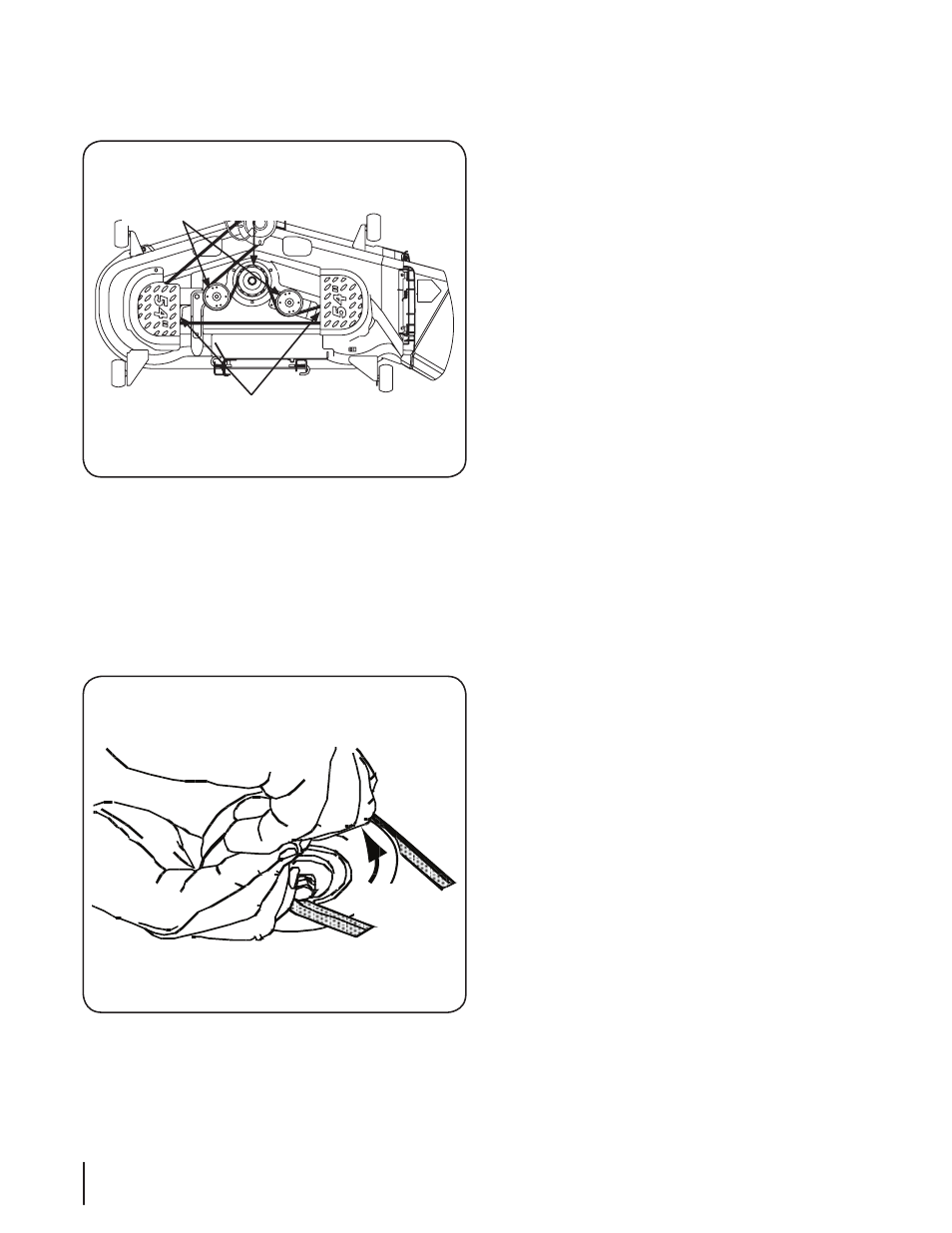

To place the new belt begin by routing the belt around the
5.
two outer spindle pulleys, then around the front spindle
pulley as shown in Fig. 7-8.
Route the belt around the two deck idler pulleys as shown
6.
in Fig. 7-8.
Retighten the belt keeper rod loosened earlier.
7.
Remount the belt guards removed earlier.
8.
Re-install the deck making sure the belt remains routed
9.
around the pulleys as instructed.
Pull the right side of the belt and place the narrow V side of
10.
the belt into the PTO pulley. See Fig. 7-9.
While holding the belt and pulley together, rotate the
11.
pulley to the left (See Fig. 7-9). Continue holding and
rotating the pulley and belt until the belt is fully rolled into
the PTO pulley.
Front Spindle
Pulley
Outer Spindle
Pulleys
Deck Idler
Pulleys
Figure 7-8
PTO Belt
Rotate
Pulley
Figure 7-9
28
s
ectiOn
7— s
ervice
