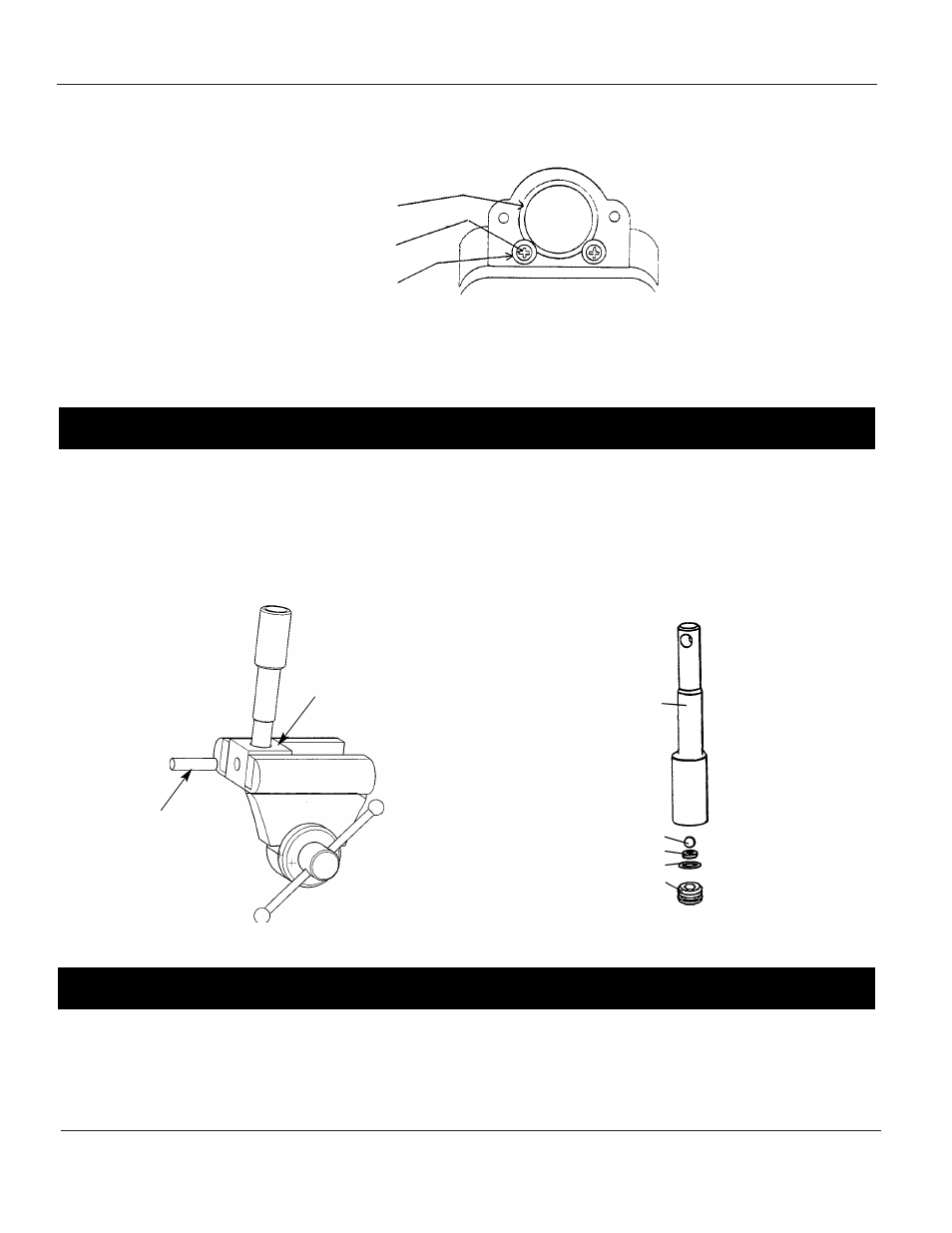

Gearbox Sleeve Bearing Replacement
1
2
3
Ref. No. Description Part Number Qty.
1 Sleeve bearing 331-061 1
2 Washers 331-103 2
3 Screws 331-197 2
NOTE: When replacing item 1, cover the outside of the sleeve with clear silicone prior to inserting into cover assembly.
Parts List for Gearbox Sleeve Replacement
Ref. No. Description Part Number Qty.
1 Piston rod 331-708 1
2 Ball 331-027 1
3 Seat 331-026 1
4 O-ring Teflon 331-100 1
5 Seat retainer 331-314 1
Parts List for Piston Rod, Upper Check Valve
Piston Rod and Upper Check Valve
331-195
331-196
1
2
3
4
5
