Page 4/7

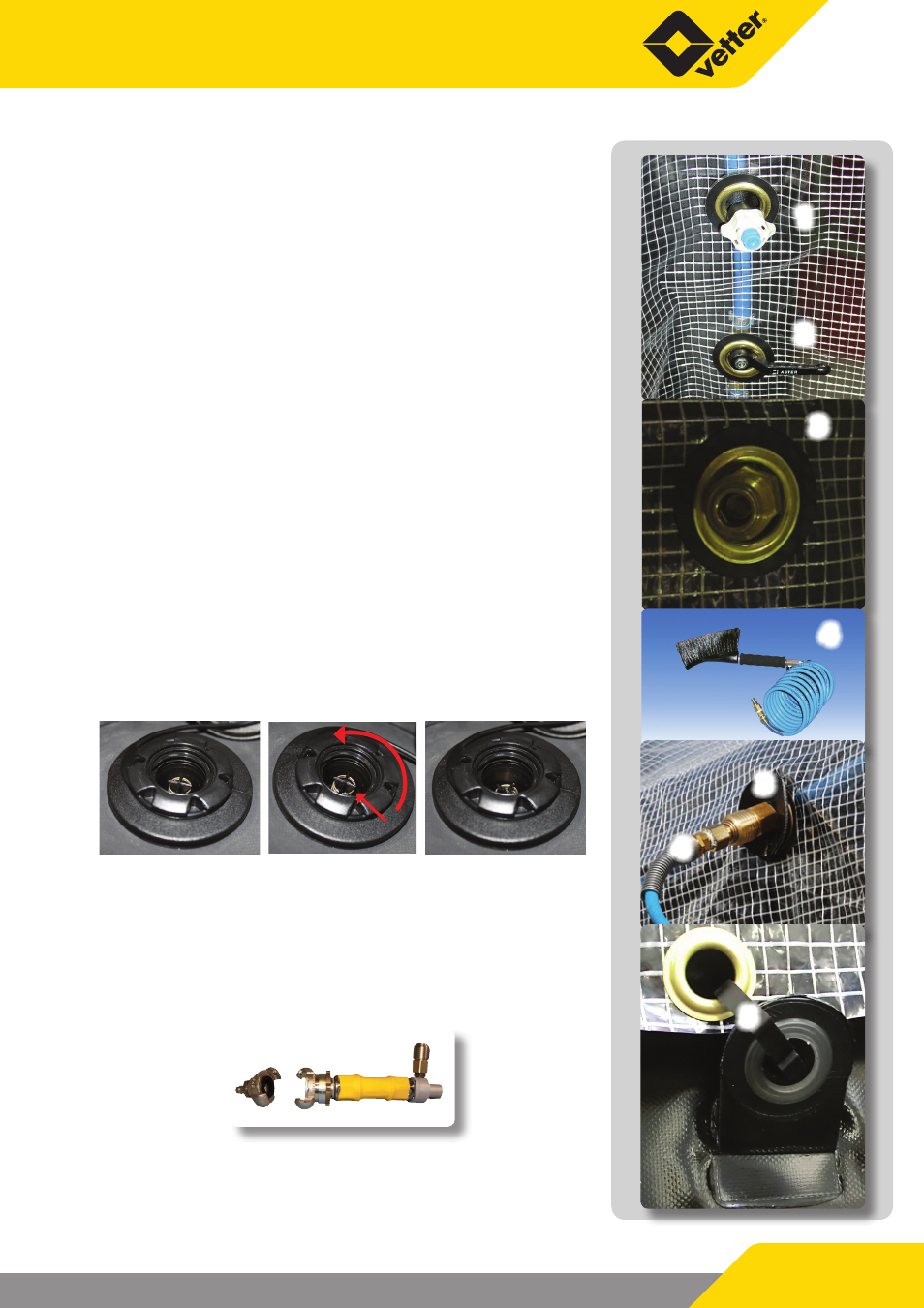

3.3 Handling of the shower
max. water temperature: 45° C
max. water pressure: 10 bar/145 psi
The required amount of water for the 8 shower jets (1) attached
to the support frame can be regulated via the ball valve (2). The
shower jets can be swivelled within the plastic holder ring.
Turn the grey securing ring counter-clockwise in order to change
the shower curtain. Remove the shower nozzle together with the
O-ring seal and replace the shower curtain by separating the Vel-
cro and pile fabric connection on the vertical support hose and
unhooking the eyelets (5) on the insertion basin. The assembly
happens in reversed order.
There is a quick-snap coupling in the upper area of the show-
er hood which additionally enables connection of a hand wash
brush (4). For this purpose push the connecting nipple into the
self-locking quick-snap coupling (3), until it locks perceptible.
3.4 Deflation and Packing
The deflation of the support frame happens over the inflation
connection. To deflate the tent, close the air source (compressed
air cylinder, etc.) and disconnect the pressure reducer or the filling
hose of the blower. The deflation valve is opened by pressing-in
and turning the pin (1) counter clockwise.
1
Pin before locking Pressing-in + turning Valve open
Fold the shower in the way, that the air can escape (Folding to the
direction of the inflation connection).
Any remaining air can be removed with a vacuum adaptor (Item
No.: 1700018300) in combination with an construction-site com-
pressor adaptor (Item No.: 1600012000).
2 1 3
Connect the construction-site compressor adaptor (1) to the cou-
pling of the vacuum adaptor (2) and turn it interlocking. Then
tighten the screwable part of t the vacuum adaptor.
2
1
3
4
3
4
5
