Vetter Decon Showers 0.3 bar/4.35 psi
Page 3/7
3. Operating Instructions
Open the packing cover. Lay out the shower at the required loca-
tion. The ground area must be free of any sharp-edged or pointed
objects!
The pneumatic 0.3 bar Decon showers are designed to be inflated
with a blower or with compressed air.

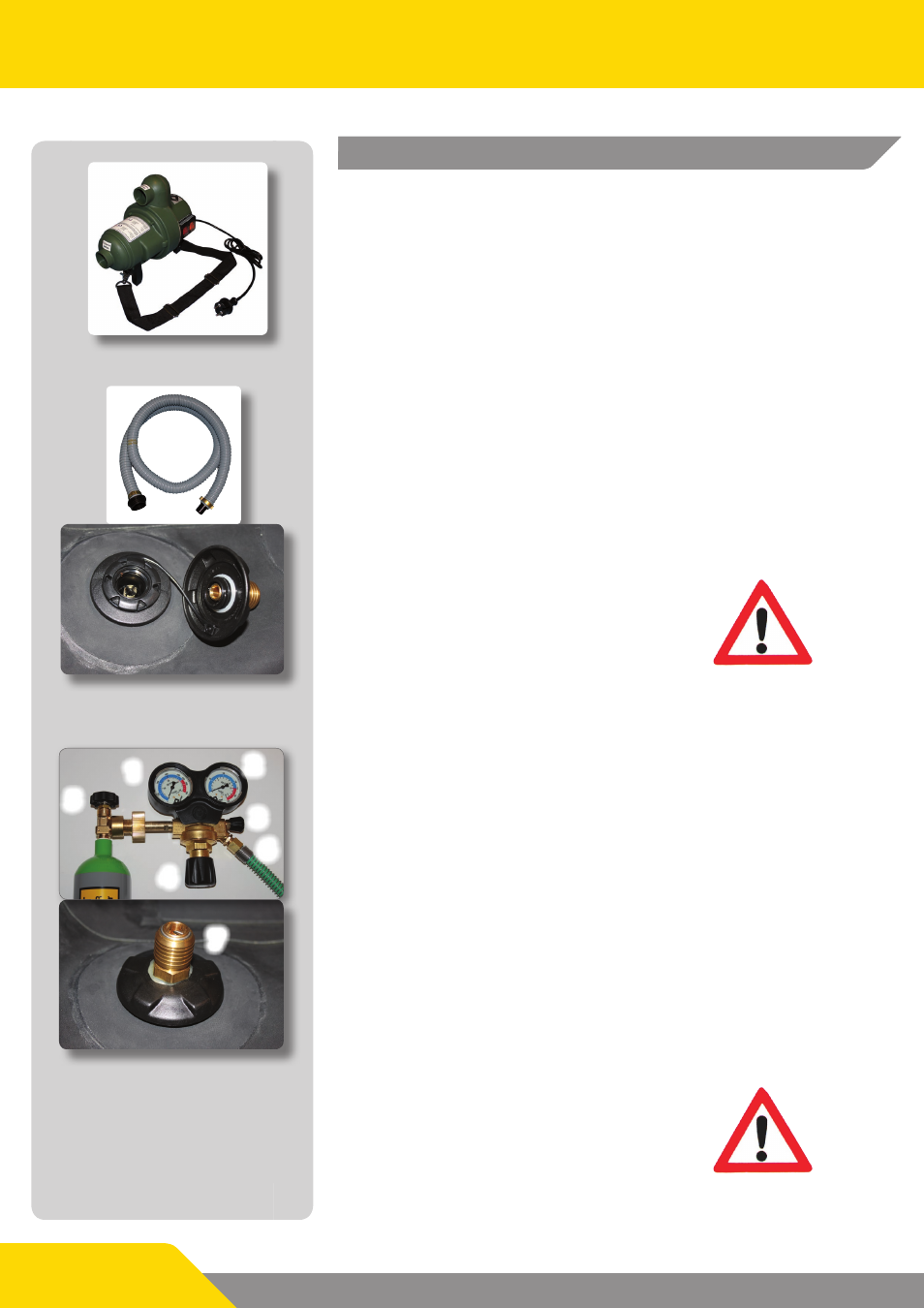

3.1 Operation with blower
The inflation connection for blowers is opened when air flows
through. Connect the inflation hose of the blower to the inflation
connection of the shower. Make certain there is perfect locking of
the couplings of the inflation hose with the shower coupling and
the blower.
Start the blower and fill the shower until the maximum permitted
operating pressure of 0.3 bar/4.35 psi. The decon shower erects
automatically. The safety valve integrated into the support frame
avoids over-inflation (greater than 0.3 bar/4.35 psi).
Note! Should parts of the support frame
become caught up during erection
then switch off the blower immediately
and rectify the problem. Inflation can
then be continued after doing this.
3.2 Operation with compressed air
Connect the pressure regulator with the knurled wheel on the
compressed air bottle. Close the hand wheel (3) of the pressure
regulator. Open the valve on the bottle (5). The manometer (1) in-
dicates the pressure in the bottle. Adjust the back-pressure to ap-
proximately 10 bar using the adjustment wheel (4). The set pres-
sure can be checked on the back-pressure manometer (2).
Connect the air hose of the pressure regulator (6) with the brass
coupling (7) of the inflation connection.
Open the pressure regulator and start inflation. Observe the
shower during the inflation process. Close the hand valve when
the operating pressure of 0.3 bar/4.35 psi is reached.
The decon shower erects automatically. The safety valve integra-
ted into the support frame avoids over-inflation (greater than 0.3
bar/4.35 psi).
Note! Should parts of the support frame
become caught up during erection then
close the valve of the pressure regulator
immediately and rectify the problem.
Inflation can then be continued after doing this.
eg. Tent blower 0.23-0.47 bar
(Art. no. 1523017700)
7
5
1
2
3
4
6
