2 & 5 Stitch Pattern
Machines

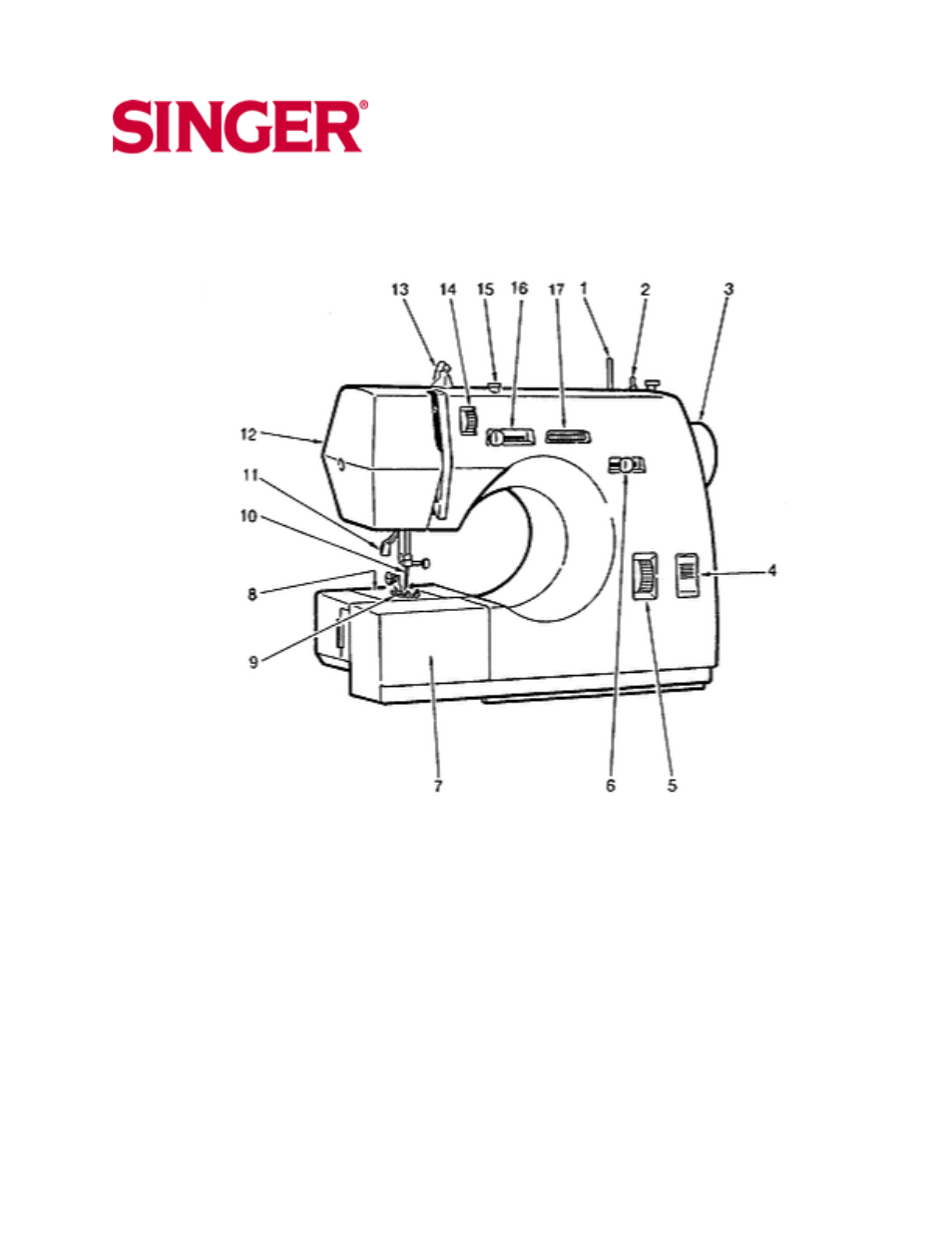

PRINCIPAL PARTS
1. Spool pin
2. Bobbin winder
3. Handwheel
4. Reverse button
5. Stitch length dial
6. Needle position
selector
7. Extension table
8. Needle plate
9. Presser foot
10. Needle
11. Presser foot lifter
12. Face plate
13. Thread guide
14. Tension dial
15. Bobbin winder
tension disc
16. Stitch width lever
17. Pattern selector
6
