ATTENTION!
Malfunction due to installation errors
If no spacer washers are used, the head slide
will be trapped against the wall. This will make it
impossible to measure height.
 Ensure that at least 1 spacer washer per
screw is used.

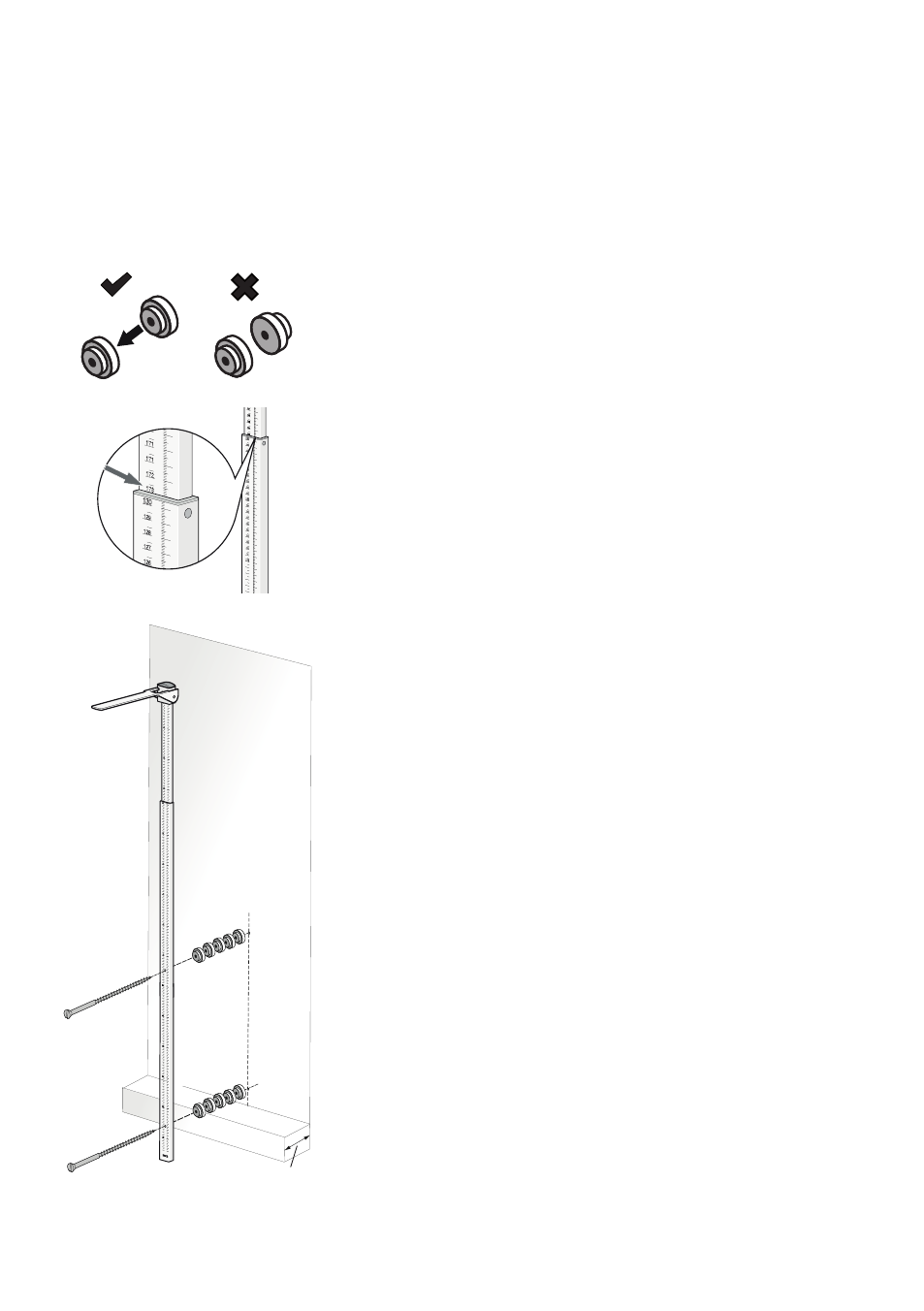

3. Put the appropriate number of spacer washers rea-
dy:
– 1 spacer washer = 1.2 cm
– Every subsequent spacer washer: + 0.7 cm
– 5 spacer washers = 4.0 cm
4. Pull the upper telescopic element out to the 173 cm
mark.
The holes in the lower telescopic element are expo-
sed.
5. Put a screw in the top bore of the measuring rod.
6. Put the appropriate number of spacer washers on
the screw (the illustration shows attachment option
II).
7. Screw measuring rod to wall hand-tight.
8. Repeat steps 5. to 7. for the bottom bore.
9. Tighten up both screws fully.
173 cm
max = 4,0 cm
max = 5
max = 5
min = 1
min = 1
