Oldcastle BuildingEnvelope Standard Door and Frame - Manual (Page 16)

8"
9 1/2"
7"
A
A
B B
GLASS
JACK
PIVOT OR
HINGE STILE

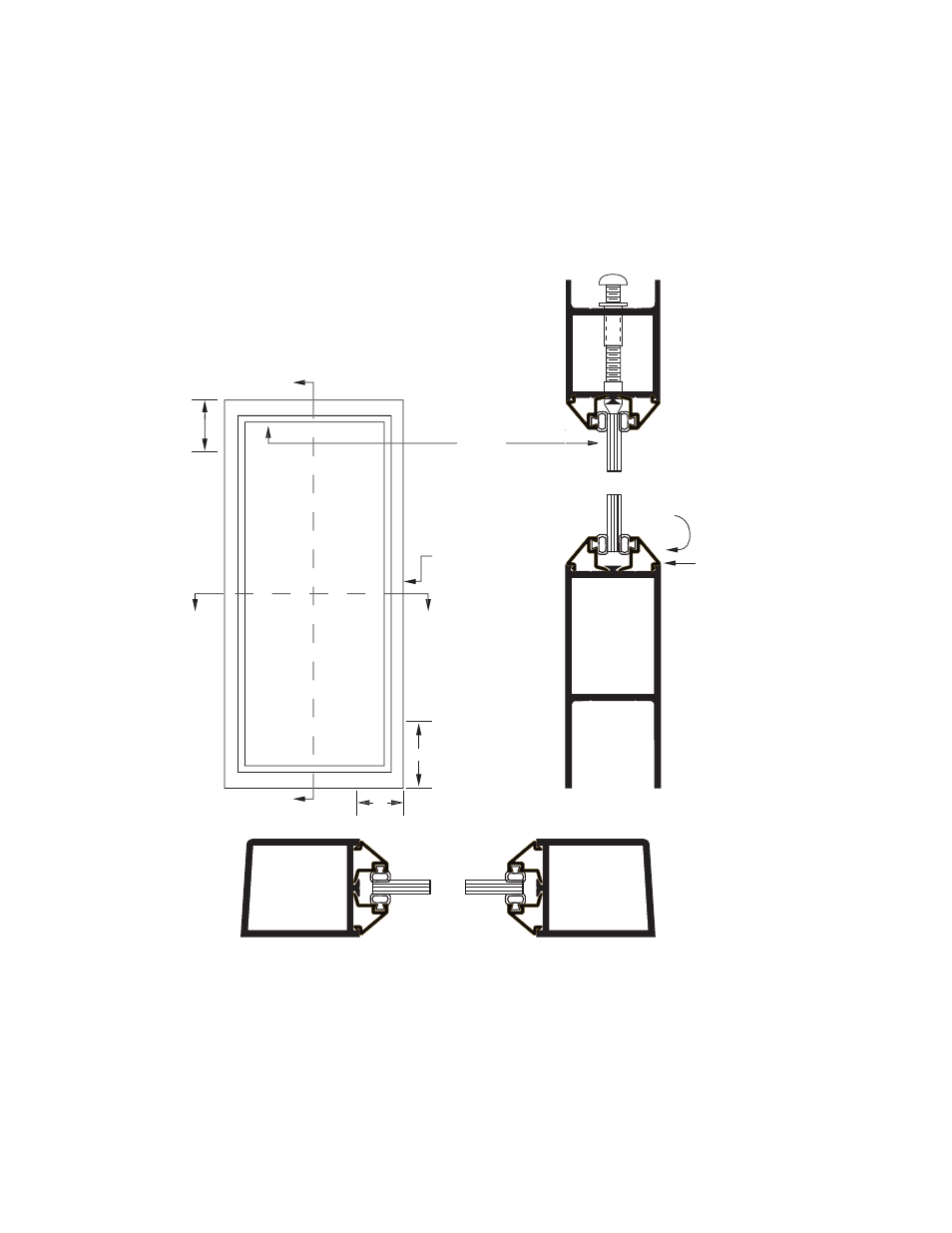

SECTION A-A
SECTION B-B
NOTE: SETTING BLOCK LOCATIONS MAY VARY BY +/- 1"
ROLL IN
HEEL OF STOP
16 MAY 2012
D O O R & F R A M E I N S T A L L A T I O N M A N U A L
